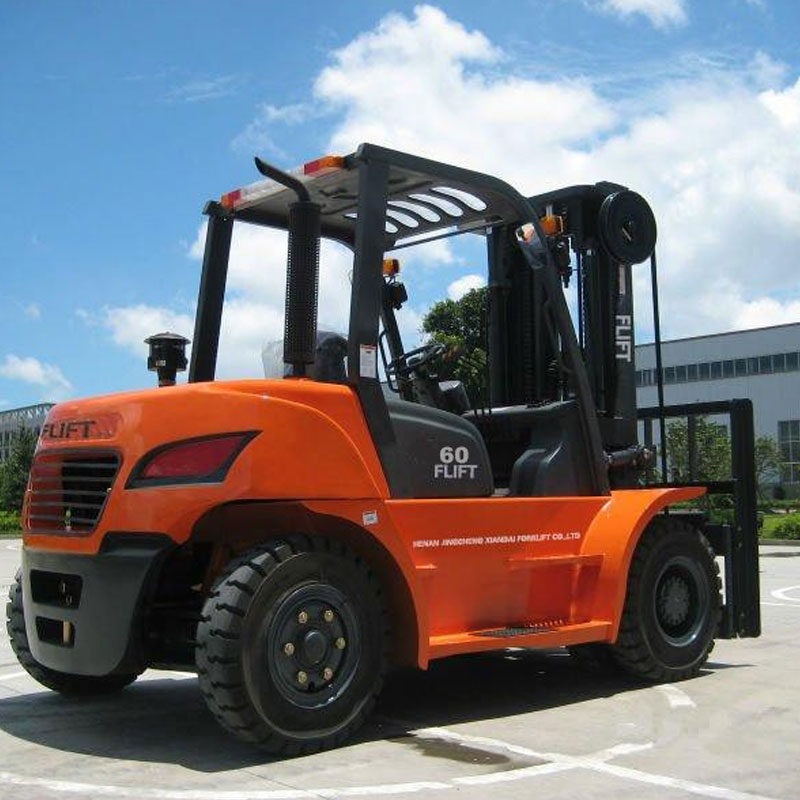

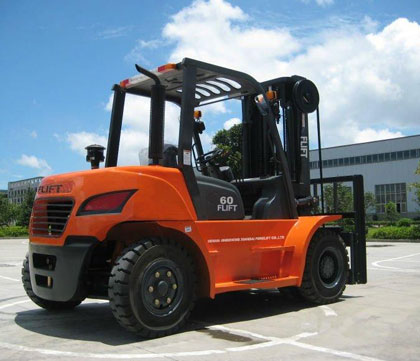

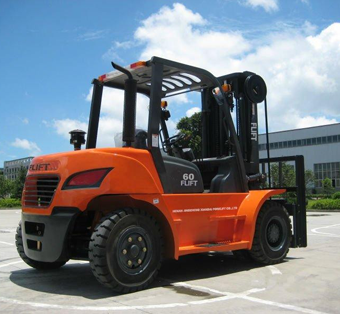

6 Ton Diesel Forklift
ModelFD50,FD60,FD70
Capacity5000kg,6000kg, 7000kg
Load center600mm
Lift height3000mm
Fork size(LxWxH)1220x150x60mm,1220x150x60mm,1220x150x70mm
We're here to help:Easy ways to get the answers you need.
- 6 Ton Diesel Forklift
- Double air filter system (pre-filter and air-filter) Excellent performance makes goodsense forklift to be the prior choice for clients.
| Technical Parameters | |||||||
| Model | FD40 | FD50 | FD60 | FD70 | FD100 | FD120 | |
| Brand(OEM acceptable) | FLIFT | FLIFT | FLIFT | FLIFT | FLIFT | FLIFT | |
| Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | |
| Capacity | kg | 4000 | 5000 | 6000 | 7000 | 10000 | 12000 |
| Load center | mm | 500 | 600 | 600 | 600 | 600 | 600 |
| Lift height（Duplex wide-view） | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Fork size(LxWxH) | mm | 1070*150*50 | 1220*150*60 | 1220*150*60 | 1220*150*70 | 1520*175*85 | 1520*180*100 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length to face of fork | mm | 3220 | 3450 | 3450 | 3560 | 4280 | 4700 |
| Overall width | mm | 1480 | 2010 | 2010 | 2010 | 2170 | 2200 |
| Mast lowered height | mm | 2350 | 2500 | 2500 | 2500 | 2850 | 3100 |
| Mast extended height | mm | 4250 | 4380 | 4380 | 4380 | 4300 | 4540 |
| Overhead guard height | mm | 2320 | 2470 | 2470 | 2470 | 2570 | 2590 |
| Turning radius | mm | 2900 | 3250 | 3250 | 3350 | 3970 | 4700 |
| Min. right angle aisle width | mm | 2920 | 2960 | 2960 | 3040 | 3590 | 4200 |
| Front overhang | mm | 570 | 590 | 590 | 595 | 750 | 770 |
| Ground clearance | mm | 160 | 200 | 200 | 200 | 240 | 250 |
| Wheelbase | mm | 2100 | 2250 | 2250 | 2250 | 2800 | 3200 |
| Travel (no load) | km/h | 19 | 26 | 26 | 26 | 30 | 28 |
| Lifting (full load) | mm/s | 460 | 500 | 500 | 460 | 270 | 280 |
| Gradeability(laden) | % | 20 | 20 | 20 | 20 | 20 | 20 |
| Service weight | kg | 6450 | 8550 | 9150 | 9750 | 13100 | 124500 |
| Front tire | 300-15-18PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20 | |
| Rear tire | 7.00-12-12PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20 | |
| Battery (voltage/capacity) | v/ah | (12V/80Ah) | (12V/80Ah)*2 | (12V/80Ah)*2 | (12V/80Ah)*2 | (12V/80Ah)*2 | (12V/80Ah)*2 |
| Engine model | A498BPG-571 | ISUZU-6BG1 | ISUZU-6BG1 | ISUZU-6BG1 | ISUZU-6BG1 | Cummins-6BT5.9-C130 | |
| Engine rated output/r.p.m | kw | 45/2500 | 82.3/2000 | 82.3/2000 | 82.3/2000 | 82.3/2000 | 97/2000 |
| Engine rated torque/r.p.m. | n.m | 193/1600-1800 | 416/1400-1600 | 416/1400-1600 | 416/1400-1600 | 416/1400-1600 | 560/1500 |
| Engine No.of Cylinder | 4 | 6 | 6 | 6 | 6 | 6 | |
| Bore x stroke | mm | 98x105 | 105x125 | 105x125 | 105x125 | 105X125 | 102X120 |
| Displacement | cc | 3170 | 6494 | 6494 | 6494 | 6494 | 5900 |
| Fuel tank capacity | L | 60 | 140 | 140 | 140 | 140 | 150 |
FEATURES
Large ton internal combustion forklift
Character:
1.Scientific ergonomics design
2.Adjustable safety seat
3.Wide-view mast
4.High- mount exhaust system
5.Flexible steering system
6.Power-assisted brake
7.Optimal heat radiating& air duct system
8.Hydraulic transmission system
9.Easy available toolbox
10.Maintenance-free imported battery
11.Double air filter system (pre-filter and air-filter)
Excellent performance makes goodsense forklift to be the prior choice for clients.
