- 1 Ton LPG
- By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
|Mast tilt angle(F/R)||Deg||6°/12°||6°/12°||6°/12°|
|Length to face of fork||mm||2215||2295||2295|
|Mast lowered height||mm||1995||1995||1995|
|Mast extended height||mm||3940||3940||3940|
|Overhead guard height||mm||2040||2040||2040|
|Travel (no load)||km/h||15||15||15|
|Lifting (full load)||mm/s||460||450||440|
|Battery (voltage/capacity)||v/ah||12/ 80||12/ 80||12/ 80|
|Engine rated output/r.p.m||kw||31.2/2250||31.2/2250||31.2/2250|
|Engine rated torque/r.p.m.||n.m||143.7/1600||143.7/1600||143.7/1600|
|Engine No. of cylinder||4||4||4|
|Bore x stroke||mm||89x83||89x83||89x83|
|Fuel tank capacity||L||45||45||45|

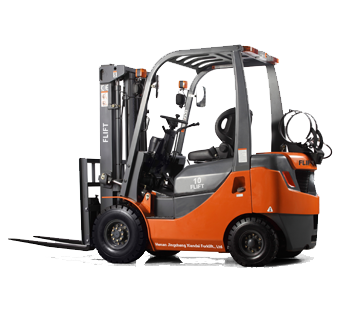

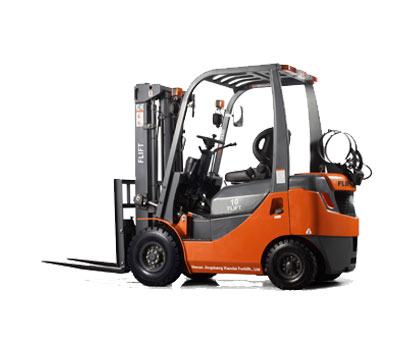

Small ton internal combustion forklift
1.Strong power system
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
