  • 2 Ton LPG
  • 2 Ton LPG
  • 2 Ton LPG

2 Ton LPG

ModelFY20,FY25

Capacity2000kg,2500kg

Load center500mm

Lift height3000mm

Fork size(LxWxH)1070x120x40mm

We're here to help:Easy ways to get the answers you need.

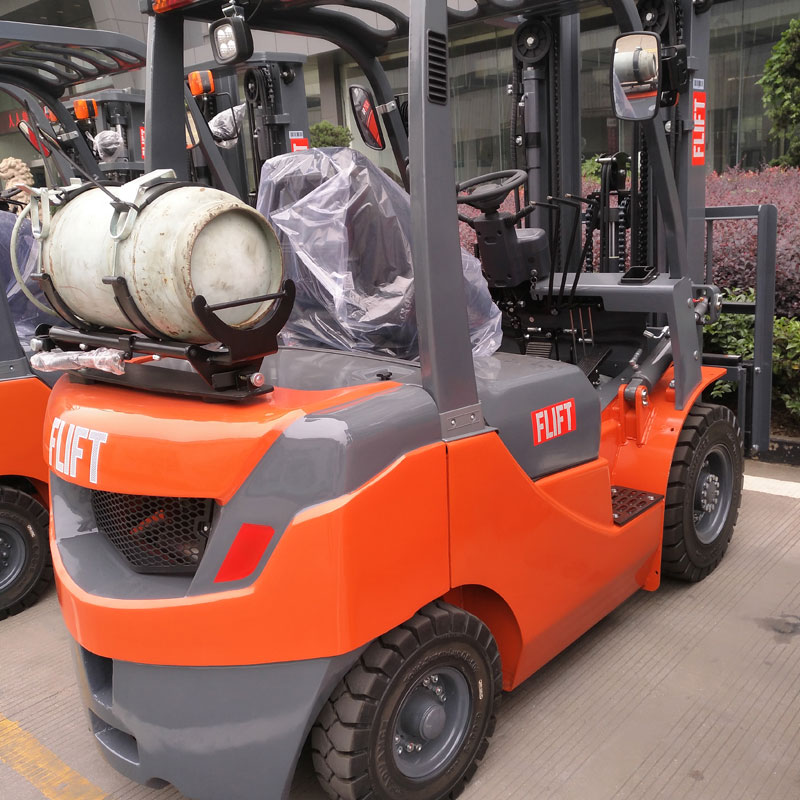

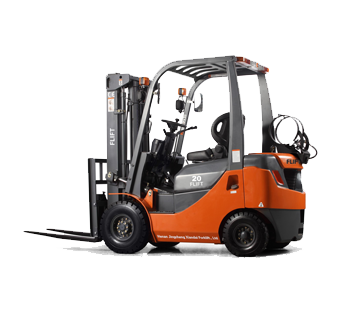

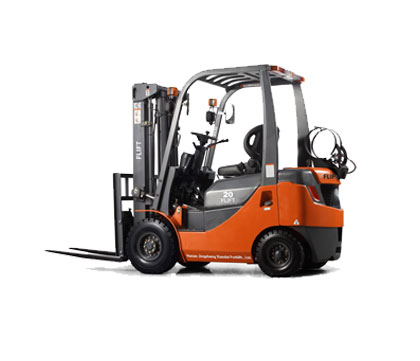

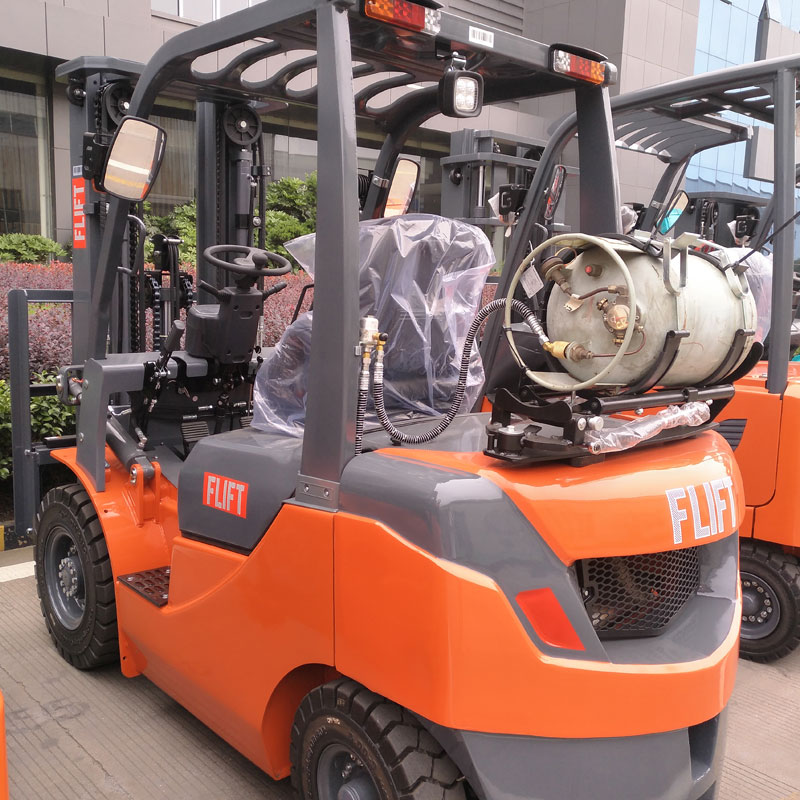

2 Ton LPG
By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

Technical Parameters

Model   FY20 FY25
Capacity kg 2000 2500
Load center mm 500 500
Lift height mm 3000 3000
Fork size(LxWxH) mm 1070x120x40 1070x120x40
Mast tilt angle(F/R) Deg 6°/12° 6°/12°
Length to face of fork mm 2600 2600
Overall width mm 1150 1150
Mast lowered height mm 2055 2055
Mast extended height mm 4050 4050
Overhead guard height mm 2070 2070
Turning radius mm 2310 2310
Front overhang mm 470 470
Ground clearance mm 120 120
Wheelbase mm 1600 1600
Travel (no load) km/h 19 19
Lifting (full load) mm/s 530 530
Gradeability(laden) % 20 20
Service weight kg 3560 3700
Front tire   7.00-12-12PR 7.00-12-12PR
Rear tire   6.00-9-10PR 6.00-9-10PR
Battery (voltage/capacity) v/ah 12/ 80 12/ 80
Engine model   k25 k25
Engine rated output/r.p.m kw 37.4/2300 37.4/2300
Engine rated torque/r.p.m. n.m 176.5/1600 176.5/1600
Engine No. of cylinder   4 4
Bore x stroke mm 89x100 89x100
Displacement cc 2488 2488
Fuel tank capacity L 60 60

FEATURES

Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
