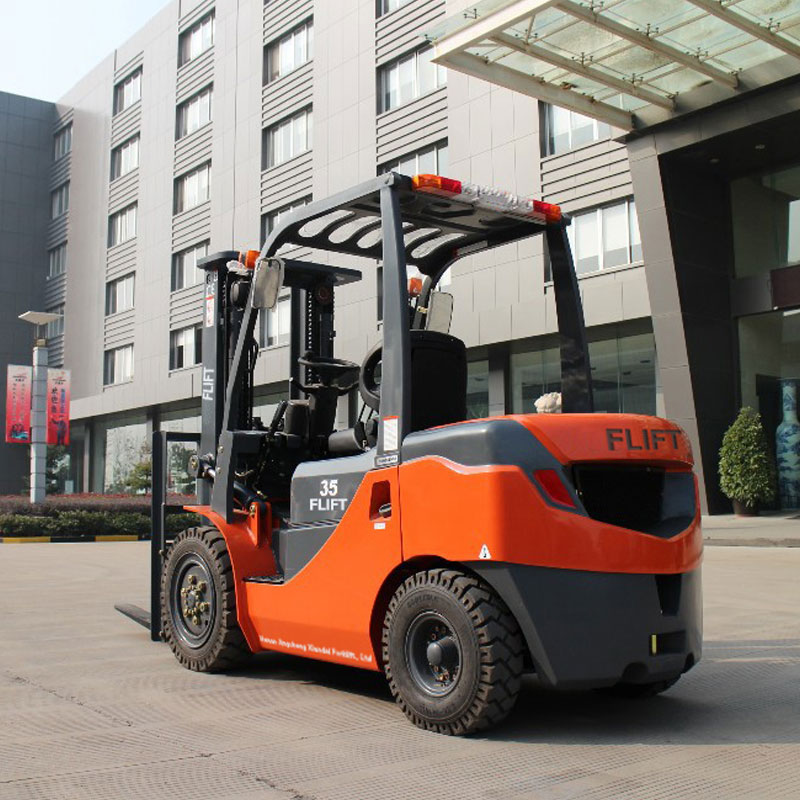

3.5 Ton Gasoline Forklift

ModelFY30,FY35

Capacity3000kg,3500kg

Load center500mm

Lift height3000mm

Fork size(LxWxH)1070x125x45mm

We're here to help:Easy ways to get the answers you need.

3.5 Ton Gasoline Forklift
By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

Technical Parameters

Model   FY30 FY35
Capacity kg 3000 3500
Load center mm 500 500
Lift height mm 3000 3000
Fork size(LxWxH) mm 1070x125x45 1070x125x45
Mast tilt angle(F/R) Deg 6°/12° 6°/12°
Length to face of fork mm 2730 2770
Overall width mm 1225 1225
Mast lowered height mm 2115 2115
Mast extended height mm 4160 4160
Overhead guard height mm 2090 2090
Turning radius mm 2440 2480
Front overhang mm 475 480
Ground clearance mm 135 135
Wheelbase mm 1700 1700
Travel (no load) km/h 19 19
Lifting (full load) mm/s 440 420
Gradeability(laden) % 20 20
Service weight kg 4300 4500
Front tire   28x9-15-12PR 28x9-15-12PR
Rear tire   6.50-10-10PR 6.50-10-10PR
Battery (voltage/capacity) v/ah 12/ 80 12/ 80
Engine model   k25 k25
Engine rated output/r.p.m kw 37.4/2300 37.4/2300
Engine rated torque/r.p.m. n.m 176.5/1600 176.5/1600
Engine No. of cylinder   4 4
Bore x stroke mm 89x100 89x100
Displacement cc 2488 2488
Fuel tank capacity L 60 60

FEATURES

Small ton internal combustion forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
