  • 7 Ton Gasoline Forklift

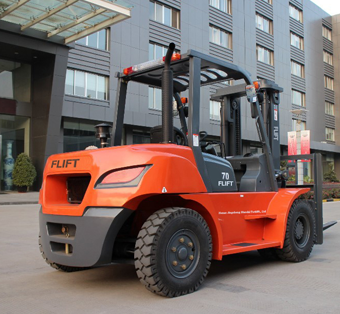

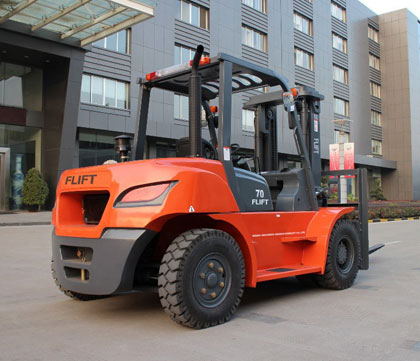

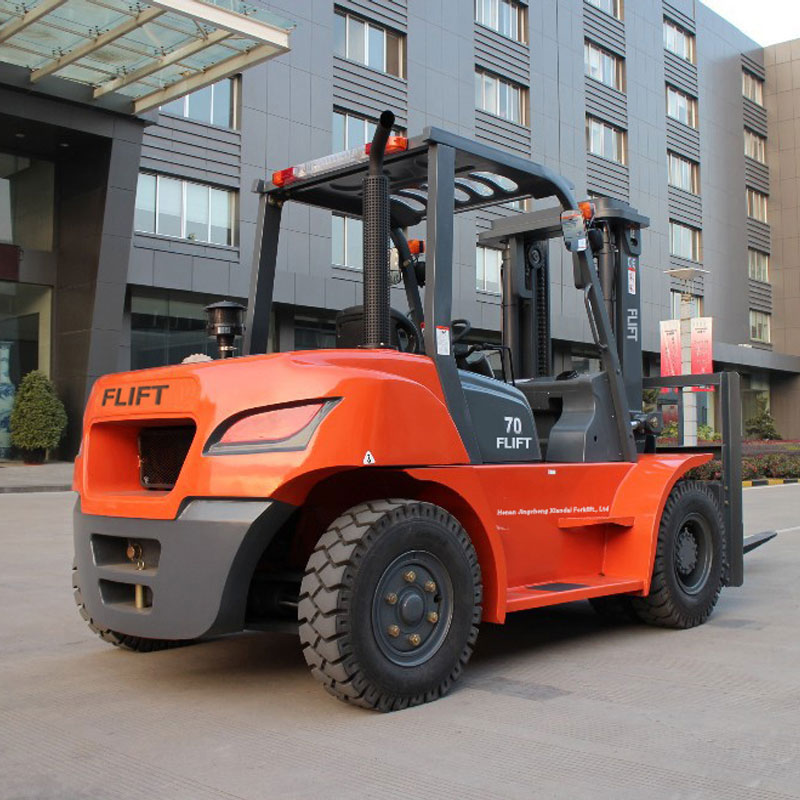

7 Ton Gasoline Forklift

ModelFY50,FY60,FY70

Capacity5000kg,6000kg,7000kg

Load center600mm

Lift height3000mm

Fork size(LxWxH)1220x150x60mm

We're here to help:Easy ways to get the answers you need.

7 Ton Gasoline Forklift
11.Double air filter system (pre-filter and air-filter)
Excellent performance makes FLIFT forklift to be the prior choice for clients.

Technical Parameters

Model   FY50 FY60 FY70
Capacity kg 5000 6000 7000
Load center mm 600 600 600
Lift height mm 3000 3000 3000
Fork size(LxWxH) mm 1220x150x60 1220x150x60 1220x150x70
Mast tilt angle(F/R) Deg 6°/12° 6°/12° 6°/12°
Length to face of fork mm 3450 3450 3450
Overall width mm 2010 2010 2010
Mast lowered height mm 2500 2500 2500
Mast extended height mm 4380 4380 4380
Overhead guard height mm 2470 2470 2470
Turning radius mm 3250 3250 3350
Front overhang mm 590 590 595
Ground clearance mm 200 200 200
Wheelbase mm 2250 2250 2250
Travel (no load) km/h 30 30 30
Lifting (full load) mm/s 500 500 460
Gradeability(laden) % 20 20 20
Service weight kg 9750 9750 9750
Front tire   8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Rear tire   8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Battery (voltage/capacity) v/ah (12/ 80)X2 (12/ 80)X2 (12/ 80)X2
Engine model   GM4.3L GM4.3L GM4.3L
Engine rated output/r.p.m kw 56/2200 56/2200 56/2200
Engine rated torque/r.p.m. n.m 240/750 240/750 240/750
Engine No. of cylinder   6 6 6
Bore x stroke mm 101.6x88.39 101.6x88.39 101.6x88.39
Displacement cc 4300 4300 4300
Fuel tank capacity L 140 140 140

FEATURES

Small ton internal combustion forklift
Character:
1.Scientific ergonomics design
2.Adjustable safety seat
3.Wide-view mast
4.High- mount exhaust system
5.Flexible steering system
6.Power-assisted brake
7.Optimal heat radiating& air duct system
8.Hydraulic transmission system
9.Easy available toolbox
10.Maintenance-free imported battery
11.Double air filter system (pre-filter and air-filter)
Excellent performance makes FLIFT forklift to be the prior choice for clients.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
