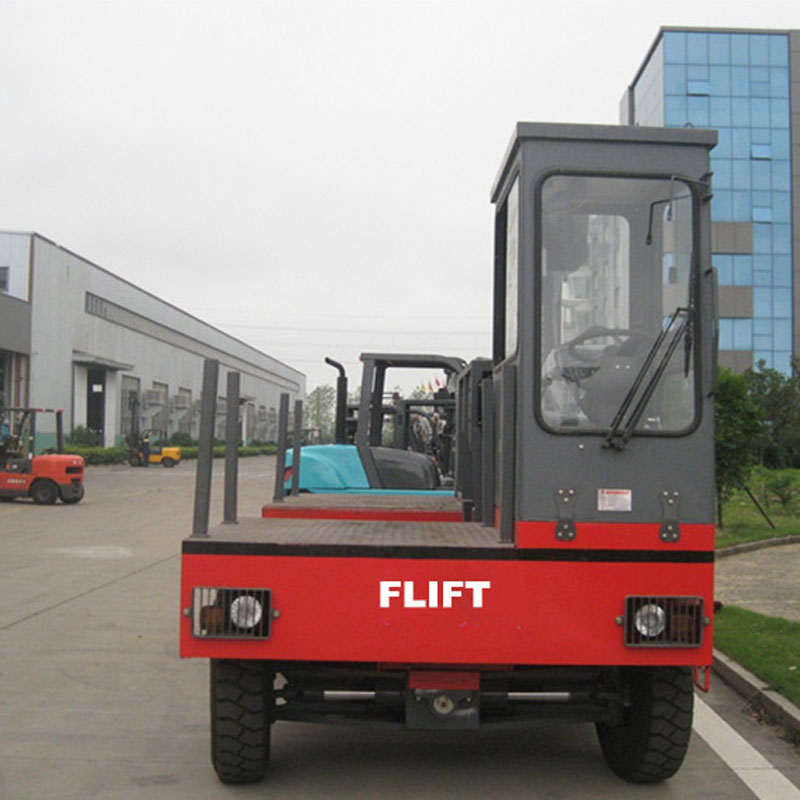

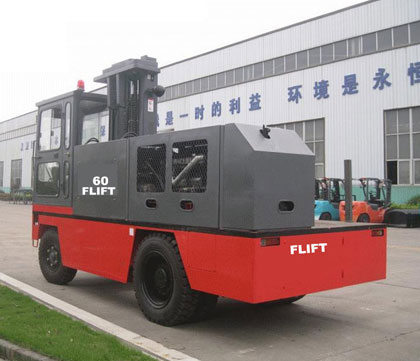

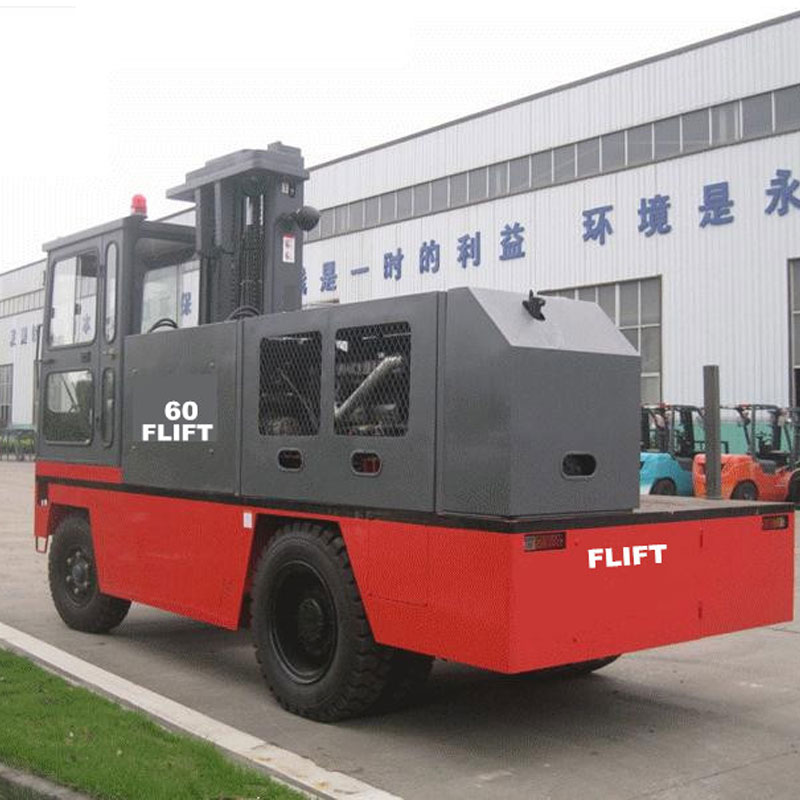

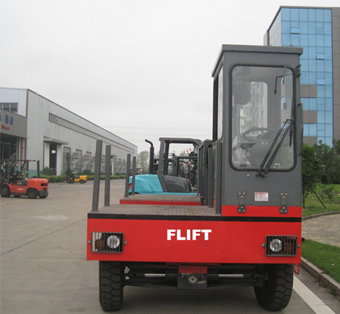

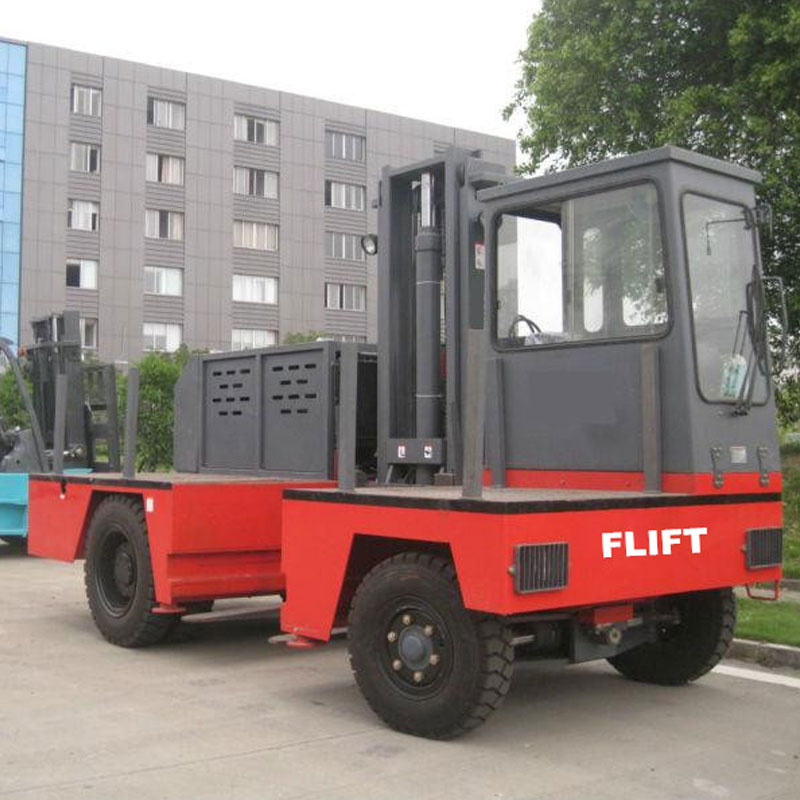

6 Ton Diesel Side Loader

ModelFDS30,FDS50,FDS60,FDS100

Power typediesel

Rated capacity3000kg,5000kg,6000kg,10000kg

Load center500mm,600mm

Lift height3600mm

We're here to help:Easy ways to get the answers you need.

6 Ton Diesel Side Loader
Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;

Technical Parameters

general Model   FDS30 FDS50 FDS60 FDS100
Power type   diesel diesel diesel diesel
Rated capacity kg 3000 5000 6000 10000
Load center mm 500 600 600 600
characteristic&dimension Lift height mm 3600 3600 3600 3600
Fork size L*W*T mm 1070x125x45 1220x160x60 1220x150x60 1220x175x85
Mast tilt angle F/R deg 6°/6° 3°/5° 3°/5° 6°/6°
Front overhang(wheel center to fork face) mm 700 700 700 800
Ground clearance(bottom of mast) mm 160 205 205 160
overall dimension L*W*T mm 4555x2000x2460 5180x2100x2950 5180x2100x2950 6250x2620x3240
platform width mm 1200 1300 1300 1800
platform length mm 4555 5180 5180 6250
overhead guard height mm 2460 2660 2660 2820
Turning radius(outside) mm 4250 4250 4250 5650
performance speed Travel(empty load) km/h 17 18 18 14
Lifting(full load) mm/s 310 250 230 350
Max. gradeability % 20 20 20 20
chassis Tire Front   2x28x9-15-12PR 2X8.25-15-14PR 2X8.25-15-14PR 2X9.00-20-14PR
Rear   2x28x9-15-12PR 4X8.25-15-14PR 4X8.25-15-14PR 4X9.00-20-14PR
wheelbase mm 2550 2800 2800 3600
service weight kg 2590 8300 8700 15800
power&transmission battery voltage/capacity v/ah 12/ 80 (12/ 80)x2 (12/ 80)x2 (12/ 80)x2
engine model   A498BPG-78 6BG1 6BG1 CY6102BZG-B46
manufacture   XINCHAI ISUZU ISUZU CHAOCHAI
rated output/r.p.m. kw 45/2500 82.4/2000 82.4/2000 84.6/2500
rated torque/r.p.m. n.m 193/1800 416/1400-1600 416/1400-1600 430/1500-1700
no. of cylinder   4 6 6 6
bore x stroke mm 98X105 105X125 105X125 102X118
displacement cc 3168 6494 6494 5785
fuel tank capacity L 75 170 170 260
transmission type   hydraulic hydraulic hydraulic hydraulic
stage FED/RVS   1/1 2/2 2/2 2/2
operating pressure for attachment Mpa 14 15 15 19

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
5.Solid Overhead Guard -- specially designed for additional security;
6.Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.

Applications

Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
