aisle forklift, articulated narrow aisle forklift, articulated reach truck

Technical Parameters

Articulated Narrow Aisle forklift trucks Specifications
Standard	Manufacturer	FLIFT	FLIFT
	Model	MJ20SQC	MJ20SQCH
	Power type	Battery	Battery
	Driving style	Driving style	Driving style
	Rated Load	2000 kg	2000 kg
	Load Center Distance	600 mm	600 mm
	Front Suspension	320 mm	320 mm
	Wheelbase	1759 mm	1759 mm
	Vehicle weight	6800 kg	7100 kg
Tyre	Tire type(drive/load side)	Solid rubber tire	Solid rubber tire
	Tire Size(load-bearing side)	Ф457*178 mm	Ф457*178 mm
	Tire Size,drive side	Ф457*178 mm	Ф457*178 mm
	Number of wheels	2x/2	2x/2
	Track width,drive side	800 mm	800 mm
	Track width,load bearing side	1090 mm	1270 mm
Size	Gantry tilt angle,front/rear	1/3	1/3
	Rated Lifting height	3300 mm	3300 mm
	Lifting height	4600-10000 mm	4600-12500 mm
	Height of roof guard	2255 mm	2255 mm
	Seat height	1230 mm	1230 mm
	Vehicle Length	3870 mm	3870 mm
	Length to fork face	2800 mm	2800 mm
	Vehicle width	980/1270 mm	980/1450 mm
	Fork size	1070/122/40 mm	1070/122/40 mm
	Installation Level	II	II
	Fork rack width	990 mm	990 mm
	Fork outside distance	480-890 mm	480-890 mm
	Lateral displacement	100	100
	Ground Clearance of portal fame	70 mm	70 mm
	Body Ground Clearance	100 mm	100 mm
	Turning Radius	2300 mm	2300 mm
Performance	Travel Speed(full/no load)	12/13 km/h	12/13 km/h
	Maximum Climbung capacity	12/15%	12/15%
	Braking mode	Mechanical hydraulic type	Mechanical hydraulic type
Drive	Battery(Voltage/Capacity)	48V/900Ah	48V/900Ah
	Steering system	Hydraulic pressure	Hydraulic pressure
	Battery weight	1410 kg	1410 kg

1. Cost Saving

AC system can enhance the performance level of articulated forklift,
increase pallet stacking quantity, improve productivity, improve acceleration and climbing ability.
In addition, the maintenance is simple, the cost is low, and the downtime is reduced.

The hydraulic system is equipped with side shift and fork distance adjustment operation,
which effectively improves the operation convenience and operation efficiency.

2. Performance

AC motor maintenance free, no carbon brush replacement and other maintenance costs,
AC power system high efficiency,complete protection functions, with speed sensor,temperature sensor, high reliability and long life.

In addition, the active driver on-the-spot safety monitoring system is configured to effectively improve the operation safety.

The configuration of high brightness laser lamp can provide reliable reference for the operation in narrow roadway and ensure the safety of operation.

3. Safe

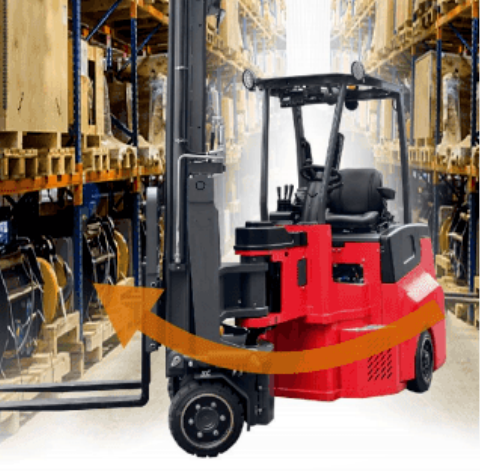

Large angle gantry swing angle design(swing head angle up to 210 degrees),
to a greater extent,reduce the channel width and improve the storage capacity.
LED headlamp, turn signal , warning light, low consumption,
energy saving, safe and reliable, providing good lighting and warning at night.
The ultra-low roof guard design can meet the working conditions of ordinary container and limited space.

4. Comfortable

With the new concept and new streamline design,
the visual effect is improved. The vehicle is compact,simple and reliable.

The driving motor adopts the advanced horizontal parallel layout scheme,
which sinks the battery to the bottom of the vehicle, with low center of gravity, good stability,
excellent turning smoothness and driving comfort

The whole system adopts wide field of vision gantry design,
which is not easy to block the line of sight, and provides the operator with a wide field of vision.

The scientific ergonomic design of steering wheel angle is adjustable,
and the seat is adjustable in front and back providing the best driving position.

5. Convenient

The international advanced MOSFET AC controller system enables
the forklift to move, turn,lift and tilt with computer program control.

Large angle fully opened hood and removable rear door panel.
Convenient battery replacement and maintenance.

►High usability

► Work inside and outside warehouse capacity

► Narrow roadway, intensive storage, high storage capacity

► Stacking goods on high shelves

It can be used both inside and outside the library.
It is easy to use, both indoors and outdoors, and the operator
only needs an articulated forklift you move goods from the trailer to the shelf,
thanks to large rubber tires, operators can easily load and unload on semi-rough terrain
while enjoying a smooth ride, no matter the terrain.

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
