Storage Battery, Standing type, Rated Capacity 2000kg

technology parameters

FLIFT CQD10A/15A/20A Reach Forklift Trucks (Simple Type)
Model		CQD15A	CQD20A
Dynamic Type		Storage Battery	Storage Battery
Operation Type		Standing type	Standing type
Rated Capacity	kg	1500	2000
Load Center	mm	500	500
Front Overhang	mm	145	145
Wheel Base	mm	1400	1500
Overall Weight	kg	2000	2150
Tyre type		PU	PU
Wheel Bearing	mm	Φ210*85	Φ210*85
Driving Wheel	mm	Φ230*75	Φ230*75
Auxiliary Wheel	mm	Φ130*55	Φ130*55
Tread (Driving side)	mm	684	684
Tread (Bearing side)	mm	990	990
Mast Lowered Height	mm	1830	1830
Free Lifting Height	mm	/	/
Mast Tilt Angle		3°/5°	3°/5°
Lifting Height	mm	2500	2500
Mast Extended Height	mm	3485	3485
Standing plate height	mm	195	195
Landing leg Height	mm	235	235
Overall length (Pedal extended/retracted)	mm	2345/2850	2445/2950
Overall Width	mm	900/1084	900/1084
Fork Size	mm	1070/100/35	1070/122/40
Backrest width	mm	1000	1000
Fork outside width	mm	240-700	240-700
Inside Distance of Landing leg	mm	802	802
Forward distance	mm	450	550
Ground Clearance (bottom mast)	mm	70	70
Turning radius	mm	1670/2100	1785/2200
Driving Speed (Full Load/no load)	Km/h	4.0/5.5	4.0/5.5
Lifting speed (Full Load/no load)	mm/s	80/150	75/150
Descend speed (Full Load/no load)	mm/s	200/105	240/105
Gradeability(S2-5) Full/no load	%	5%/10%	5%/8%
Braking type		Electromagnetic type	Electromagnetic type
Driving motor capacity	kw	1.5	2.2
Lifting motor capacity	kw	3	3
Storage Battery Voltage/Capacity	V/AH	24/210	24/210
Battery Weight	kg	200	200
Steering System		Electronic steering	Electronic steering
Braking System		Electromagnetic brake	Electromagnetic brake

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Double cylinders, wide view frame, fork forward tilt back, multi-function handle.
5.electronic steering, lightweight, imported low noise hydraulic pump, AC drive, carbon brush, motor maintenance free, electromagnetic, regenerative braking system.
6. lift limit, long life induction switch, body shock absorption system/pedal, handle shock absorption.
7.Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system.

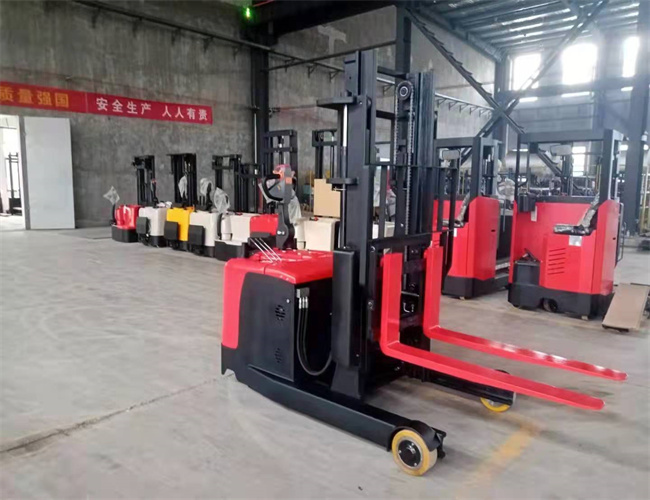

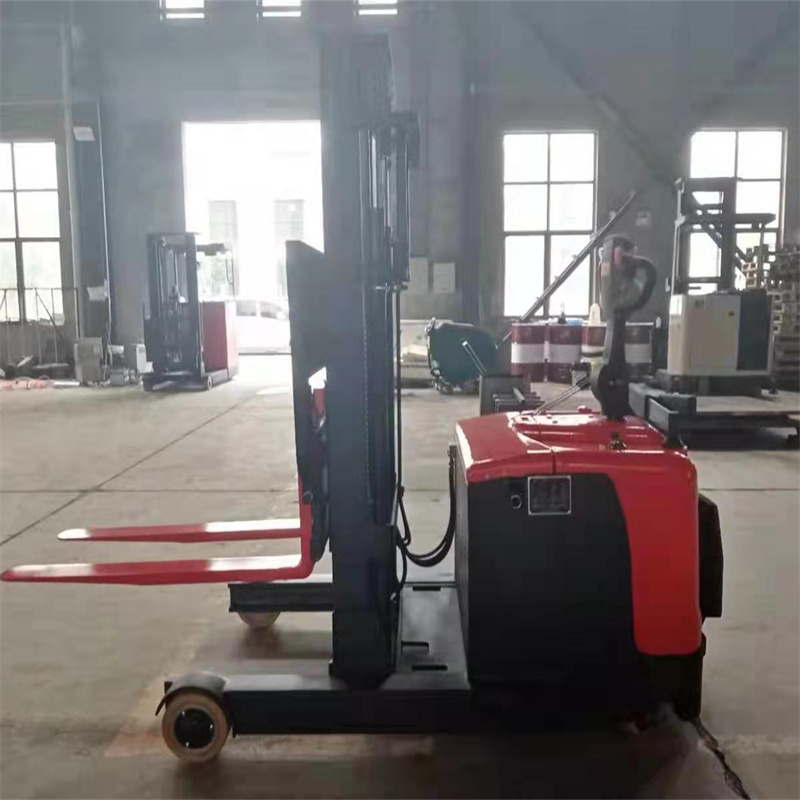

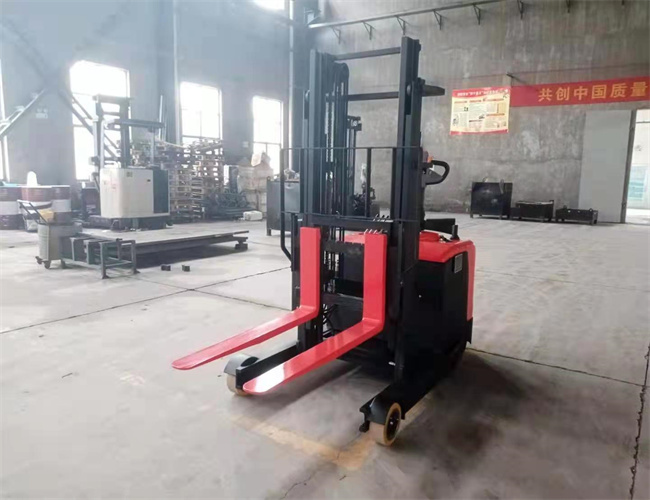

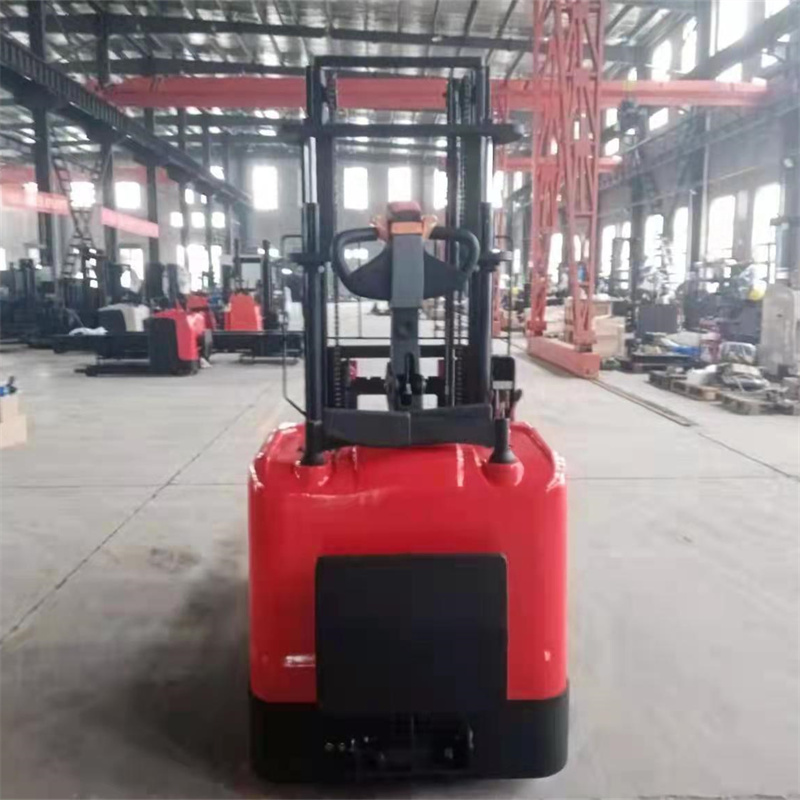

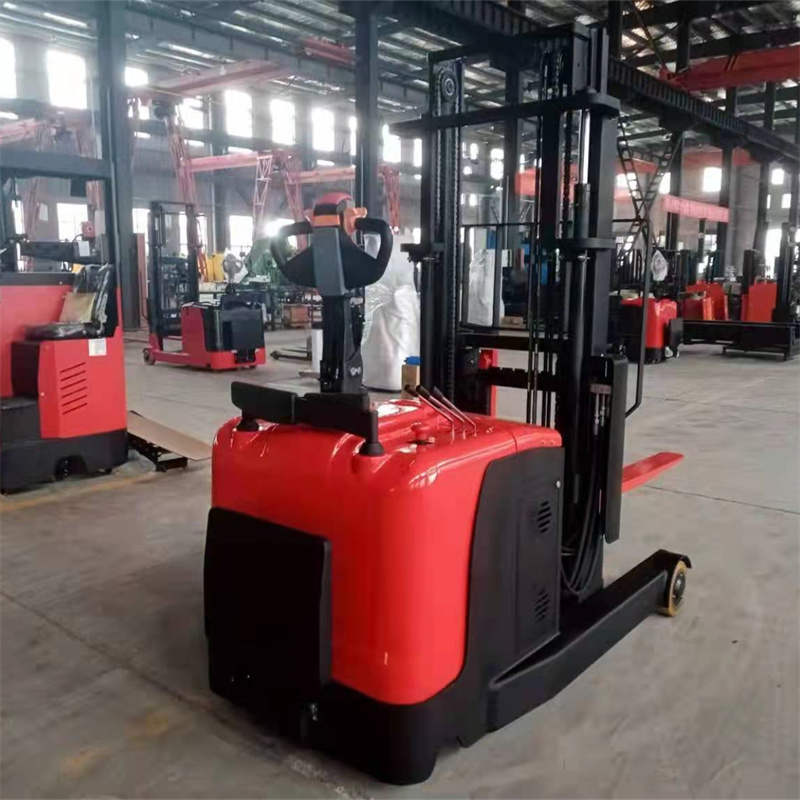

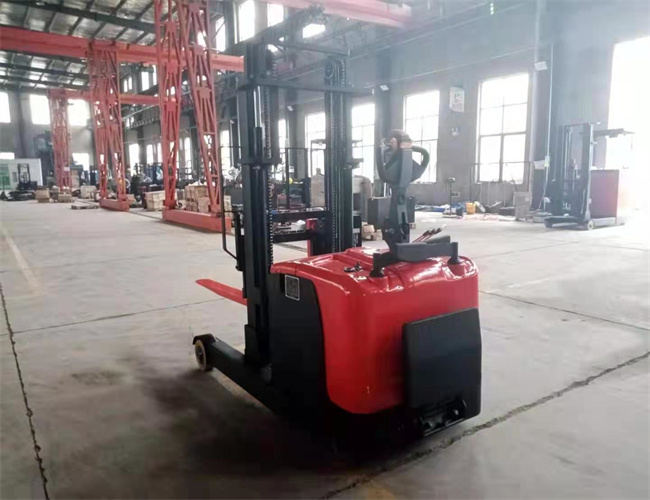

Product Figure

Advantages:
Double cylinders, wide view frame, fork forward tilt back, multi-function handle, electronic steering, lightweight, imported low noise hydraulic pump, AC drive, carbon brush, motor maintenance free, electromagnetic, regenerative braking system, lift limit, long life induction switch, body shock absorption system/pedal, handle shock absorption..

Security:
Bend automatic deceleration device, drive stepless speed regulation, controller multiple automatic protection system, emergency reverse anti-collision/emergency brake device, cylinder safety cut-off valve.

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.

Pre-Sales Service

* Inquiry and consulting support.

* Inspection support

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
