3t QDD30A Standing Type Electric Tractor

ModelQDD30A

Operation TypeStanding type

Dynamic TypeStorage Battery

TyreSolid PU

Maximum traction weight3000

We're here to help:Easy ways to get the answers you need.

3000kg Standing Type Electric Tractor
Factory Supply Standing Type Electric Tractor with Storage Battery

technology parameters

FLIFT QDD20/25/30/40 Standing type Tractor
Product Name   Standing type Tractor
Model   QDD30A
Operation Type   Standing type
Dynamic Type   Storage Battery
Tyre   Solid PU
Maximum traction weight kg 3000
Maximum tractive force KN 1250
Overall Height mm 1600
Overall width mm 776
Overall Length mm 1330
maximum Driving speed Km/h 4/5.5
Wheel Base mm 955
Battery weight mm 190
Turning Radius mm 1180
Parking Brake Type   Electromagnetic brake
Weight kg ~550
Front Tyre mm Φ230*75
Rear Tyre mm Φ150*50
Battery voltage capacity V/Ah 24V/210
Driving Motor kw 1.5
Speed regulation mode   Hall accelerator
Electric Controller   Curtis
Battery Replacement Way   Lifting

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Electronic power steering, lightweight, quiet, sword Array division drive unit, AC drive, carbon brush free, maintenance-free.
5.CURTIS Drive controller, electromagnetic, regenerative braking system, soft cushion. Cushion with protective arm, easy operation, flexible steering, Omron induction microswitch.
6.Super low & Non-slip step.

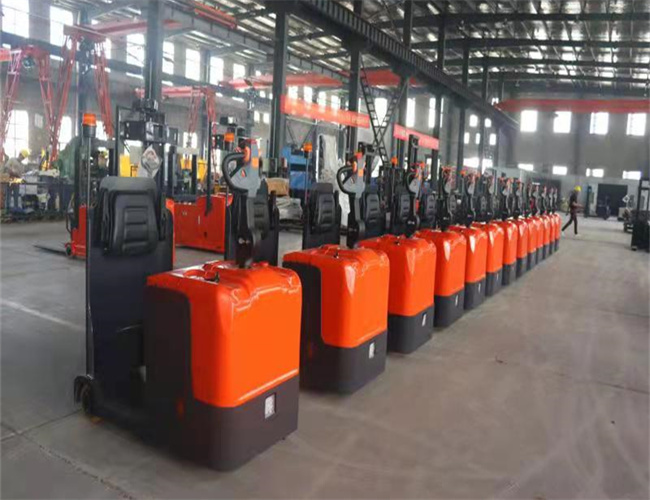

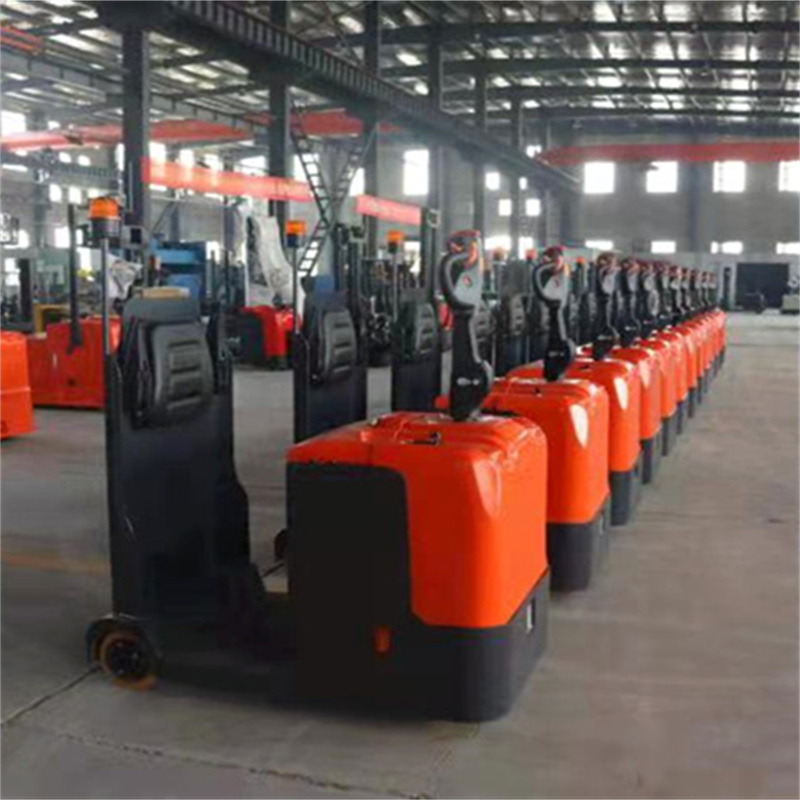

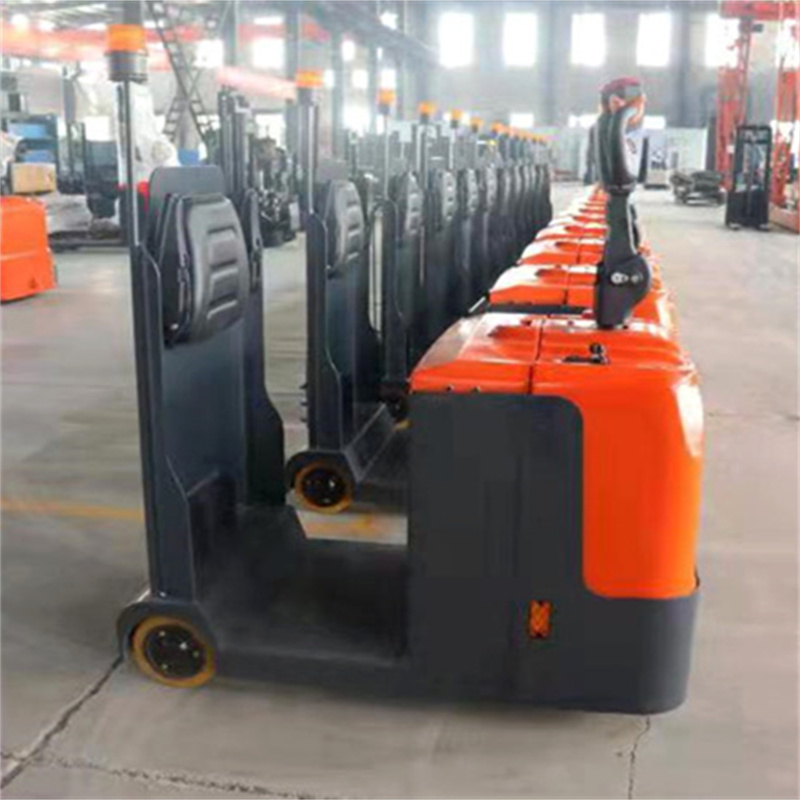

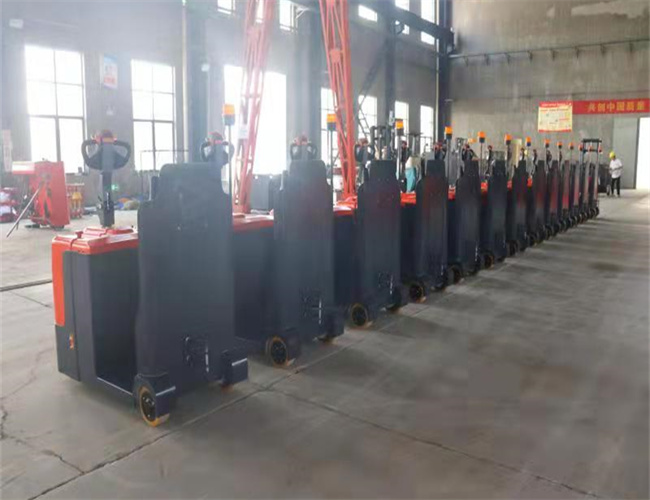

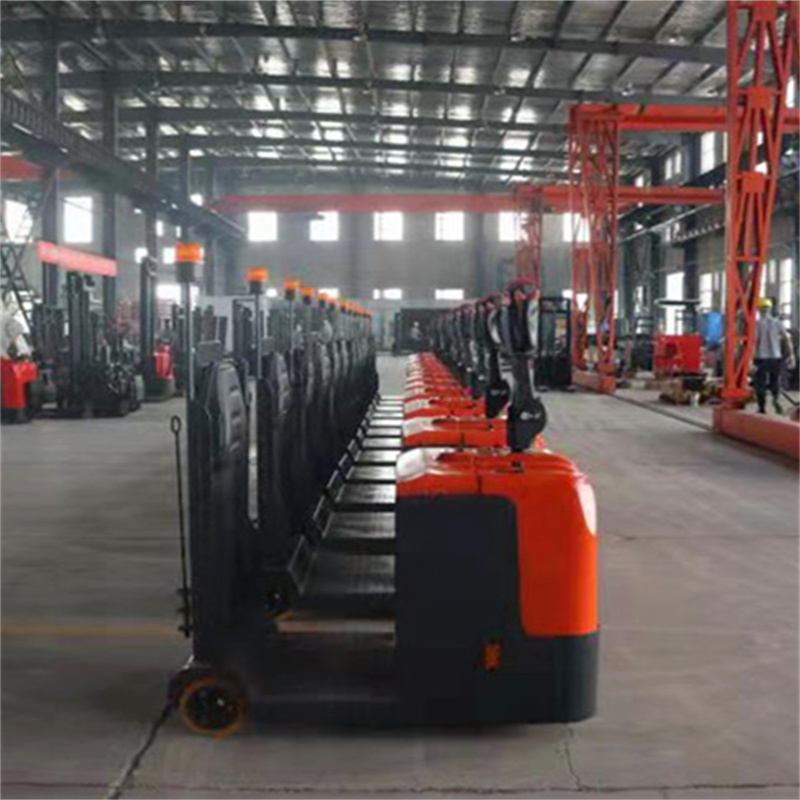

Product Figure



Advantages:

Electronic power steering, lightweight, quiet, sword Array division drive unit, AC drive, carbon brush free, maintenance-free, CURTIS Drive controller, electromagnetic, regenerative braking system, soft cushion. Cushion with protective arm, easy operation, flexible steering, Omron induction microswitch.




Security:
Bend automatic deceleration device, safer, drive stepless speed regulation, controller multiple automatic protection system, emergency reverse device, emergency brake device, walking warning light, optional side pull battery.



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
