2t CQD20S-60 Four-way Walking Type Reach Forklift Truck

Operation TypeSeated type

ModelCQD20S-60

Rated Capacity2000 kg

Max. Lifting Height6000mm

Load Center500 mm

We're here to help:Easy ways to get the answers you need.


2t CQD20S-60 Four-way Walking Type Reach Forklift Truck
High Capacity RATED capacity 2000kg Four-way Reach Forklift Truck with Load Center 500 mm

technology parameters

FLIFT CQD15S/20S/25S Reach Forklift Truck  (Four-way walking type)
Product Name Reach Forklift Truck
Operation Type Seated type
Model   CQD20S-60
 Rated Capacity kg 2000
Max. Lifting Height mm 6000
Load Center mm 500
Load at maximum lift kg 1000
Tyre type   Solid PU
Fork Size mm 1070*100*45
Adjustment range of fork mm 260-820
Overall Length mm 2480
Overall width mm 1800
Mast Lowered Height mm 2680
Reach the highest forklift height mm 6985
Turning Radius mm 1900
Minimum width of sideway mm 2900 (1000*1000Pallet)
Overhead Guard Height mm 2190
Min. Ground clearance(Mast Bottom) mm 80
Max. Driving Speed Km/h 7.0/8.0
Lifting Speed mm/s 120/270
Straight Gradeability % ≤8
Skidding Gradeability % ≤5
Overall Weight kg ~3300
Driving Wheel mm Φ343*135
Front Tyre mm Φ267*114
Battery Capacity V/AH 48/400
Battery Charger V/A 48/50
Driving Motor kw 6.5
Lifting Motor kw 8.6
Driving control type   6.5 (AC)
Speed regulation mode   Hall accelerator
Service Brake   Electromagnetic brake
Parking Brake   Electromagnetic brake



FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.Wide Angle view, high strength shock absorption mast, CURTIS brand drive control system, Mid-south transmission, electronic steering.
5. light and quiet, Shimadzu brand low noise hydraulic pump and valve, four way travel, drive speed compensation.
6.Electromagnetic, regenerative braking system, high and low voltage limit electrical overheating protection.
7.line fault detection, error code diagnosis, torch brand 48V large capacity lead acid battery.

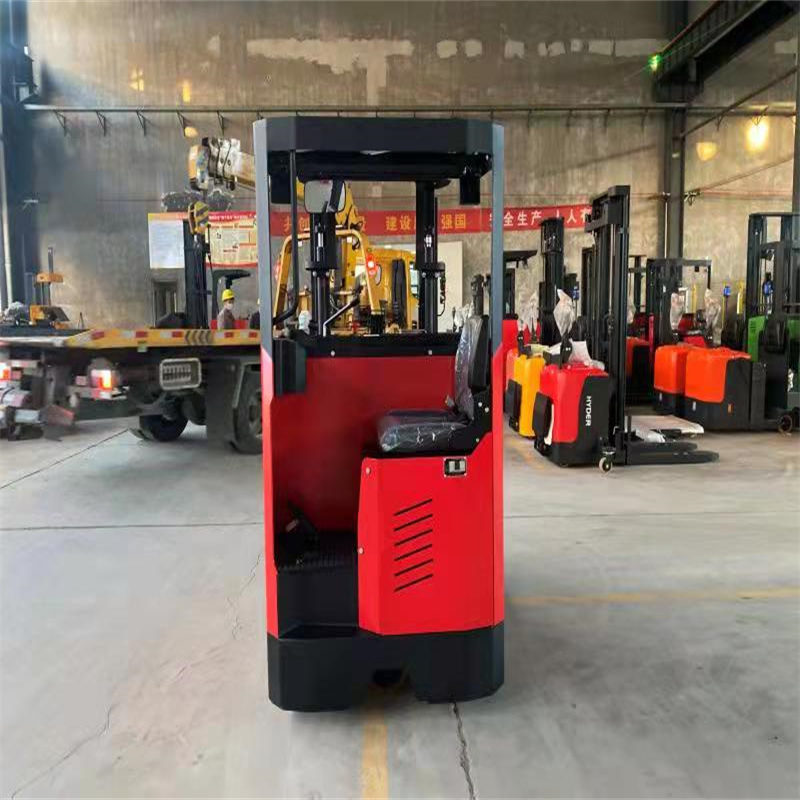

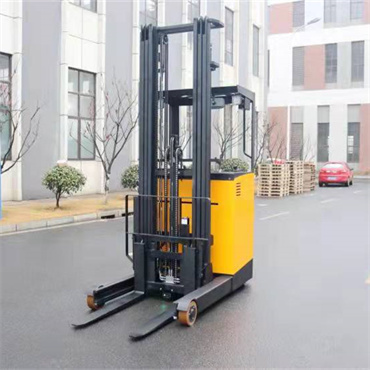

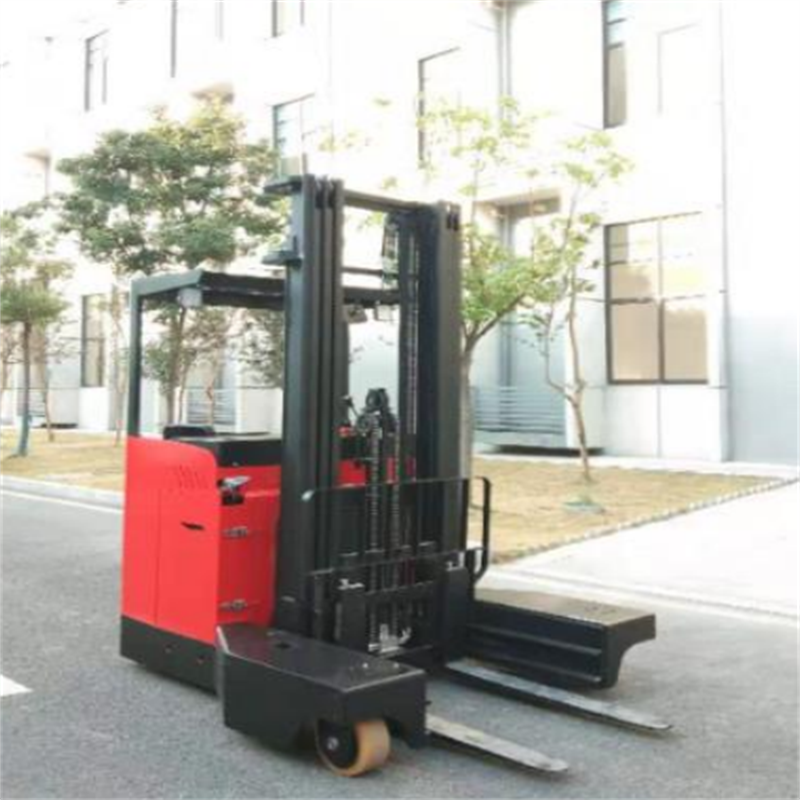

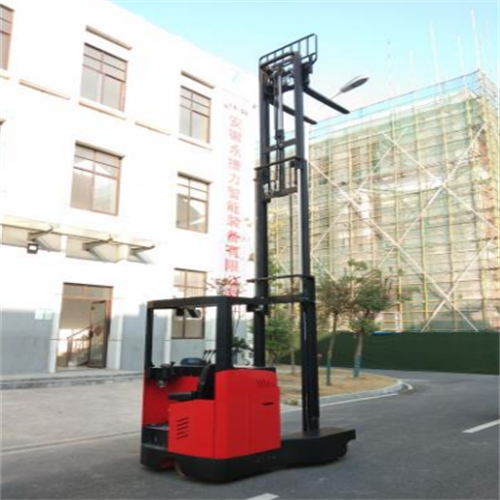

Product Figure



Advantages:

Wide Angle view, high strength shock absorption mast, CURTIS brand drive control system, Mid-south transmission, electronic steering, light and quiet, Shimadzu brand low noise hydraulic pump and valve, four way travel, drive speed compensation Electromagnetic, regenerative braking system, high and low voltage limit electrical overheating protection, line fault detection, error code diagnosis, torch brand 48V large capacity lead acid battery.




Security:
Bend automatic deceleration device, fork high cargo position automatic deceleration, drive stepless speed regulation, controller multiple automatic protection system, induction type safety seat, cylinder safety cut-off valve low noise hydraulic, side pull type battery IED headlamp, optional widened fork, double fork.



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
