Wheel Base 1245 mm, Overall Weight 750kg, Traction weight 3000kg

Technical Parameters

technology parameters

FLIFT QDD30C Electric Tractor (load-supporting)
Product Name	Electric Tractor
Model		QDD30C
Traction weight	kg	3000
Traction type		Load-supporting type
Max. Lifting Height	mm	365
Height of bearing shaft head above ground	mm	195
Tyre type		Solid PU
Fork leg outside width	mm	560
Overall Length (with fork Pack up the pedal )	mm	1620
Overall Width	mm	850
Overall Height	mm	1500
Wheel Base	mm	1245
Turning Radius(Pack up the pedal)	mm	1545
Max. Driving Speed	Km/h	4.0/5.0
Gradeability	%	5%/8%
Overall Weight	kg	750
Driving Wheel	mm	230*75
Front wheel	mm	150*90
Balance wheel	mm	130*55
Battery Capacity	V/AH	24/210
Battery charger	V/A	24/30
Driving motor	kw	1.6
Lifting motor	kw	2.2
Speed regulation mode		Hall accelerator

FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4.short wheelbase, CURTIS brand drive control system, multi-functional integrated handle.
5electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free.
6.Electromagnetic and regenerative braking system. Inductive proximity switch.
7.Super low & Non-slip step.

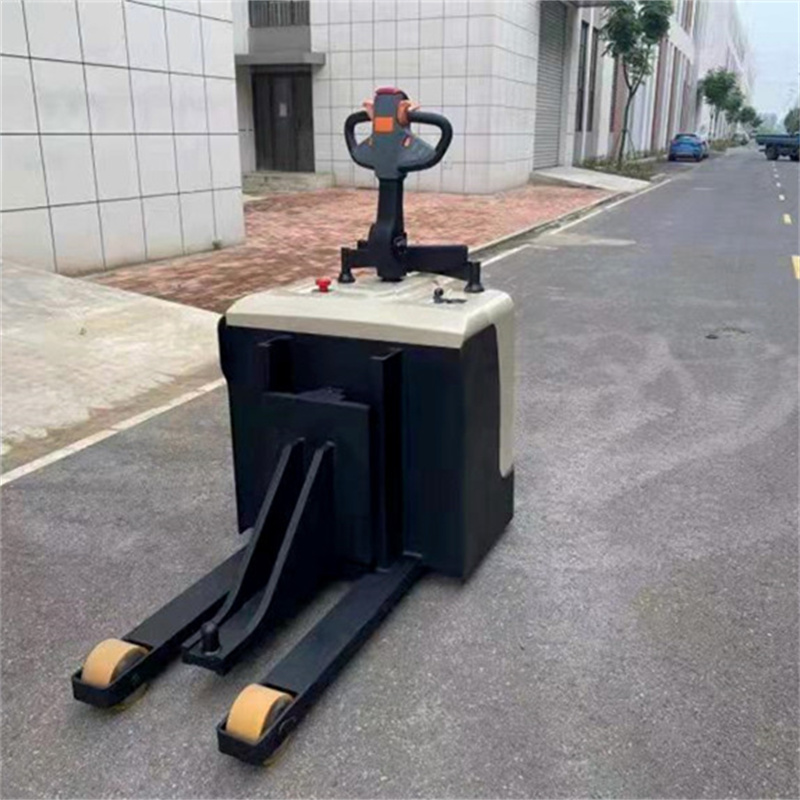

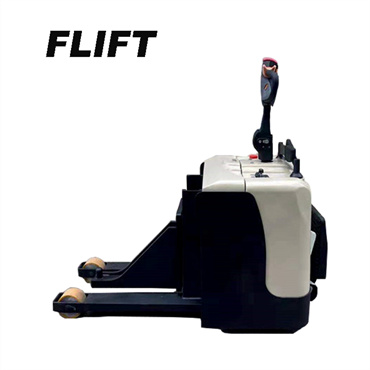

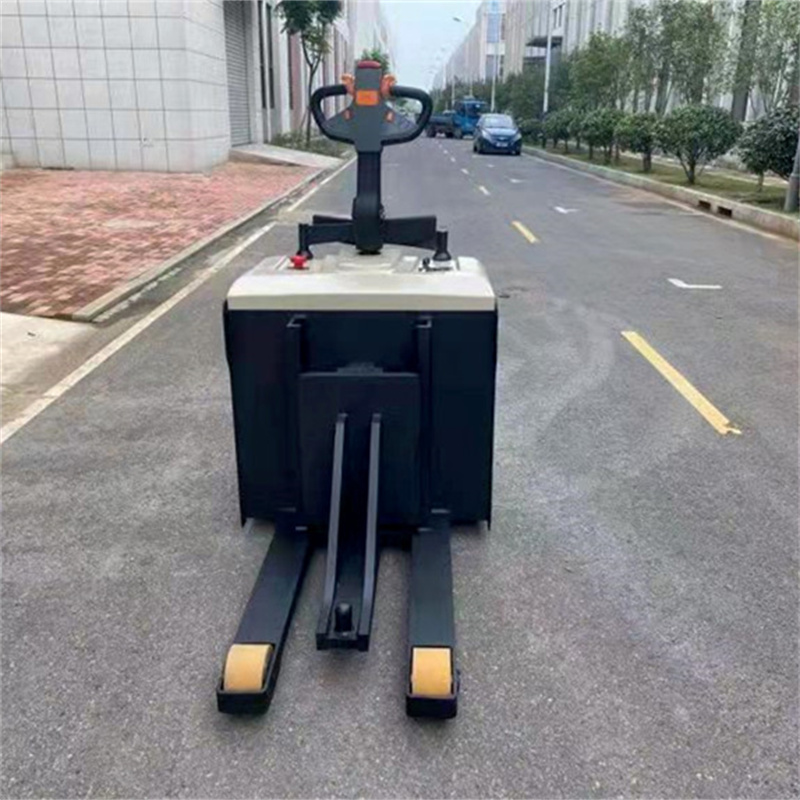

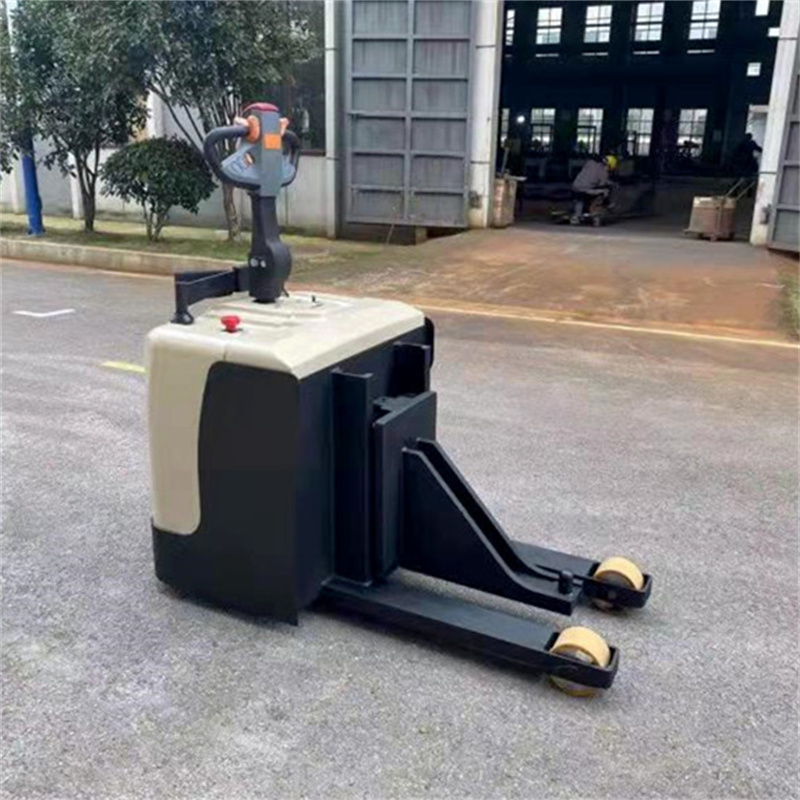

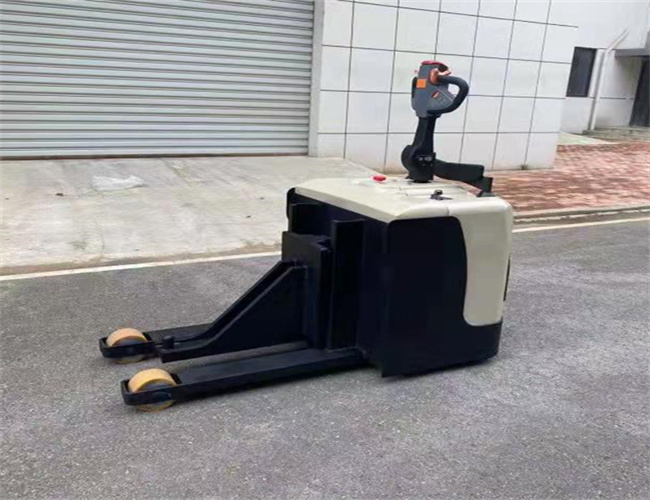

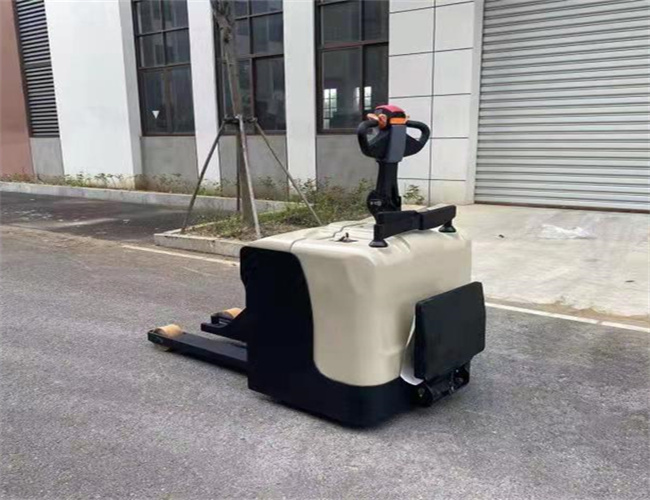

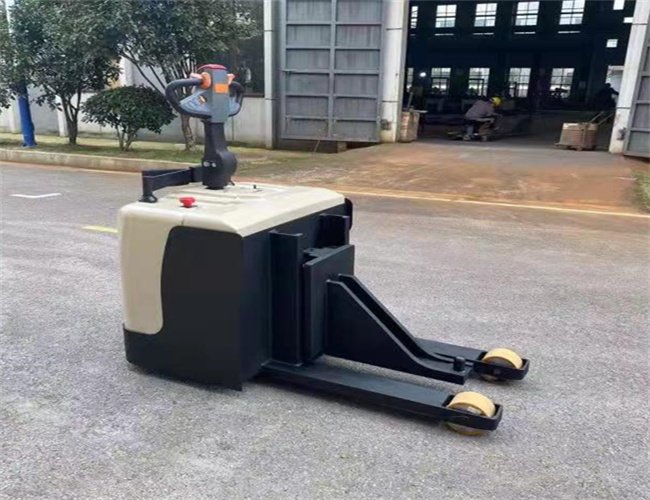

Product Figure

Advantages:
Short wheelbase, CURTIS brand drive control system, multi-functional integrated handle, electronic steering, lightweight. Integrated low noise hydraulic pump, AC drive, no carbon brush, motor maintenance free. Electromagnetic and regenerative braking system. Lift limit, long life induction switch, body shock absorption system, handle shock absorption.

Security:
Bend automatic deceleration device, drive stepless speed regulation low voice hydraulic, controller multiple brake protection system, optional lithium battery, emergency reverse anti-collision/emergency brake device, oil cylinder safety cut-off valve, non-standard customization.

After-sales Service

Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
