4t QDD40 Seated type Electric Tractor

ModelQDD40

Dynamic TypeElectric

Operation TypeSeated Type

Traction Weight4000kg

Tyre type (Front/Rear)Solid Rubber

We're here to help:Easy ways to get the answers you need.

4 Ton Electric Pallet Stacker
Factory Supply Electric Tractor QDD40 with Rated Traction 4000kg.

technology parameters

FLIFT QDD40/60 Seated type Electric Tractor
Brand FLIFT
Model   QDD60 QDD40
Dynamic Type   Electric Electric
Operation Type   Seated Type Seated Type
Traction Weight kg 6000 4000
Tyre type (Front/Rear)   Solid Rubber Solid Rubber
Front wheel   3.50-5 3.50-5
Rear wheel   4.00-8 4.00-8
Min. Ground clearance mm 95 95
Overall Length mm 2020 1720
Wheel Base mm 1325 1040
Overall width mm 985 850
Tread (Front/Rear) mm */870 --/760
Turning Radius mm 1525 1400
Driving Speed (full load/no load) Km/h 8km/h/15km/h 4.5km/h/7km/h
Gradeability (full load/no load) % 6%/12% 3%/10%
Driving motor capacity kw 5 2
Battery Voltage/capacity V/AH 48/280 24/240
Battery Weight kg 550 210
Overall Weight (with battery) kg 1200 900
Steering type   Electronic Steering Electronic Steering
Parking Brake type   Mechanical/hydraulic Mechanical/hydraulic



FEATURES

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. aulic power steering, lightweight and quiet, bridge drive unit.
5.AC drive, carbon brush free, maintenance-free, CURTIS Drive controller, regenerative braking system.
6.safety seat, forward/backward fine adjustment, easy operation and flexible steering
7.Drive stepless speed regulation, controller multiple automatic protection system. 8.Super low & Non-slip step.

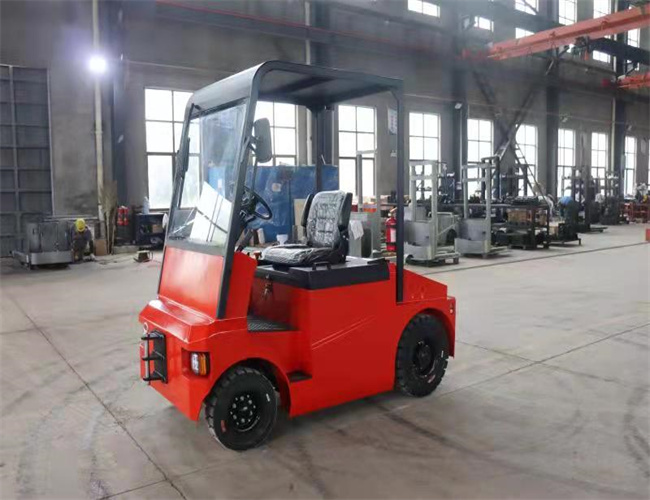

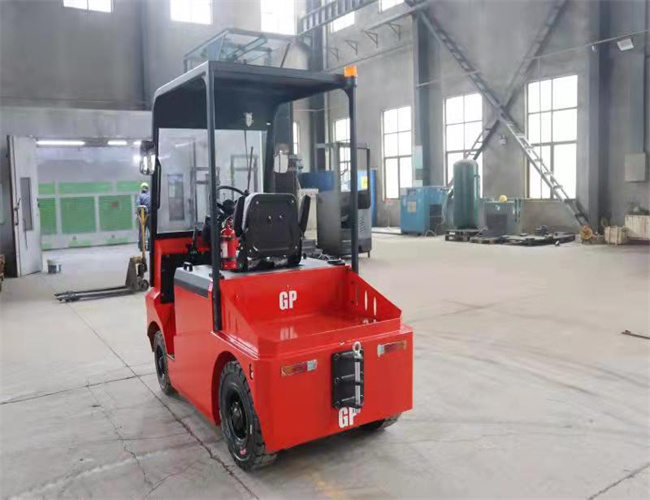

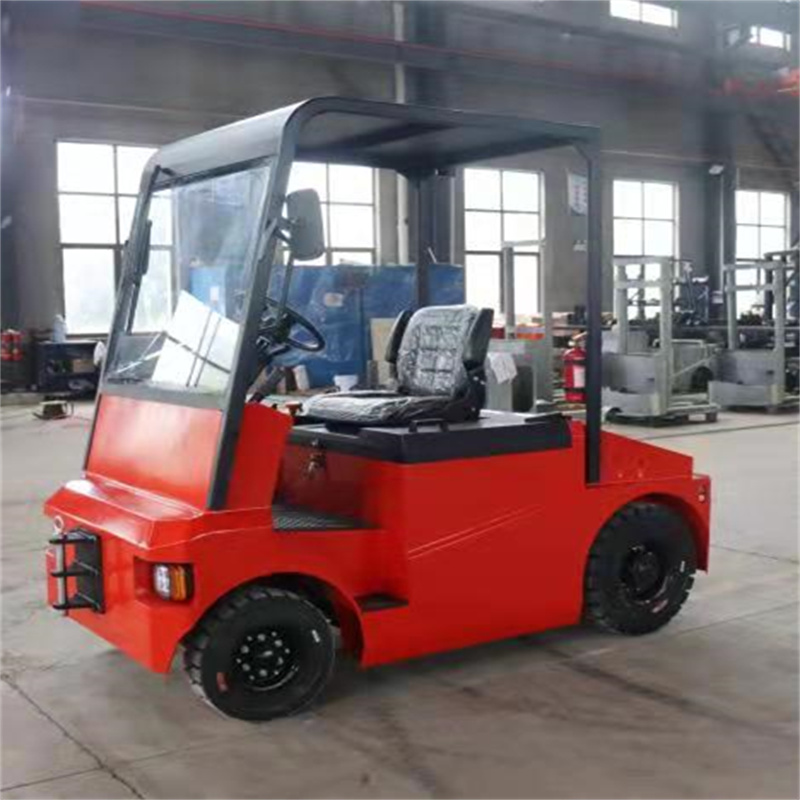

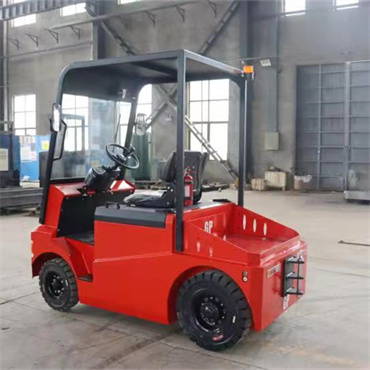

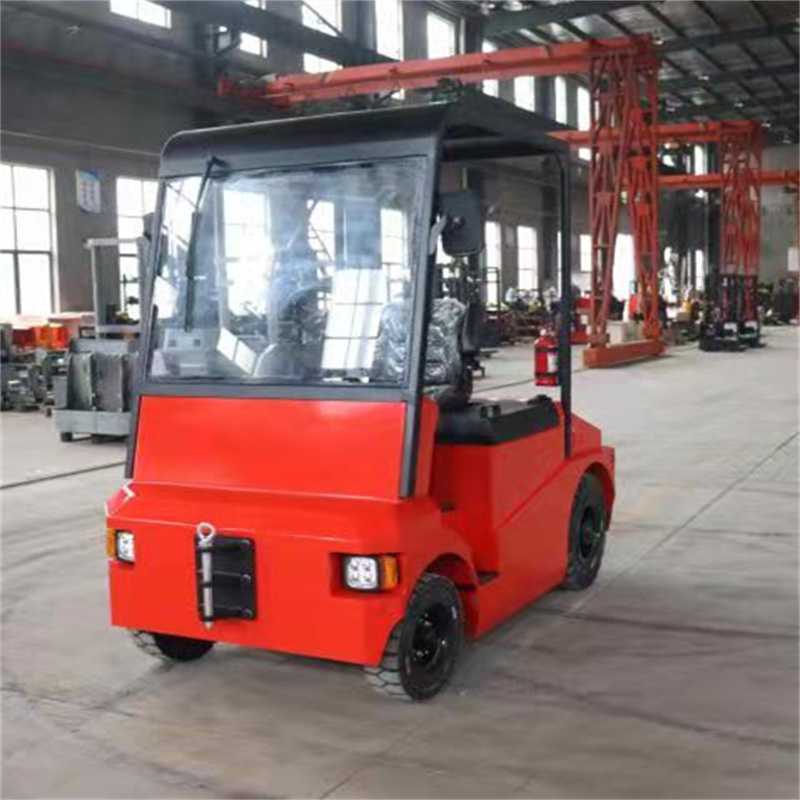

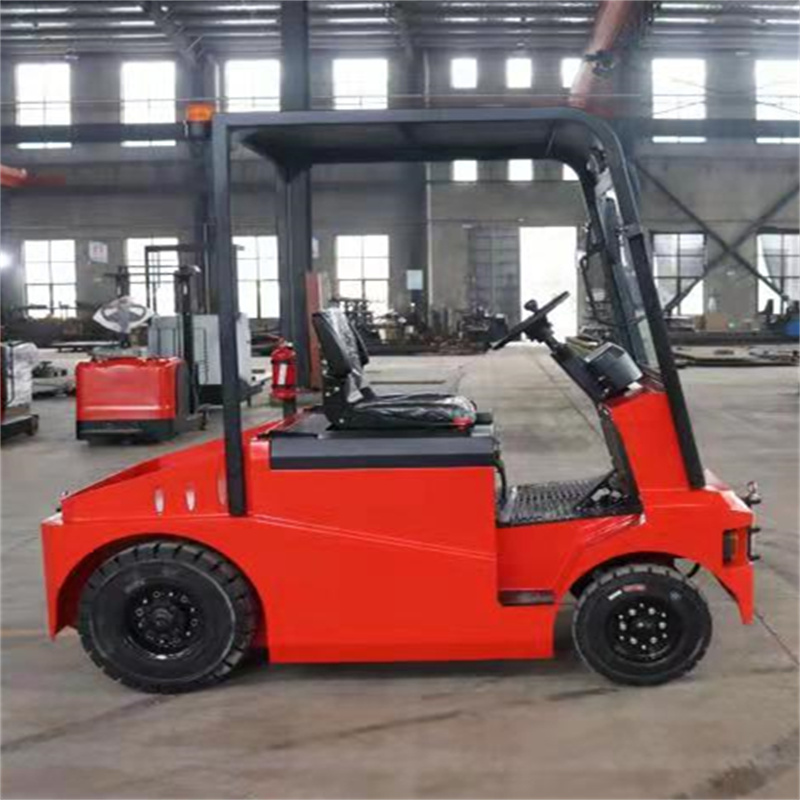

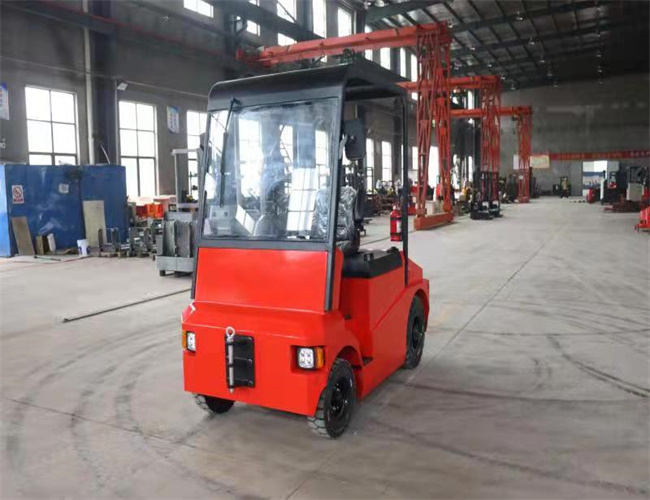

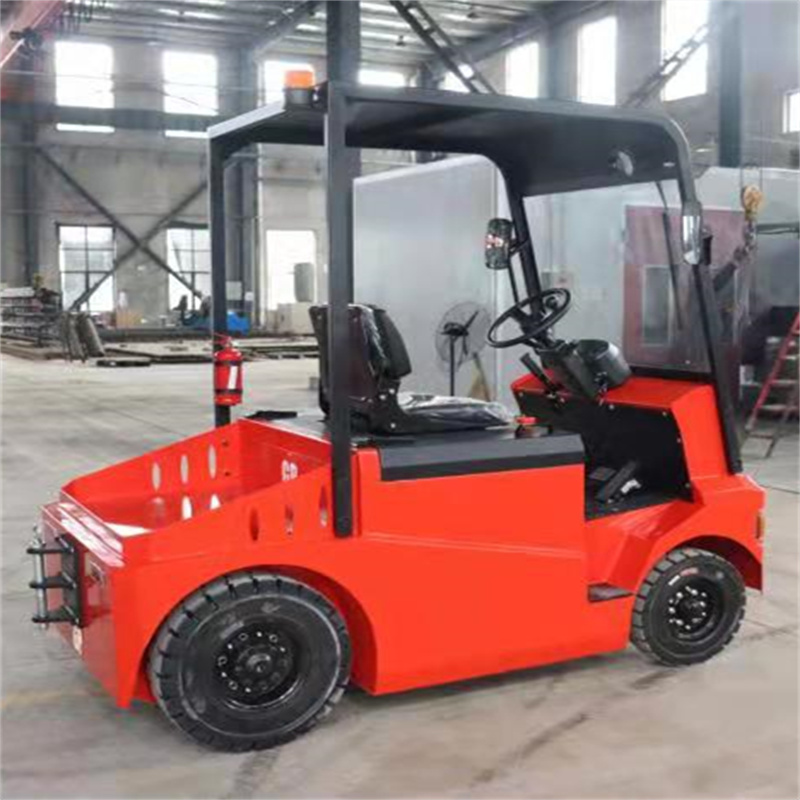

Product Figure



Advantages:

Hydraulic power steering, lightweight and quiet, bridge drive unit, AC drive, carbon brush free, maintenance-free, CURTIS Drive controller, regenerative braking system, safety seat, forward/backward fine adjustment, easy operation and flexible steering.




Security:
Drive stepless speed regulation, controller multiple automatic protection system, emergency brake switch walking warning light, hydraulic brake hydraulic power, wiper walking alarm light, optional lithium battery, automatic deceleration curve, optional roof protection frame, non-standard customization..



Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
