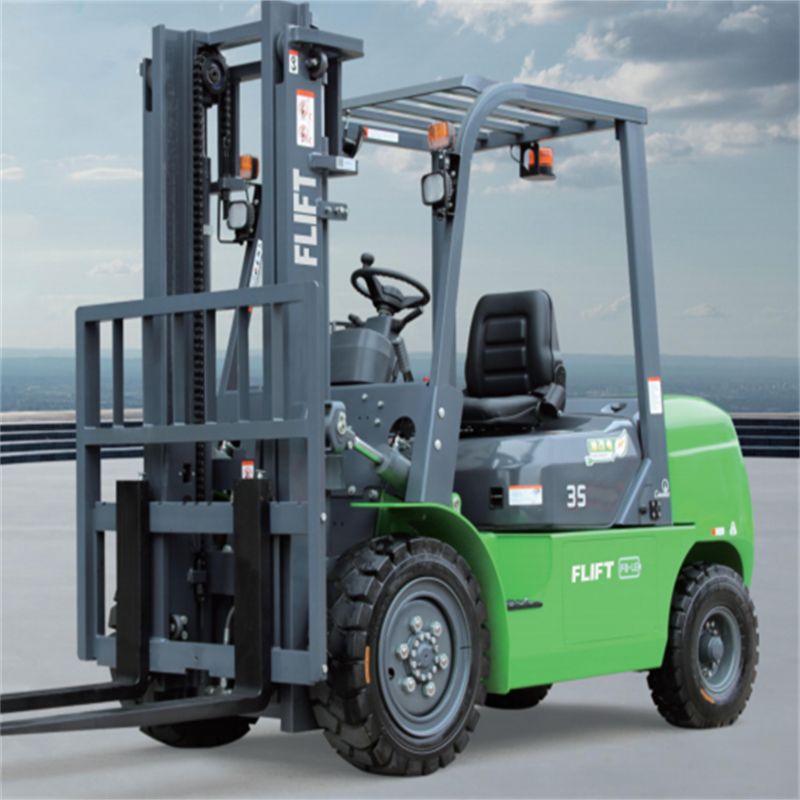

3.5ton FB35LE Low Voltage Lithium Battery Forklift

Rated Capacity3500kg

Lifting Height3000mm

Load Centre500mm

Fork Length 1070mm

Service Weight4500kg

We're here to help:Easy ways to get the answers you need.

335ton Low Voltage FB35LE Lithium Battery Forklift
Factory New Design FB35LE lithium battery forklift .

technology parameters

Model



FB30LE

FB35LE-E

FB35LE

FB38LE

Power Type



Lithium Battery

Lithium Battery

Lithium Battery

Lithium Battery

Rated Capacity

kg

3000

3500

3500

3800

Load Center

mm

500

500

500

500

Service weight

kg

4000

4400

4500

4700

Tyre type



Air tires

Air tires

Air tires

Air tires

Wheel number X=drive wheel



2x2/2

2x2/2

2x2/2

2x2/2

Tyre Size(Front)



28*9-15-14PR

28*9-15-14PR

28*9-15-14PR

28*9-15-14PR

Tyre Size(Rear)



6.50-10-10PR

6.50-10-10PR

6.50-10-10PR

6.50-10-10PR

Front Tread

mm

1000

1000

1000

1000

Rear Tread

mm

960

960

960

960

Wheel base

mm

1800

1800

1800

1800

Fork Size

mm

1070*125*45

1070*125*50

1070*125*50

1070*125*50

Mast Tilt Angle

Deg

6/12

6/12

6/12

6/12

Lift Height

mm

3000

3000

3000

3000

Mast Lowered Height

mm

2115

2115

2150

2150

Free Lifting Height

mm

125

125

125

125

Mast Extended Height

mm

4175

4175

4175

4175

Backrest Height

mm

1140

1140

1140

1140

Fork Adjust Distance

mm

250-1100

250-1100

250-1100

250-1100

Length to face of fork

mm

2781

2781

2806

2806

Overall Width

mm

1230

1230

1230

1230

Overall Guard Height

mm

2150

2150

2150

2150

Distance From Roof to Seat

mm

1010

1010

1010

1010

Front Overhang

mm

481

481

506

506

Rear Overhang

mm

500

500

500

500

Turning Radius (Outside)

mm

2540

2540

2540

2540

Ground Clearance(Bottom of mast)

mm

140

140

140

140

Min.intersecting aisle

mm

2600

2600

2620

2620

Min. Right angle stacking aisle width

mm

4280

4280

4300

4300

Max. Travel Speed

Km/h

12/12.5

12/12.5

12/12.5

12/12.5

Lifting Speed(Full load/no load)

mm/s

330/430

310/420

260/360

260/360

Lowering Speed(Full load/no load)

mm/s

≤600/≥300

≤600/≥300

≤600/≥300

≤600/≥300

Max. Gradeability

%

15

15

15

15

Battery (Voltage/Capacity)

V/Ah

80/210

80/280

80/280

80/280

Fork Size

mm

640*640*585

640*640*585

640*640*585

640*640*585

Drive Motor

kw

11

11

11

11

Lift Motor

kw

15

15

15

15

Controller Manufacturer



Made in China

Made in China

Made in China

Made in China

Type



AC

AC

AC

AC

Operating Pressure

Mpa

18

18

18

18

FEATURES

1.FLIFT brand LE series 3-3.8t electric forklift is a new energy product developed on the platform of T-series internal combustion forklift;
2.applying the shape,chassis and gantry system of the internal combustion vehicle, and integrating the latest lithium battery control technology;
3.Maintenance-free lithium iron phosphate technology, fast charging ready to use any time;
4. Adopt Chinese-made controller, three-phase asynchronous motor,reliable performance;

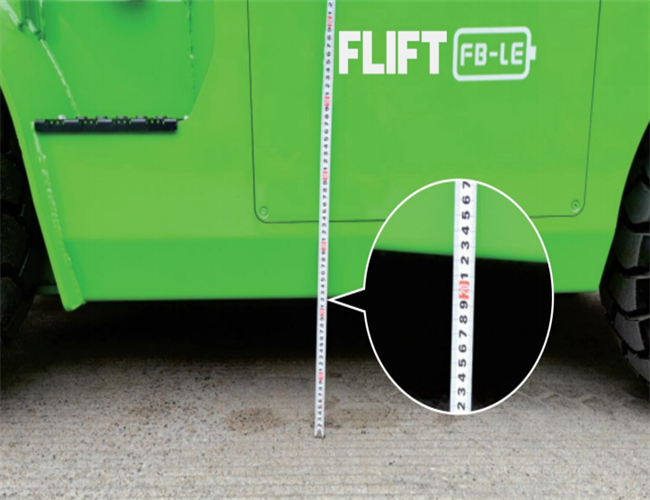

5.It adopts internal combustion vehicle chassis, which is strong, durable and has good passability;
6.Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;
7.Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
8.Super low & Non-slip step.

Product Figure

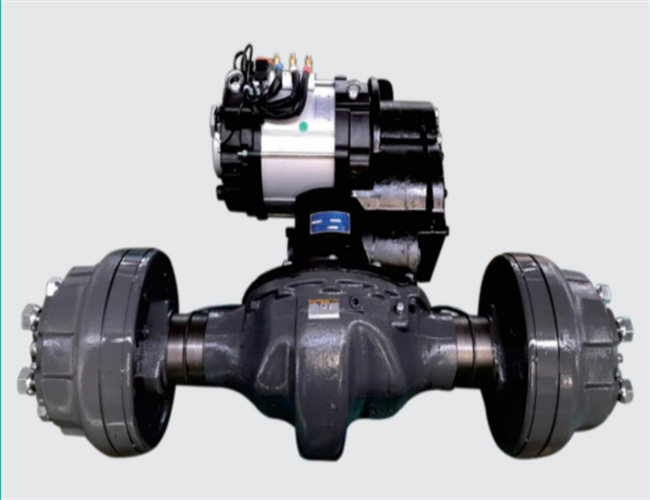

Efficient Drive System
H-type compact structure drive unit,low center gravity, more reasonable layout, and more stable driving. *New maintenance-free AC motor with high transmission efficiency and low maintenance cost.

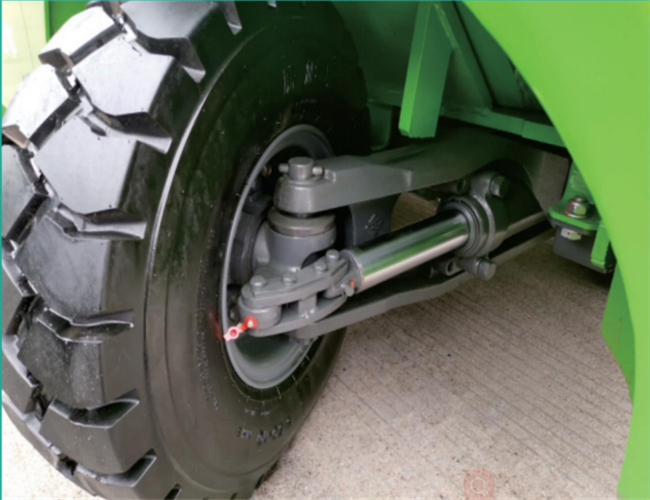

Flexible Steering System
Adopt dynamic load-sensing priority steering system to make steering response faster and driving more stable. *The frame and steering axle are connected by suspension; *special rubber pads effectively buffer shock absorption..




Sales Service

We offer 2 years or 2000 working hours period of warranty to our partners. In case of any defects or quality problems during the warranty period, Maximal will supply technical and spare parts supports to help our partners solving the problems immediately. 7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.



         Pre-Sales Service

           * Inquiry and consulting support.

           * Inspection support

           * View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.
