12t Lithium-Battery-forklift

Power Typelithium battery

Driving TypeSeated

Rated Capacity12000KG

Service Weight15800/27800

lift Height3000mm

We're here to help:Easy ways to get the answers you need.

12Ton Electric Forklift

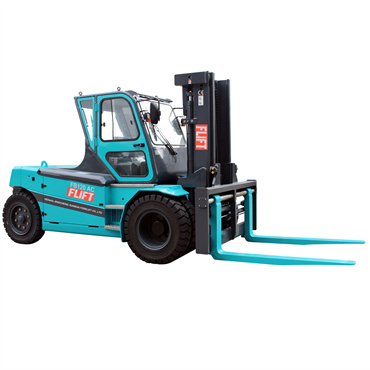

Famous Brand FLIFT FB120 lithium battery forklift with Wide-view 2-Stage 3meter mast.

Specifications of FLIFT Brand 12ton lithium battery forklift
1 Brand Model     FLIFT FB120
2 Power Type     Battery
3 Driving Type     Seated
4 Rated load capacity   kg 12000
5 Load center   mm 600
6 Self weight   kg 15800/27800
  Tires, Chassis
7 Tire       Solid Tires
8 Tires Number X=Drive tire(F/R)       4X/2
9 Front Tires       9.00-20
10 Rear Tires       8.25-20
11 Front Tread   S mm 1736
12 Front Tread   P mm 1754
13 Wheelbase   L5 mm 2850
14 Lift Height   h3 mm 3000
15 Fork Size L×W×T L3×W×T mm 1220×175×85
16 Mast Tilt Angle F/R α/β 6/10
17 Mast Lowered Height   h1 mm 2830
18 Free Lift   h2 mm 230
19 Mast Extended Height(With backrest)   h4 mm 4260
20 Minimum right angle channel width   Ra Mm 4050
Minimum right angle stacking aisle width RASA mm 5960
21 Fork adjust range(outside)   R mm 515-2055
22 Length to face of fork(Without fork)   L2 mm 4412
23 Overall Width   B mm 2250
24 Overall Guard Height   h5 mm 2640
25 From seat to the overhead guard   h6 mm 1040
26 Front Overhang   X mm 845
27 Rear Overhang   L4 mm 716
28 Turning Radius   Wa mm 3850
29 Ground Clearance (Bottom of mast)   m1 mm 230
30 Max. Travel Speed(Full/Empty load)     km/h 13/14
31 Max. Lifting Speed(Full/Empty load)     mm/s 300/300
32 Max. Lowing Speed(Full/Empty load)     mm/s ≥300  ≤600
33 Max. Gradeability(Full load)     % 10
34 Voltage/Capacity  Lithium battery V/Ah 144V/630Ah
35  Battery brand   mm Eve brand
36 Motor power  Drive motor Kw 20×2(Wan Nan)
37 Lift motor Kw 29×2(Wan Nan)
38 Controller Manufacturer   CURTIS
39 Controller Type   AC
40 Hydraulic system working pressure Mpa 18


1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.




Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
