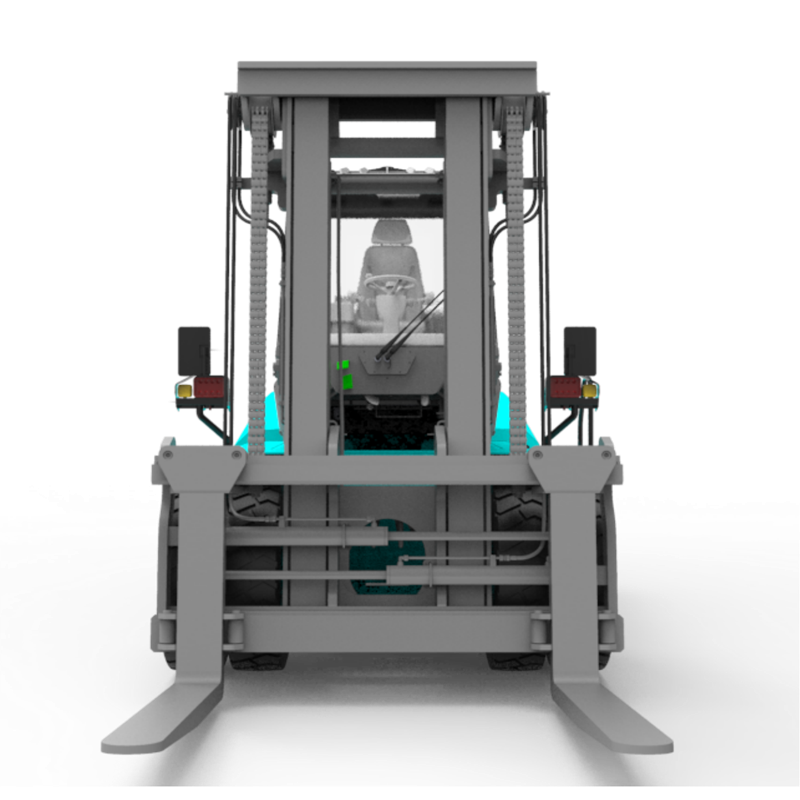

  • Front view of FB160 forklift truck

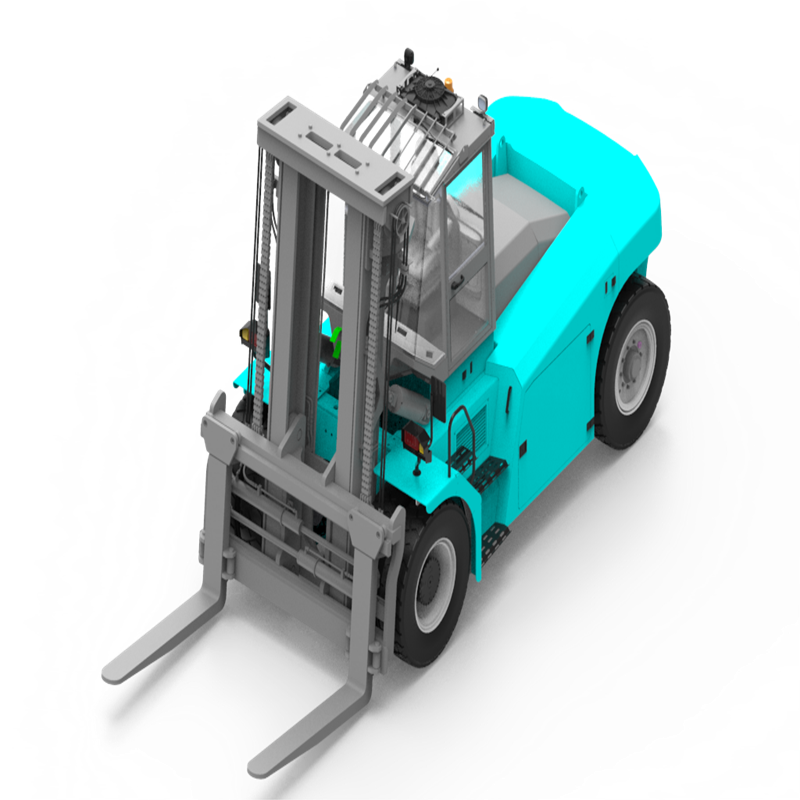

  • Aerial view of FB160 forklift truck

16ton Lithium Battery forklift

Power TypeElectric

Driving TypeSeated

Rated Capacity16000

Service Weight26500kg

lift Height4000mm

We're here to help:Easy ways to get the answers you need.

16ton Battery Forklift
High Capacity Innovative Electric Forklift FB160 16ton with Imported Electrical Controller.

SPECIFICATIONS OF FLIFT Brand 16TON ELECTRIC COUNTER BALANCED FORKLIFT
Characteristics
1 Model     FB160
2 Power Type     Battery
3 Driving Type     Seated
4 Rated Capacity   kg 16000
5 Load Centre   mm 1200
Weight
6 Service Weight   kg 26000
Tyre & Chassis
7 Tire Type     Air tires
8 Wheel number X=Drive wheel(front/rear     4X/2
9 Front Tires     12.00-24-24PR
10 Rear Tires     12.00-20-20PR
11 Front Tread S mm 1900
12 Rear Tread P mm 2030
13 Wheelbase L5 mm 3600
Dimension
14 Lift Height h3 mm 4000
15 Fork Size L3×W×T mm 2420x200x100
16 Mast Tilt Angle(FZR) α/β 6/12
17 Mast Lowered Height h1 mm 3660
18 Free lift distance h2 mm /
19 Mast Extended Height h4 mm 5655
20 Backrest Height h7 mm /
21 Fork adjust distance R mm 640-2220
22 Length to face of fork L2 mm 5450
23 Overall width B mm 2610
24 Overall Guard Height h5 mm 3020
25 Distance from roof to seat h6 mm 1000
26 Front overhang X mm 970
27 Rear overhang L4 mm 930
28 Turning radius(outside) Wa mm 5300
29 Ground Clearance(Bottom of mast) m1 mm 250
30 Min. intersecting aisle Ra mm 7500
31 Min. right angle stacking aisle width RASA mm 7700
Performance
32 Max. Travel speed(Full load/No load)   km/h 20/18
33 Lifting speed(Full load/No load)   mm/s 350/290
34 Lowering speed(Full load/No load)   mm/s ≥300 ≤600
35 Max. Grade-ability   % 15
36 Max. traction(Full load)   kN 90
Drive, transmission
37 Battery Type     Lithium iron phosphate
38 Voltage/Capacity   V/Ah 608/346(210 kWh)
39 Rated storage   Kwh 210
40 Charge/discharge cycle number     more than 4000
41 Motor Drive Motor   Kw 2×39
42   Lift Motor   kW 2×49
43 Controlloer    Brnad INMOTION
44   Volt 600V
45 Hydrauli oil tank   L 260
46 Operating pressure   Mpa 19

FEATURES

1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.

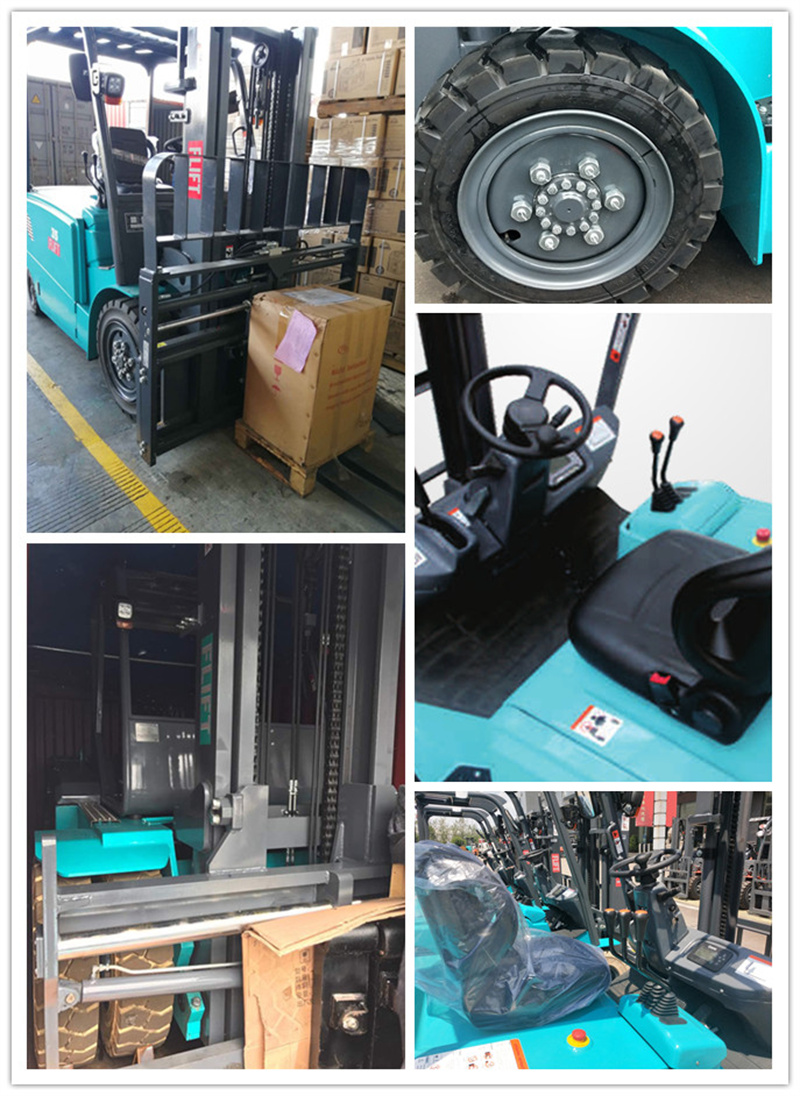

DETAILS FIGURE


Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction!
