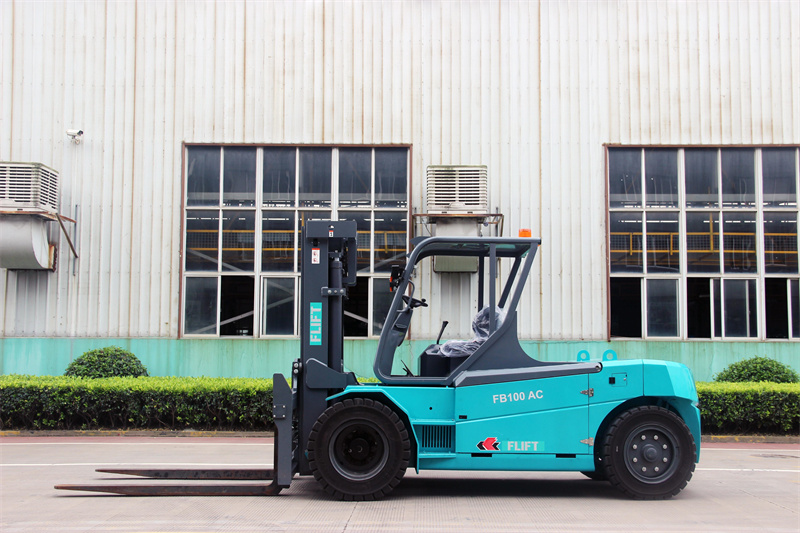

  • Front view of FB100

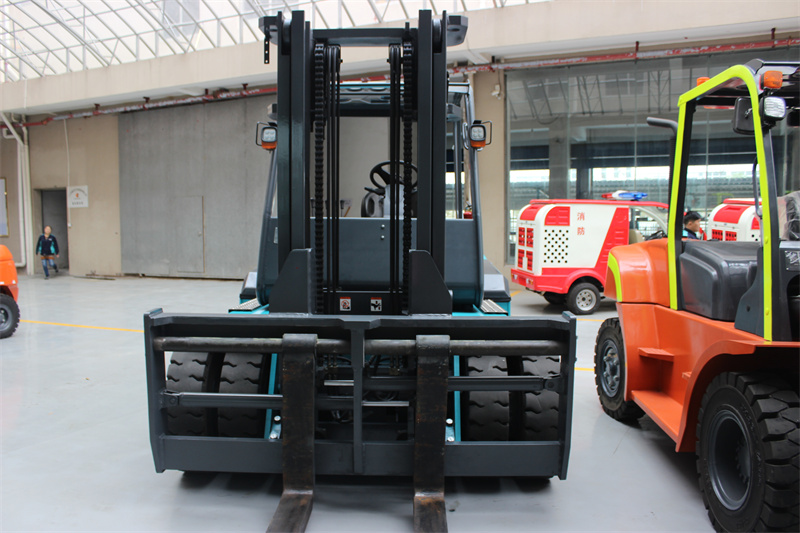

  • Figure of mast

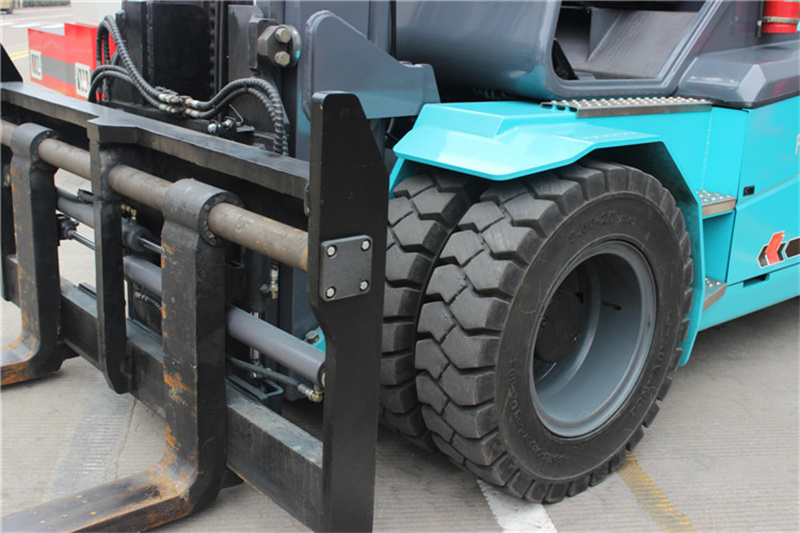

  • Detail Figure of FB80

8t Electric Forklift

Power TypeElectric

Driving TypeSeated

Rated Capacity8000KG

Service Weight12780KG

lift Height3000mm

We're here to help:Easy ways to get the answers you need.

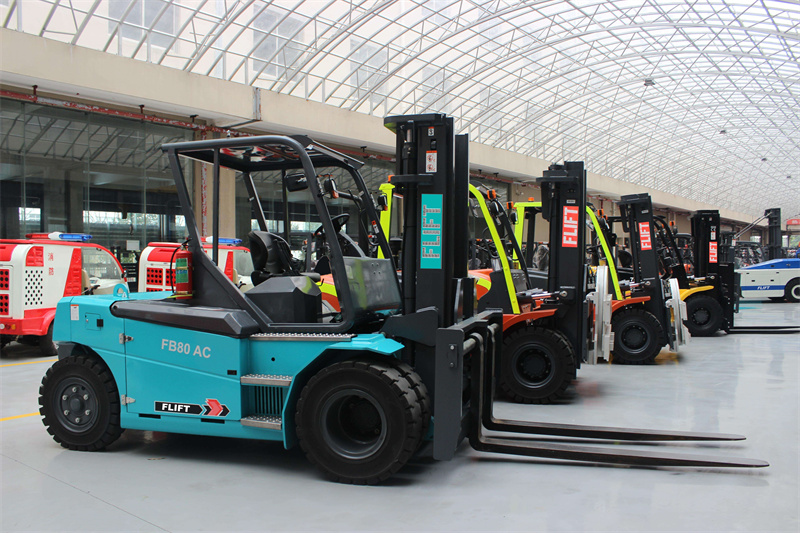

8 Ton Electric Forklift
Innovative New Design Powered by Battery Forklift FB80 8t with ForK Length 1220mm for hot Seeling.

GeneraL 1 Model   FB80
2 Power Type   Electric
3 Rated Capacity kg 8000
4 Load Centre mm 600
Characreristic & Dimension 5 Lift Height mm 3000
6 Fork Size L×W×T mm 1220*150*70
7 Mast Tilt Angle F/R Deg 6°/10°
8 Front Overhang (Wheel Center to fork face) mm 650
9 Tread F/R mm 1650/1700
10 Ground Clearance (Bottom of mast) mm 160
11 Fork Spread Min./Max.   300/2000
12 Overall Dimension Length to face of fork(Without fork) mm 3680
13 Overall Width mm 2200
14 Mast Lowered Height mm 2600
15 Mast Extended Height(With backrest) mm 4550
16 Overall Guard Height mm 2500
17 Turning Radius(outside) mm 3350
18 Min. insecting aisle mm 3040
Performance 19 Speed Travel(Empty load) km/h 15
20 Lifting(Full load) mm/s 275
21 Max. Gradeability % 15
Chassis 22 Tire Front   9.00-16
23 Rear   8.25-15
24 Wheel Base mm 2450
25 Service Weight kg 12780
Power & Transimission 26 Motor Drive Motor   2*14(BEST MOTOR)
27 Lift Motor   2*25(SCHABMULLER)
28 Battery Voltage/Capacity V/Ah 80/1150
29 Controller Manufacturer   CURTIS/INMOTION/ZAPI
30 Type   AC
31 Operating Pressure for Attachment Mpa 17.5

FEATURES

1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.

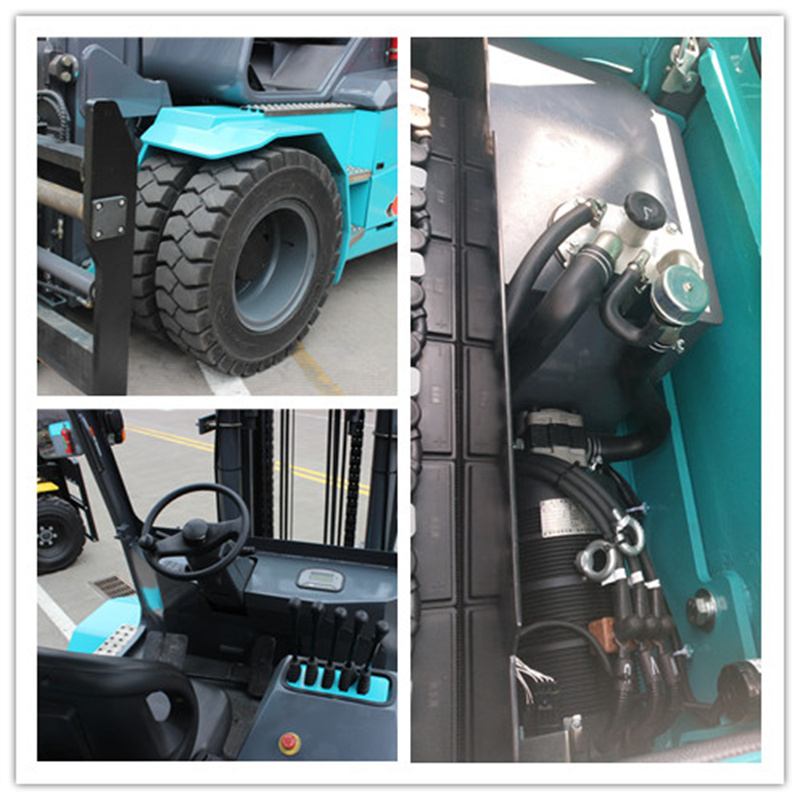

DETAILS FIGURE


Warranty and continuous original spare parts supply:

14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
