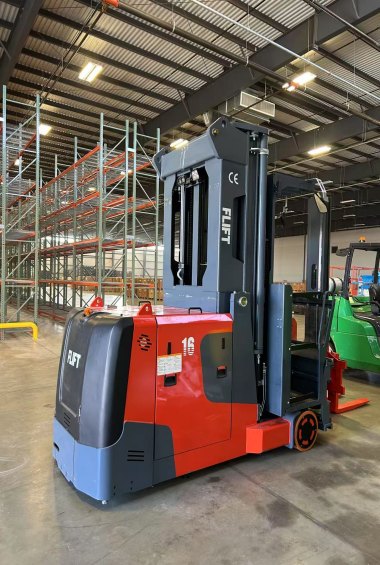

Man-Mounted turret trucks，VNA forklift，vna reach truck

Technical Parameters

Product name	Man-Mounted turret trucks
Model Series	MCC16-80
Maximum lifting weight	1600kg
Load center	600mm
Main lifting height	8000mm
Auxiliary lifting height	1700mm
Total lifting height	9700mm
The maximum height of mast when lifting	10630mm
Driving style deg	Seated/stand up
Tire configuration	PU
Power type	lead-acid battery
Fork size (LxWxT)	1200mm×125mm×50mm
Fork outer distance	260-725mm
Vehicle length (including fork)	3690mm
Vehicle width b1/ b2	1244mm/1502mm
Mast minimum ground clearance	45mm
Mast closed height	5415mm
Free lift height	/
Vehicle weight	7850KG
Turning radius (outside)	2235mm
Stacking Aisle width (1200*1000 pallets, load center 600)	1650mm
Maximum driving speed (full load/no load) km/h	10km/h
Rising speed (full load/no load) mm/s	320mm/s
Side moving speed (full load/no load) mm/s	200mm/s
Tire size Load-bearing side	Φ380×192
Tire Size Drive Side	Φ400×160
parking brake mode	Electromagnetic brake
Steering	electronic steering
Voltage/Power	80V/560AH
Drive motor	8 KW
Lifting motor	21 KW
How to replace the battery	Side-pull type
Main Aisle width mm	≥(4080+400)

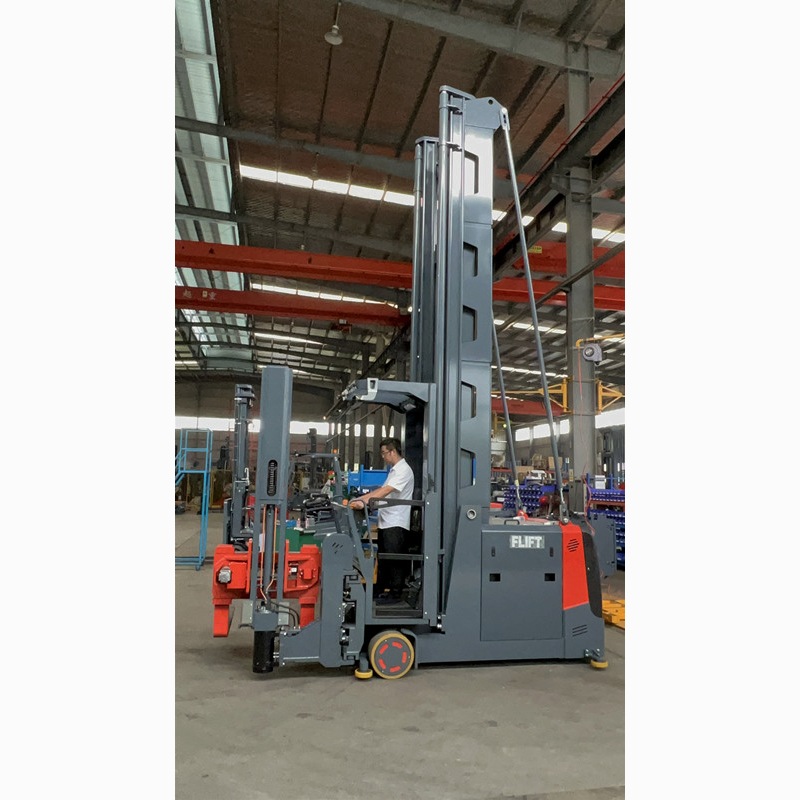

►FLIFT Man-Mounted turret Stacker forks can rotate 180°and do left-right side shift without body turning,

with high strength mast design. Min. net channel: 1500mm;
the main lifting height is 8.5 meters, the secondary lifting height is 1.7 meters,
and the total lifting height is 10.2 meters.
FLIFT vna reach truck can improve space utilization and increase the storage capacity.

►Advanced Curtis controller and more stable, safer whole-AC system
for high efficiency, energy conservation and environmental protection.

►Maintenance-free whole-AC driving system for quick and accurate reaction.
Maintenance-free motor, with long service life and low noise and low maintenance cost.

►Standard electric power steering is safe and reliable, with easy and comfortable operation.

►Large section mast structure design to ensure the rigidity
of mast and improve loading performances, which is very suitable for high shelf storage.

►Imported hydraulic parts for stable and reliable hydraulic system.

►Side pull type battery for convenient charging and maintenance.

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
