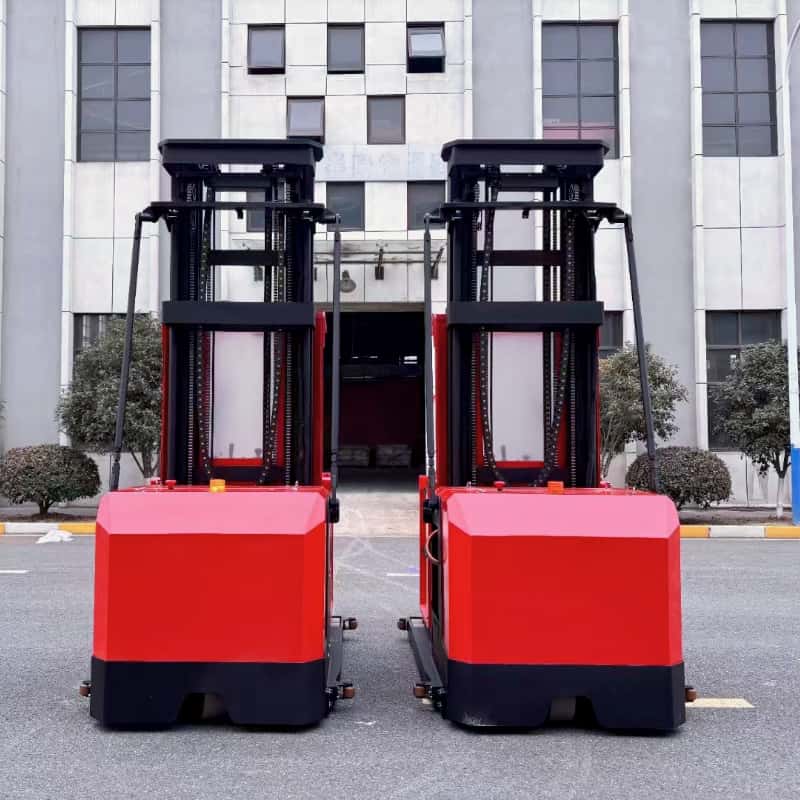

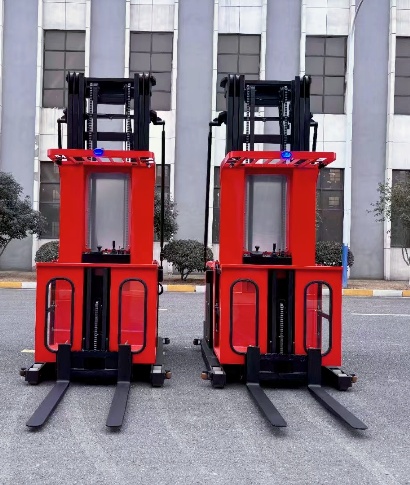

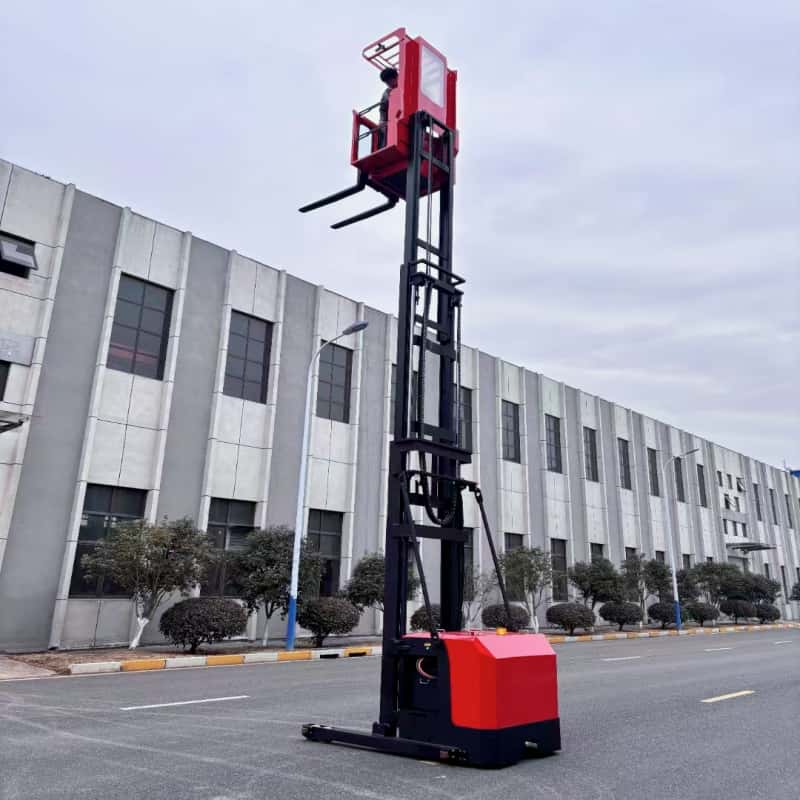

2000lb Electric Warehouse Order Picker for Fast and Reliable Operations
Load Capacity1000kg
Lifting Height6000-7500mm
Turning radius1715mm
Battery Capapcity24v/400ah
Brake typeElectromagnetic brake
We're here to help:Easy ways to get the answers you need.
- What is an auxiliary mast on an order picker and what advantages does it offer?
- The order picker auxiliary mast is an optional configuration that adds an extra lifting section to the forklift. It provides an additional 600mm lifting height, allowing operators to raise the load platform after picking items. With this feature, workers don’t need to bend down to carry goods — they can simply lift the auxiliary mast automatically and handle goods at a comfortable height. This optional setup improves picking efficiency, reduces operator fatigue, and enhances workplace safety.
.jpg)
Technical Parameters
|
1ton order picker forklift specifications |
||
|
Models |
|
CXD10-60 |
|
Drive mode |
|
Electric |
|
Driving Models |
|
standing |
|
Rated load |
Q(kg) |
1000 |
|
Center distance of load |
C(mm) |
500 |
|
Front suspension |
x(mm) |
226 |
|
Wheelbase |
y(mm) |
1515 |
|
Vehicle weight (including batteries) |
kg |
2850 |
|
No-load axle load,drive side/load-bearing side |
kg |
1560/1290 |
|
Full axle load,drive side/bearing side |
kg |
1075/2775 |
|
Type of tire |
|
PU |
|
Tire size,bearing side |
mm |
φ150x90 |
|
Tire dimensions,drive side |
mm |
φ230x75 |
|
Number of wheels,front/rear(x =drive wheels) |
|
4/2-1x |
|
Wheelbase,drive side |
(mm) |
685 |
|
Wheelbase,load bearing side |
(mm) |
1030 |
|
The fork tilts forward/backward |
h1(mm) |
2820 |
|
Closing height of door frame |
h2(mm) |
610 |
|
The maximum height of the door frame when lifting (including the shelf) |
h4(mm) |
8057 |
|
Height of roof support frame |
h6(mm) |
2297 |
|
Minimum height of forks |
h8(mm) |
50 |
|
Minimum height of operating table |
h5(mm) |
240 |
|
Maximum height of forks off the ground |
h3(mm) |
6370 |
|
Maximum height of operating table |
h7(mm) |
6000 |
|
Vehicle length |
L1(mm) |
2830 |
|
Vehicle width |
b1/b2 |
900/1160 |
|
Inner distance of outrigger leg |
b4 |
900 |
|
Fork size |
1/e/s |
920/100/40 |
|
Outside distance of forks |
b5(mm) |
240-700 |
|
Vehicle ground clearance |
m(mm) |
50 |
|
Stack channel width(pallet 1000x1200)1200 cross-fork direction |
Ast(mm) |
3425 |
|
Stack channel width(pallet 800x1200)1200 along fork direction |
Ast(mm) |
3395 |
|
Turn radius |
Wa(mm) |
1715 |
|
Speed,full/empty |
km/h |
4/5 |
|
Lifting speed,full/no load |
mm/s |
100/120 |
|
Rate of descent,full/no load |
mm/s |
140/110 |
|
Maximum climbing capacity,full/no load(S2-5MIN) |
% |
2/6 |
|
Braking mode |
|
Electromagnetic |
|
Drive Motor Power(S2-60MIN) |
kw |
2.2(AC) |
|
Lift motor power |
kw |
3 |
|
Battery,voltage/rated capacity |
V/Ah |
24/400 |
|
Weight of battery |
kg |
320 |
|
Steering mode |
|
Electric |
|
Battery replacement method |
|
Hoist type |
FEATURES
FLIFT 1ton Order Picker Series
Character:
1.Standard 6000mm lift height with 24v/400ah lead acid battery,and optional customized lift height.
2.Standard Body shock absorption system.
3.USA Curtis brand controller system.
4.The whole vehicle seals adopt Japanese NOK.
5.FLIFT order picker series all equipped with electromagnetic regenerative braking system.
6.Optional Lithium battery and subsidiary mast with 600mm lift height.
7.Drive Stepless speed regulation.
8.Electronic steering/electromagnetic brakes.
9.Use high strength 3 stage full free mast,wide-view.
10.Emergency power cut-off switch, Automatic deceleration in corners.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
