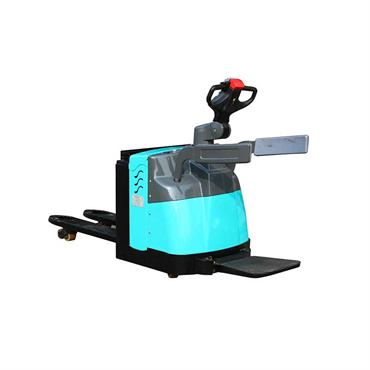

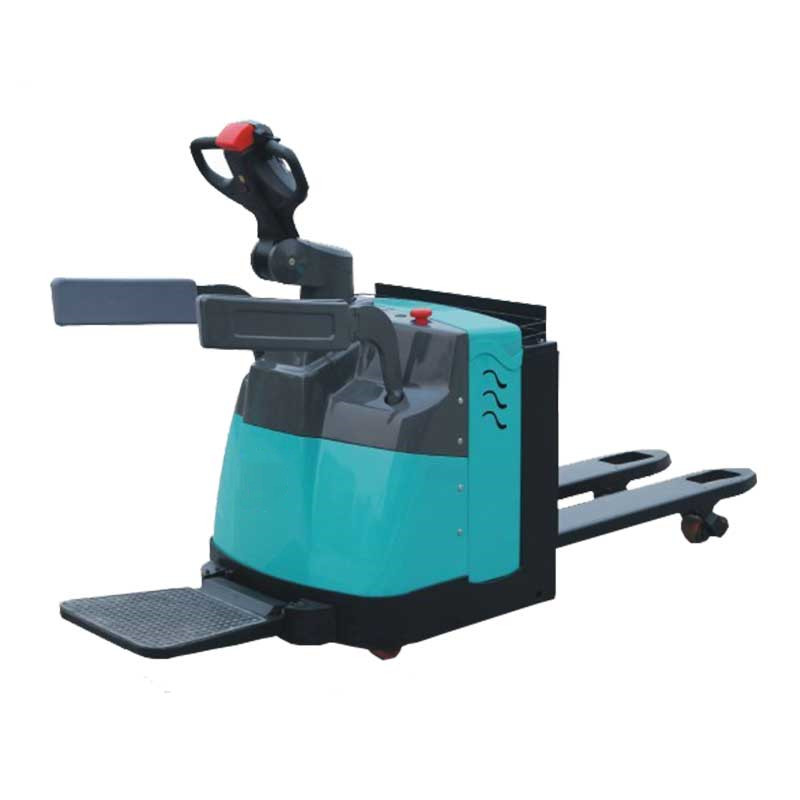

2 Ton Electric Pallet Truck
ModelFB2000,2500,3000
lift height205mm
Load center600mm
Drive motor1.5KW/24V
Lift motor2.2KW/24V
We're here to help:Easy ways to get the answers you need.
- 2 Ton Electric Pallet Truck
- small home lift workshop tools 2ton electric pallet truck
.jpg)
Technical Parameters
Technical Parameters| Model | FBT Series | |||
| Characteristic | ||||
| Rated capacity | kg | 2000 | 2500 | 3000 |
| Load center | mm | 600 | ||
| Service weight(with battery) | kg | 720 | ||
| Dimension | ||||
| lift height | mm | 205 | ||
| Height of fork,lowered | mm | 85 | ||
| Overall width | mm | 800 | ||
| Overall length(down pedal) | mm | 2317 | ||
| Fork size | mm | 1150x182x55 | ||
| Max.fork width | mm | 570(680) | ||
| Front tire size | mm | Ф85x70mm | ||
| Rear tire size | mm | Ф115x56mm | ||
| Drive tire size | mm | Ф220x74mm | ||
| Min. right angle aisle width with pallet(1000x1200) | mm | 2533 | ||
| Min. right angle aisle width with pallet(800x1200) | mm | 2410 | ||
| Max turning radius | mm | 1730 | ||
| Performance | ||||
| Gradeability(Full load/unload) | % | 8/16 | 6/10 | 5/10 |
| Driven | ||||
| Drive motor | KW | 1.5KW/24V | ||
| Lift motor | KW | 2.2KW/24V | ||
| Battery | ||||
| Voltage/capacity | Ah/V | 240Ah/24V | ||
FEATURES
Comfortable multifunction handle
Complete AC controller & motor system
Quiet hydraulic pump unit
High quality connectors
Emergency reverse braking and driving system
Special steering-assisted system
Fashion design
Foldable grille gives more safety
.jpg)
Applications
.jpg)
.jpg)
.jpg)
After-sales Service
Warranty and continuous original spare parts supply:
14 months or 1500 work-hour warranty period:
Frame, drive axle, wheel, rim, brake, brake pump, steering axle, steering cylinder, hydraulic pump, speed limit valve, fork, lift cylinder, tilt cylinder, control valve, hydraulic pipeline, water tank.
12 months or 1200 work-hour warranty period:
Engine ,hydraulic gear box, battery, instrument panel. Fan belt, all switches, plate friction outside and inside, generator and starter.
Our staff of sales and technical support is available to help you in selecting the right forklift, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive product supplying. Our ultimate goal is your satisfaction！
