FLIFT Brand 7 Ton Telescopic Forklift

Rated Load7000 kg

Load Center500 mm

Wheel base3370 mm


L*W*T1220*150*65 mm

We're here to help:Easy ways to get the answers you need.

7 Ton Telescopic Forklift
FLIFT brand 7 ton telescopic forklifts are widely used construction,agriculture,mining,port logistics and other industries.They can reducing the cost of ownership, saves you time, fuel, manpower and yard.

Items   HNT7017-4Z
Basic Parameters Rated load kg 7000
Load center mm 500
Load capacity kg 800
Max.Lifting height mm 16510
Max.Horizontal reach
(with out fork)
mm 11.8
Min.Ground clearance mm 425
Min.Turning radius mm 5757
Operating weight kg 17000
Dimension Length mm 6720
Width mm 2500
Height mm 2710
Wheel base mm 3370
Front wheel tread mm 2125
Rear wheel tread mm 2125
Fork Size L*W*T mm 1220*150*65
Engine DF Cummins QSB3.9-C125-30 QSB4.5-C160-30
Rated Power kw/rpm 119/2200
Transmission type Hydraulic
static transmission
Driving system Max.Traveling speed(unloaded) km/h 25
Gradeability % 25
Tier Front wheel  14.00-24-28PR
Rear wheel 14.00-24-28PR
Overall width mm 3790

 1.Equipping with Cummins China National III Standard turbocharged diesel engine
and high-pressure common rail fuel system, which has strong power,
energy saving and environmental protection, and meets the requirements of efficient operation.

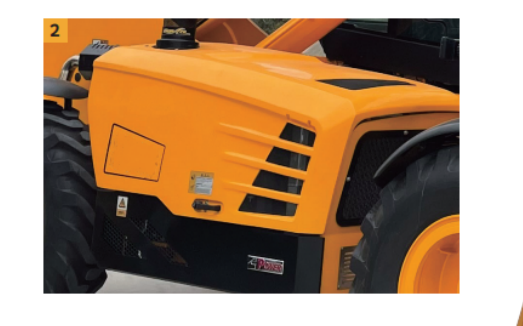

2.The power system is equipped with an air-to-air cooling radiator
to reduce the intake temperature of the engine,
increase the intake air volume, and increase the power of the engine.

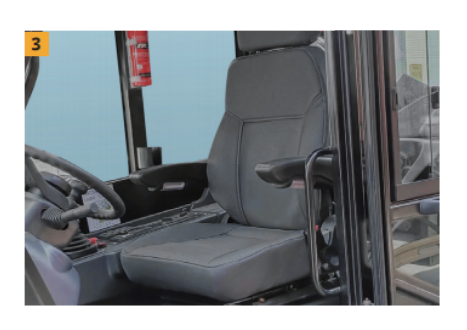

3.Adjustable steering wheel, aviation OPS seat, ergonomics, more comfortable sitting.

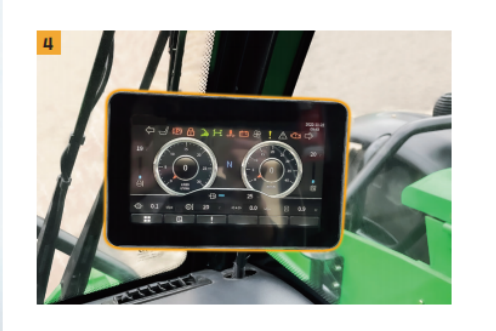

4.Multifunctional LCD monitor, comprehensively monitor the working status of the engine,
such as speed, oil pressure, oil temperature, water temperature, liquid level,etc.

5.Equipped with a HD reversing camera system, more handy in complex operating environments.


 We offer 2 years or 2000 working hours period of warranty to our partners.
In case of any defects or quality problems during the warranty period.
Maximal will supply technical and spare parts supports to help our partners solving the problems immediately.
7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
