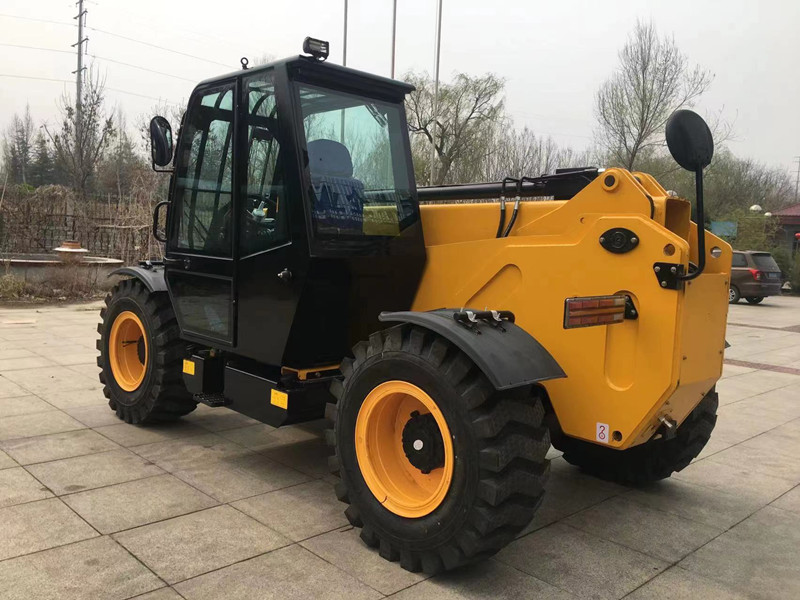

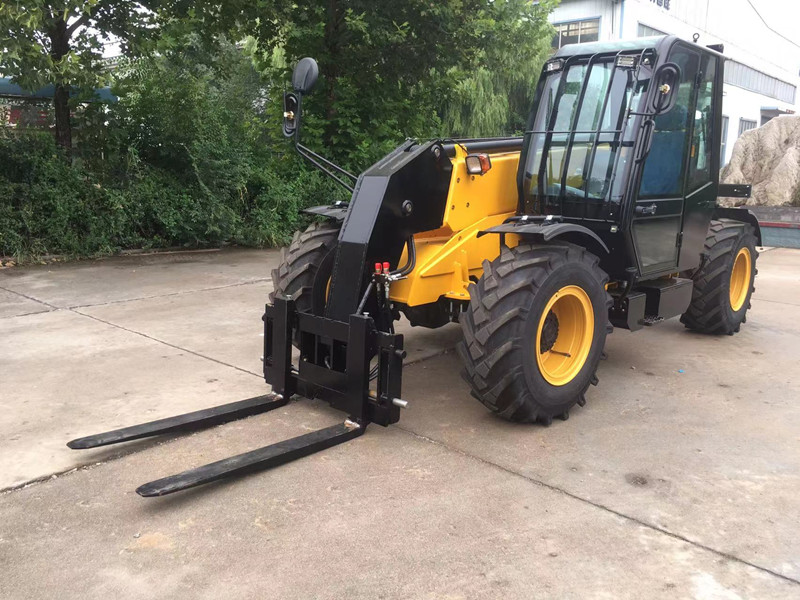

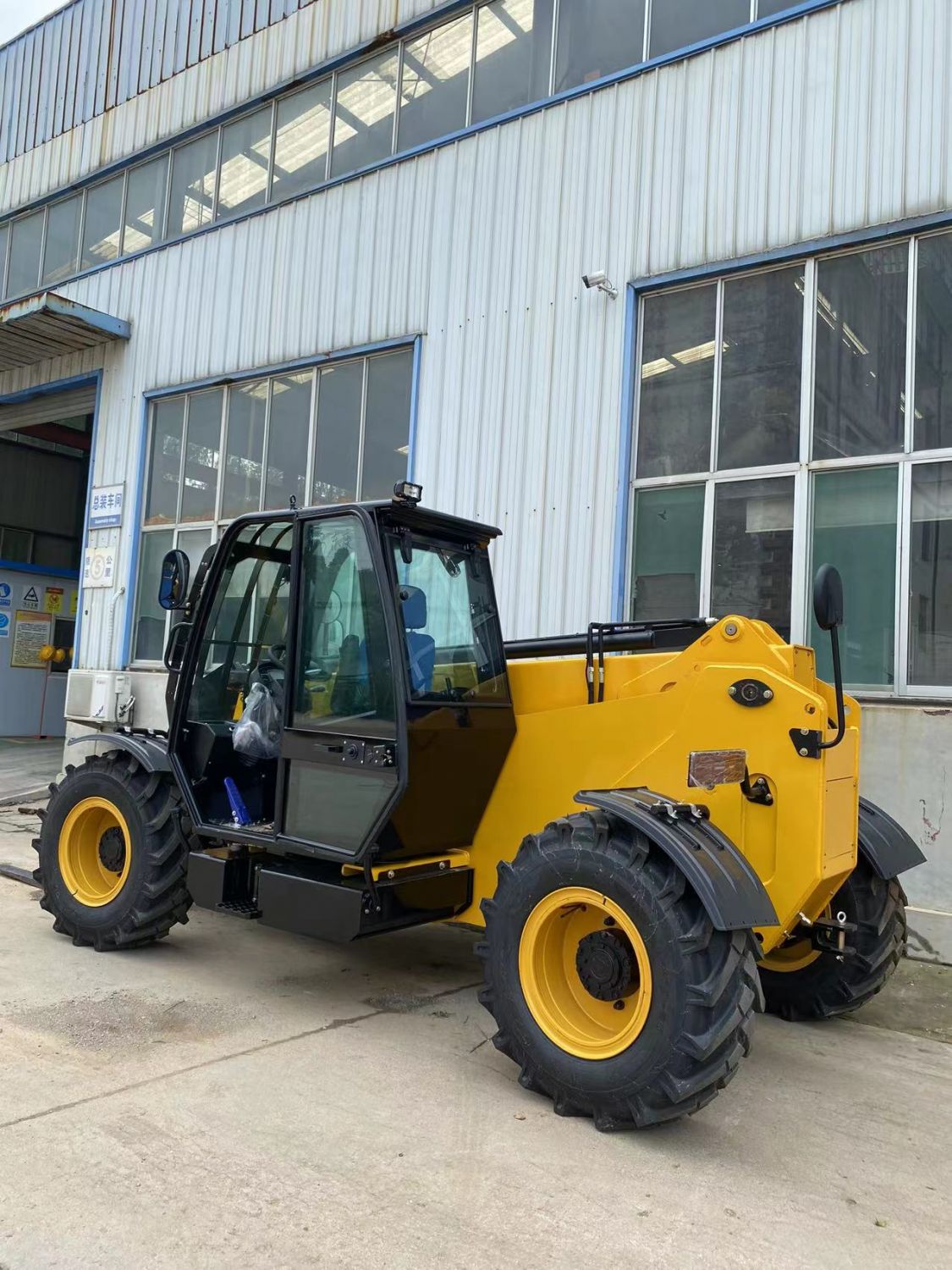

FLIFT Brand Telescopic Forklift on Sale
Overall Height2300 mm
Ground clearance350 mm
Weight unladen7250 kg
Maximum Lift Capacity3000 kg
Maximum forward reach3600 mm
We're here to help:Easy ways to get the answers you need.
- FLIFT Brand Telescopic Forklift on Sale
- FLIFT brand T30D telescopic forklift does everything a masted forklift does.....and more.Reducing the cost of ownership, saves you time, fuel, manpower and yard. Loading space, and telescopic forklift potential to replace several machines, which means you don't need as.
| TD30-68 | ||
| Dimension Parameter | Overall Height | 2300mm |
| Overall Width | 2150mm | |
| Inside width of cab | 800mm | |
| Front track | 1750mm | |
| Wheelbase | 2850mm | |
| Overall length to front tyres | 4200mm | |
| Overall length to front carriage | 4650mm | |
| Ground clearance | 350mm | |
| Outside turn radius | 4250mm | |
| Carriage roll back angle | 42.6 | |
| Carriage dump angle | 37.5 | |
| Weight unladen | 7250kg | |
| Tyres | 16/70-20 | |
| Fuel tank | 95L | |
| Hydraulic oil tank | 70L | |
| Drive speed | 23/Km | |
| Lift Performance | Maximum lift capacity | 3000kg |
| Lift capacity to full height | 2300kg | |
| Lift capacity at full reach | 1100kg | |
| Lift height | 6800mm | |
| Reach at muximum lift height | 450mm | |
| Maximum forward reach | 3600mm | |
| Reach with one ton load | 3600mm | |
| Engine Performance | Engine standard | Stage cn II |
| Manufacturer | YUNNEI | |
| Displacement | 3.76 | |
| No.of cylinders | 4 | |
| Bore Size | 102mm | |
| Stroke | 115mm | |
| Aspiration | Turbo | |
| Hydraulic Performance | Operating system pressure | 210bar |
| Main hydraulic gear pump | 110 Ltrs/min | |
| Hydraulic cycle times(unload) | seconds | |
| Boom raise | 10 | |
| Boom lower | 7 | |
| Boom extend | 12 | |
| Boom retract | 8.6 | |
| Bucket dump | 3.4 | |
| Bucket crowd | 4.8 | |
►Three Steering Models
2-wheel steer is perfect for loading
4-wheel steer provides great manoeuvrability in tight spaces.
Crab steer is designed to edge your telehandler either close to or away from walls.
►The Brake
Service brake: Air pressure activated, Drum brakes.
Parking brake: Hand operated disc brake on output of gear box.
►The Boom and Carriage
Boom is manufactured from high tensile steel.
Low maintenance, UHMWPE hard wearing pads.
Self-leveiling carriage with hydraulic pin locking quickhitch.
Accepts pallet forks and a wide range of attachments.
One boom and auxiliary hydraulic service fitted as standard.
►The Safety check valves
Fitted to carriage tilt cylinder, telescopic cylinder and boom lift cylinder.
►The Steering
Hydraulic cylinder power steering on both axles.
Three steer model options:front wheel steer; all wheel steer; crab steer.
All operated from in the cab by a selection switch.
.jpg)
2-wheel steer is perfect for loading
4-wheel steer provides great manoeuvrability in tight spaces.
Crab steer is designed to edge your telehandler either close to or away from walls.
►The Brake
Service brake: Air pressure activated, Drum brakes.
Parking brake: Hand operated disc brake on output of gear box.
►The Boom and Carriage
Boom is manufactured from high tensile steel.
Low maintenance, UHMWPE hard wearing pads.
Self-leveiling carriage with hydraulic pin locking quickhitch.
Accepts pallet forks and a wide range of attachments.
One boom and auxiliary hydraulic service fitted as standard.
►The Safety check valves
Fitted to carriage tilt cylinder, telescopic cylinder and boom lift cylinder.
►The Steering
Hydraulic cylinder power steering on both axles.
Three steer model options:front wheel steer; all wheel steer; crab steer.
All operated from in the cab by a selection switch.
.jpg)
(1).jpg)
(1).jpg)
(2).jpg)
.jpg)
We offer 2 years or 2000 working hours period of warranty to our partners.
In case of any defects or quality problems during the warranty period.
Maximal will supply technical and spare parts supports to help our partners solving the problems immediately.
7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
In case of any defects or quality problems during the warranty period.
Maximal will supply technical and spare parts supports to help our partners solving the problems immediately.
7x24 onlineservice are ready for you to ensure your equipments in excellent working condition.
