Technical Parameters

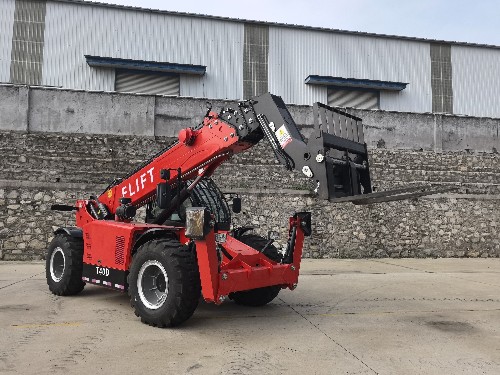

Telescopic boom forklift 3.0T-4Ton
Dimension Parameter	Load Capacity	3000kg	4000kg
	Overall Height	2300mm	2500mm
	Overall Width	2150mm	2350mm
	Inside width of cab	800mm	910mm
	Wheelbase	2850mm	3100mm
	Overall length to front tyres	4200mm	5030mm
	Overall length to front carriage	4650mm	6250mm
	Ground clearance	350mm	420mm
	Outside turn radius	4250mm	4500mm
	Carriage roll back angle	42.6	42.6
	Carriage dump angle	37.5	37.5
	Weight unladen	7250kg	11340Kg
	Tyres	16/70-20	16/70-24
	Fuel tank	95L	100L
	Hydraulic oil tank	70L	170L
	Drive speed	23/Km	23/Km
Lift Performance	Maximum lift capacity	3000kg	4000kg
	Lift capacity to full height	1500kg	2500kg
	Lift height	6800mm	1755mm
	Maximum forward reach	3100mm	13050mm
	Load Capacity of Maximum forward reach	2000kg	850Kg±2%
	Engine Manufacturer	CHINA YUNNEI	CHINA YUNNEI
	Displacement	3.76	3.76
	No.of cylinders	4	4
	Engine Type	Turbo	Turbo
	Engine Power	92kw/2400 r.p.m	92kw/2400 r.p.m
	Optional Engine	Cummins, Emission standard: EPA-Tier4.
Hydraulic Performance	Operating system pressure	210bar	210bar
	Main hydraulic gear pump	110 Ltrs/min	110 Ltrs/min
	Fork Leveling Mechanism	Hydraulic leveling	Hydraulic leveling

FEATURES

►Three Steering Models
2-wheel steer is perfect for loading
4-wheel steer provides great manoeuvrability in tight spaces.
Crab steer is designed to edge your telehandler either close to or away from walls.
►The Brake
Service brake: Air pressure activated, Drum brakes.
Parking brake: Hand operated disc brake on output of gear box.
►The Boom and Carriage
Boom is manufactured from high tensile steel.
Low maintenance, UHMWPE hard wearing pads.
Self-leveiling carriage with hydraulic pin locking quickhitch.
Accepts pallet forks and a wide range of attachments.
One boom and auxiliary hydraulic service fitted as standard.
►The Safety check valves
Fitted to carriage tilt cylinder, telescopic cylinder and boom lift cylinder.
►The Steering
Hydraulic cylinder power steering on both axles.
Three steer model options:front wheel steer; all wheel steer; crab steer.

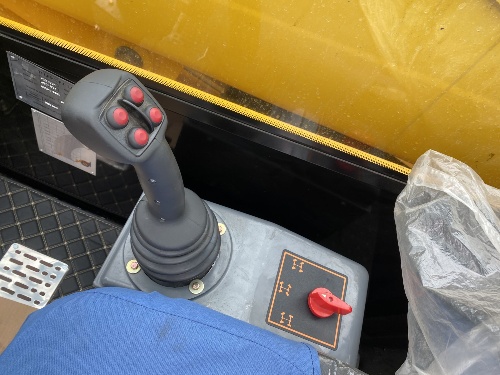

All operated from in the cab by a selection switch.

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
