1.6 Ton Double Deep Reach Truck | 6-10m Lifting Height Warehouse Reach Forklift
Load Capacity1600kg
Lifting Height3000mm-10000mm
Turning radius1950mm
Battery Capapcity48v/400ah
Max. Gradeability 6% (Full load)
We're here to help:Easy ways to get the answers you need.
- Single Scissor Reach Truck vs. Double Deep Reach Truck – Which Warehouse Forklift Do You Need?

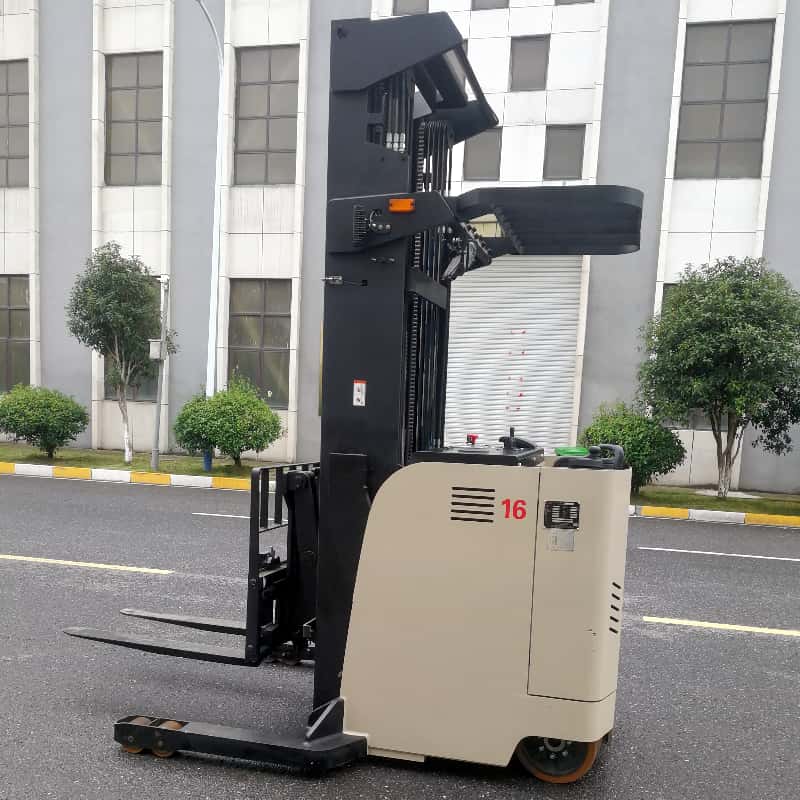

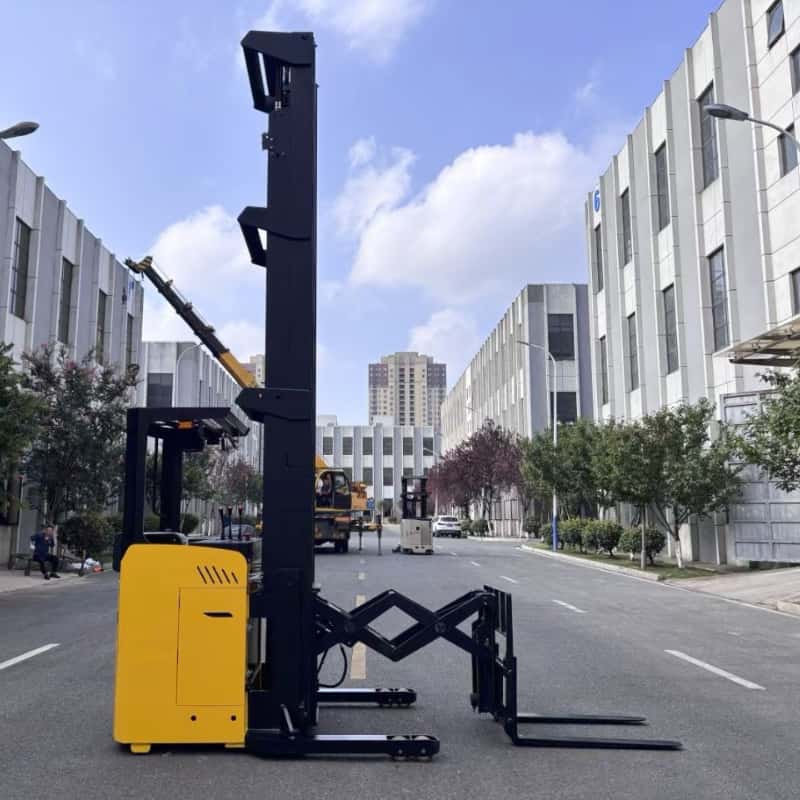

- A single scissor reach truck is designed for standard racking, with a reach distance of about 600mm, making it suitable for handling only the first row of pallets. In contrast, the double deep reach truck extends up to 1020mm, allowing operators to reach the second row of pallets in double-deep racking systems. This design increases storage density by up to 30% while optimizing aisle space. Both types of warehouse reach forklifts are effective, but choosing the right one depends on your warehouse layout, storage capacity needs, and efficiency goals.
Technical Parameters
|
1.6T double deep reach truck specifications |
||
|
Models |
|
CQD16J |
|
Drive mode |
|
Electric |
|
Driving Models |
|
Seated/Standing |
|
Rated load |
Q(kg) |
1600 |
|
Center distance of load |
C(mm) |
500 |
|
Front suspension |
x(mm) |
280 |
|
Wheelbase |
y(mm) |
1670 |
|
Vehicle weight (including batteries) |
kg |
4150 |
|
No-load axle load,drive side/load-bearing side |
kg |
2630/1520 |
|
Full axle load,fork forward,drive side/bearing side |
kg |
1200/4550 |
|
Full axle load,fork recovery,drive side/bearing side |
kg |
2405/3345 |
|
Type of tire |
|
PU |
|
Tire size,bearing side |
mm |
φ130x85 |
|
Tire dimensions,drive side |
m |
343x135 |
|
Tire dimensions,drive side |
mm |
φ100x50 |
|
Number of wheels,front/rear (x =drive wheels) |
|
4/1X-2 |
|
Wheelbase,drive side |
mm |
960 |
|
Wheelbase,load bearing side |
Ⅲm |
1407 |
|
The fork tilts forward/backward |
0 |
3/5. |
|
Closing height of door frame |
hl(mm) |
2980 |
|
Free rise height |
h2(mm) |
2050 |
|
Elevation |
h3(mm) |
6000 |
|
The maximum height of the door frame when lifting (including the shelf) |
h4(mm) |
6970 |
|
Height of roof support frame |
h6(mm) |
2190 |
|
Height of station board |
h7(mm) |
316 |
|
Height of the outrigger from the ground |
h8(mm) |
130 |
|
Vehicle length |
L1(mm) |
2705 |
|
Vehicle width |
b1/b2 |
1270/1520 |
|
Fork size |
1/e/s |
1070/122/40 |
|
Rack width(add bolt) |
b3(mm) |
850 |
|
Outside distance of forks |
b5(mm) |
266-720 |
|
Inner distance of outrigger leg |
b4(mm) |
1280 |
|

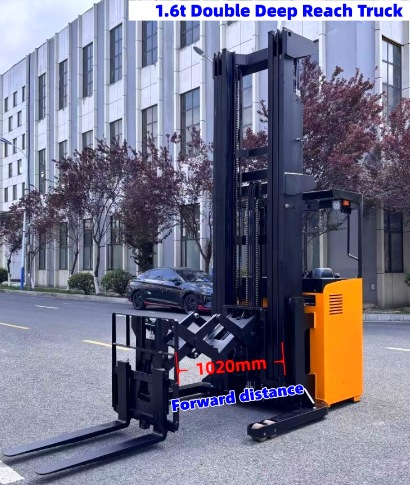

Forward distance |
L4(mm) |
1020 |
|
Ground clearance of door frame |
m |
130 |
|
Vehicle ground clearance |
m(mm) |
50 |
|
Stack channel width( (pallet 1200x1000)1200 cross-fork direction |
Ast(m) |
3085 |
|
Stack channel width(pallet 1200x800)1200 along fork direction |
Ast(mm) |
3150 |
|
Turn radius |
Wa(mm) |
1950 |
|
Speed,full/empty |
km/h |
7.8/8 |
|
Lifting speed,full/no load |
mm/s |
140/280 |
|
Rate of descent,full/no load |
mm/s |
300/150 |
|
Maximum climbing capacity,full/no load(S2-5MIN) |
% |
6 |
|
Braking mode |
|
Electromagnetic Brake |
|
Drive Motor Power(S2-60MIN) |
kw |
6.5(AC) |
|
Lift motor power |
kw |
8.6 |
|
Battery,voltage/rated capacity |
V/Ah |
48/400 |
|
Weight of battery |
kg |
655 |
|
Steering mode |
|
Electric |
|
Battery replacement method |
|
Side pull type |
FEATURES
1600kg double deep high reach forklift
Character:
1.Shimadzu brand low noise hydraulic pump and valve.
2.Equipped with standard Body shock absorption system.
3.USA Curtis brand communication control system.
4.The whole vehicle seals adopt Japanese NOK.
5.Electromagnetic regenerative braking system.
6.Optional side shifter and customized lifting height.
7.Stepless speed regulation,safety and mute.
8.Electronic steering/electromagnetic brakes,and Cylinder safety shut- off valve.
9.Standard forks tilt forward and backward function and optional lithium battery.
10.Emergency power cut-off switch, Automatic deceleration in corners.
.jpg)
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
