4000 lb Scissor Lift Reach Truck | 3-Stage 6m Mast for Warehouse Efficiency

Technical Parameters

2T scissor reach forklift specification
MODEL		CQD20J
Type of power		Lead-acid battery
Driving type		Seated/Stand-on type
Rated load	Q(kg)	2000
Lifing height	h3(mm)	6000
Overall length	L1(mm)	2610
Overall width	b1/b2	1260/1520
Fork dimensions	s/e/l(mm)	1070/122/40
Outside width of forks	b5(mm)	266-720
Inside width of support legs	b4(mm)	1280
The fork lean forward/backward		3/5.
Mast closed height	h1(mm)	2980
Free lifting height	h2(mm)	2050
Max height of mast during lifting (including load backrest)	h4(mm)	7065
Height of overhead guard	h6(mm)	2325
Height of station board	h7(mm)	360
Height of support legs off the ground	h8(mm)	130
Width of load backrest (add bolt)	b3(mm)	850

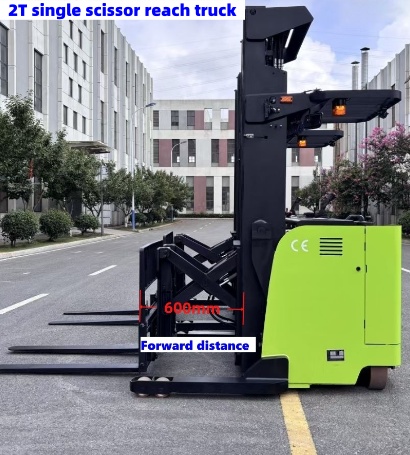

Forward distance	L4(mm)	600
Min height of mast off the ground	mm	130
Height of vehicle off the ground	m(mm)	50
Battery.voltage/capacity	V/Ah	48/400
Weight of battery	kg	655
Vehicle weight (including battery)	kg	4000
Driving motor Power(S2-60MIN)	kw	6.5(AC)
Lifing motor power	kw	8.6
Tire		Polyurethane
Tire dimensions,drive wheel	mm	φ343x135
Tire dimensions,bear wheel	mm	φ130×85
Tire dimensions,balance wheel	mm	φ180×76
Number o wheels,front/rear(x=drive wheel)		4/1X-2
Wheel track,drive Side	mm	830
Wheel track,bear Side	mm	1407
Wheelbase	y(mm)	1707
Load center	C(mm)	500
Front overhang	x(mm)	280
Turn radius	Wa(mm)	1975
Stacking channel width (pallet 1200×1000)1200 cross-fork direction	Ast(mm)	3030
Stacking channel width (pallet 1200×800)1200 along fork direction	Ast(mm)	3080
Full axle load,fork forward,drive side/bear side	kg	1645/4355
Full axle load,fork recovery,drive side/bear side	kg	2365/3635
No-load axle load,drive side/load-bear side	kg	2510/1490
Driving speed,full load/no load	km/h	7.8/8
Lifting speed,full load/no load	mm/s	140/260
Descent speed,full load/no load	mm/s	300/150
Braking type	Electromagnetic brake
Steering type	Electronic steering
Battery replacement method	Side pull type

FEATURES

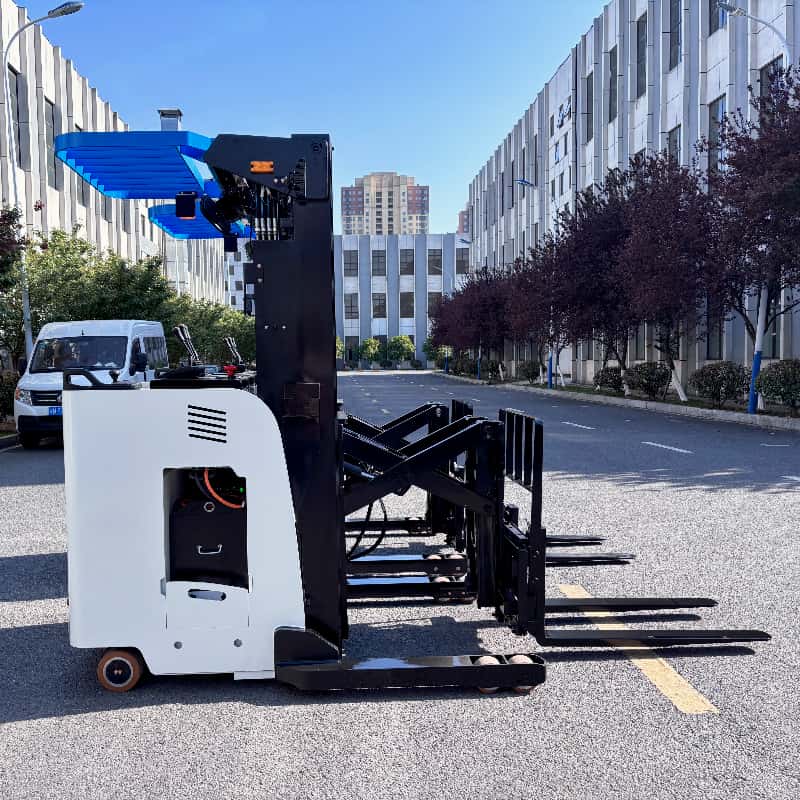

2000kg Scissor Reach Forklift
Character:
1.Shimadzu brand low noise hydraulic pump and valve.
2.Equipped with standard Body shock absorption system.
3.USA Curtis brand communication control system.
4.The whole vehicle seals adopt Japanese NOK.
5.Electromagnetic regenerative braking system.
6.Optional side shifter and customized lifting height.
7.Stepless speed regulation,safety and mute.
8.Electronic steering/electromagnetic brakes,and Cylinder safety shut- off valve.
9.Standard forks tilt forward and backward function and optional lithium battery.
10.Emergency power cut-off switch, Automatic deceleration in corners.

narrow aisle reach truck

Applications

reach lift truck double reach forklifts

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
