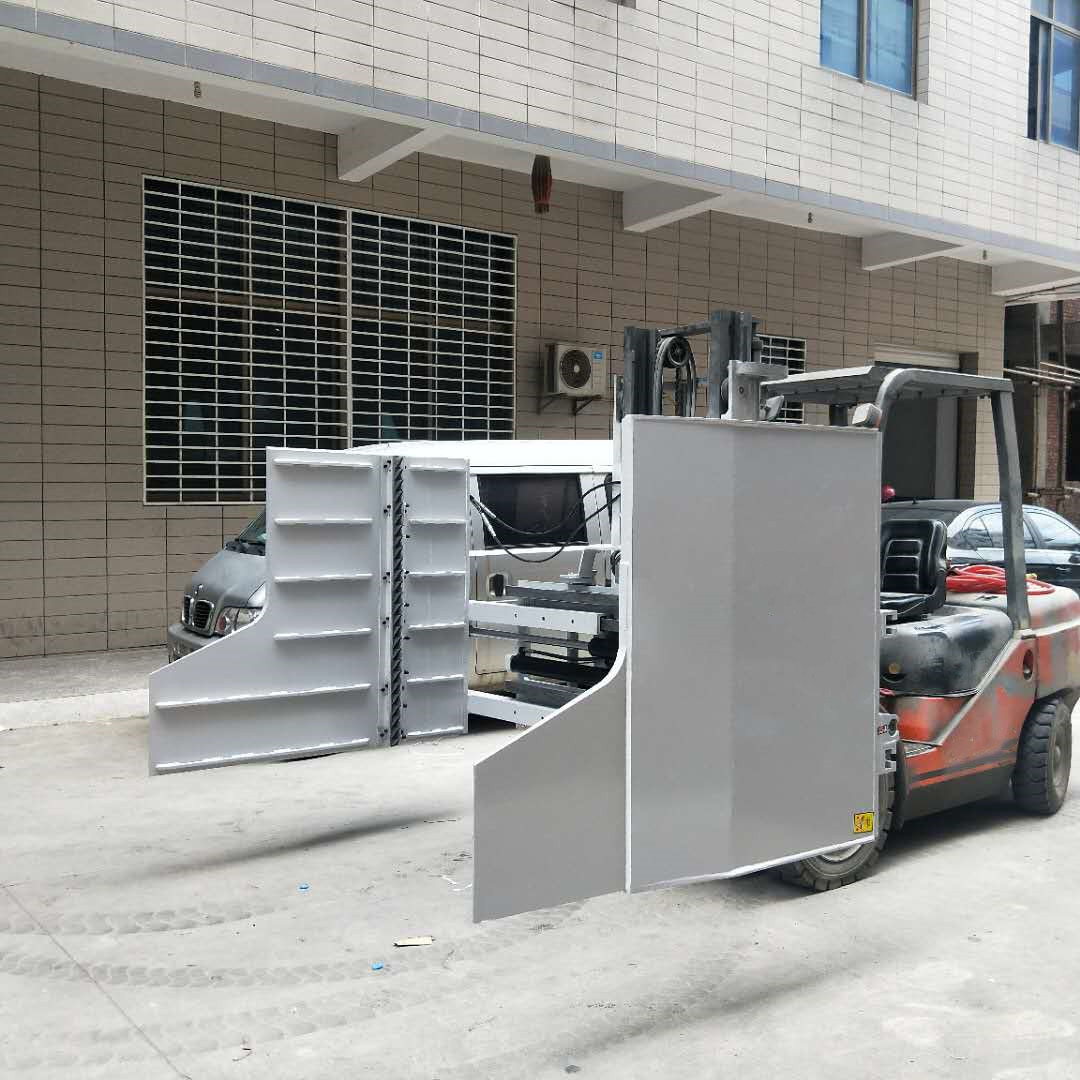

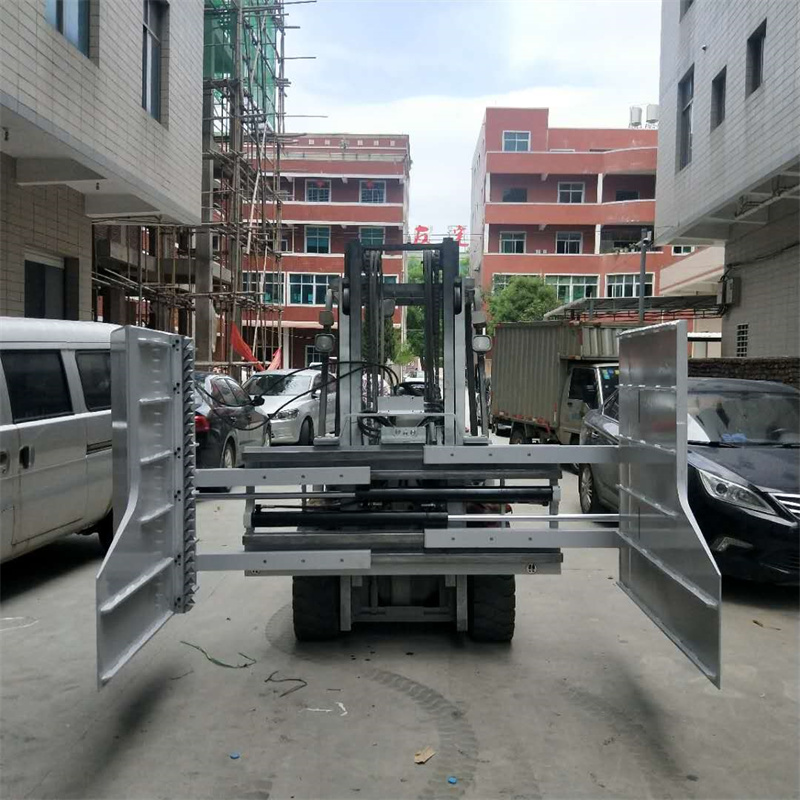

Durable ,Forklift Attachment, Waste Paper Fixture

Mounting group

软包夹 Bale Clamp
序号	数量	零件号	描述
REF	QTY	PART NO.	DESCRIPTION
1	4	695852	请勿搁手标签 No hand hold decal
2	2	695855	请勿登踏标签 No step decal

X55F-CXJ-04B
序号	数量	零件号	名称	序号	数量	零件号	名称
REF	QTY	PART NO.	DESCRIPTION	REF	QTY	PART NO.	DESCRIPTION
			安装组件Mounting Group	10	2	766511	下钩Spacer-Lowe
1	1	102356	框架Frame
2	1	152685	阀体保护架Valve body protection frame
3	2	785596	Ⅲ级上钩垫块 Ⅲ stage hook block
4	1	758899	阀体总成 Valve Group-
5	1	766512	止动块 Stop block
6	2	785560	上钩垫块Upper Hook hook block
7	2	785562	下钩垫块Spacer-Lower Hook
8	1	--	门架
9	1	766510	上钩Upper Hook

Cylinder

X55F-CXJ-04B
序号 REF	数量 QTY	零件号 PART NO.	名称 DESCRIPTION	序号 REF	数量 QTY	零件号 PART NO.	名称 DESCRIPTION
			油缸总成Cylinder Assy.	12	1	662451	油封Seal■
1	2	1230570	开口销 2.5×40 Cotter Pin▲	13	1	638246	挡圈Nylon Ring■
2	2	200148	护圈Retainer▲	14	1	628047	防尘圈Wiper■
3	2	667667	螺母Nut▲	15	1	561012	螺母0.875-14UNF NUT
4	1	667668	缸体总成Shell Assy.	16	1	1230572	活塞杆Rod
5	1	1230571	#8圆柱螺塞, #8Plug	17	1	667676	垫圈Washer
6	1	602580	活塞Piston	18	1	667609	节流阀 Restrictor Cartridge●
7	1	670893	O形圈O-Ring■	19	3	662104	帽塞Plug
8	1	662457	油封Seal■	20	1	671049	活塞导套 Seal Loader ,Piston■
9	1	2791	O形圈O-Ring■	21	1	671052	导套 Seal Loader,Retainer■
10	1	615134	挡圈Back-Up Ring■	22		667223	维修包 Service Kit
11	1	667675	导向套Retainer

▲Included in Nut Kit 668925.

■Included in Service Kit 667723.

●Not included in Cylinder Assembly.

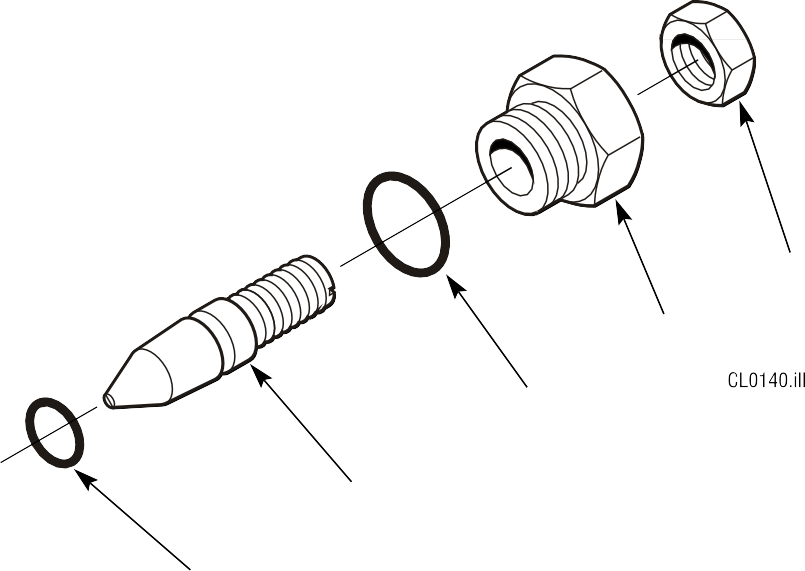

Restrictor Cartridge

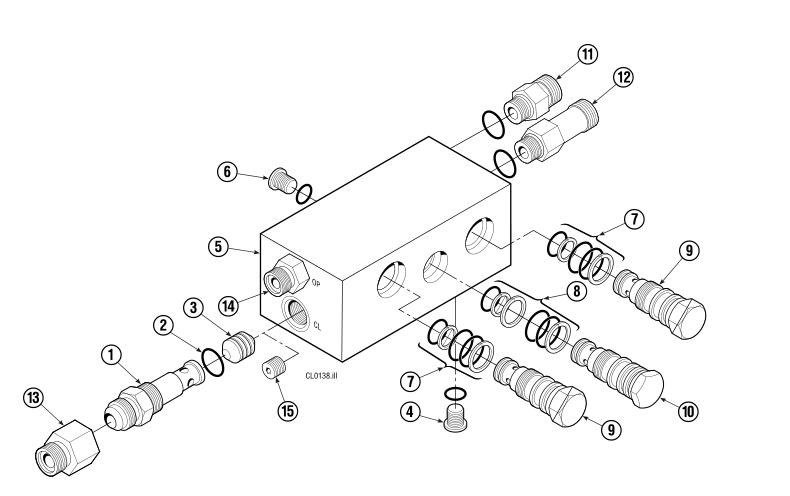

Valve Group Sideshifting

X55F-CXJ-04B
序号	数量	零件号	描述	序号	数量	零件号	描述
REF	QTY	PART NO.	DESCRIPTION	REF	QTY	PART NO.	DESCRIPTION
		668915	阀体Valve Group	10	1	678270	VPO单向阀Check Valve – VPO
		668865	单向阀－侧移式Check Valve-Sideshifting▲	11	1	100057	接头Fitting
1	1	667490	接头Special Fitting	12	1	1230524	接头Fitting
2	1	2841	O型密封圈 O-Ring●	13	1	100169	接头Fitting
3	1	667471	阀心 Spool	14	1	100035	接头 3/4"→M18 FITTING
4	1	609455	接头 Fitting	15	1	676343	防震片Regeneration Elimination Plug■
5	1	668866	阀体 Valve Body	16		668868	维修组件 Service Kit
6	1	604510	接头 Fitting
7	2	667516	维修组件 Service Kit ●
8	1	661347	维修组件 Service ●
9	2	659058	PO单向阀 Check Valve-PO

▲Includes items 1-10 only.

●Included in Service Kit 668868.

■For eliminating regeneration circuit only. See Tech. Bulletin 121.

Reference: SK-5302, Valve Guard Groups 670005, 670006.

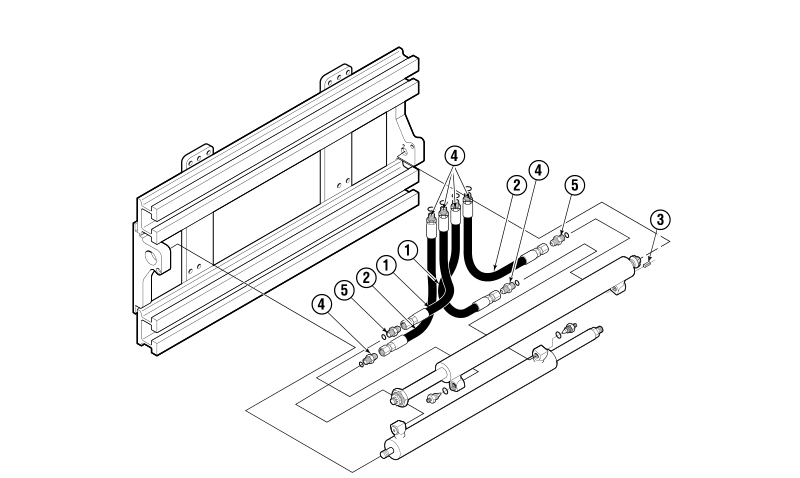

Hose Group

X55F-CXJ-04B
序号	数量	零件号	名称
REF	QTY	PART NO.	DESCRIPTION
1	2	1241619	胶管Hose L=460
2	2	1241620	胶管Hose L=680
3	2	7961	弹性圆柱销8×20 Roll Pin
4	6	611288	接头#6 - #8, Fitting
5	2	686369	接头#6 - #8, Fitting

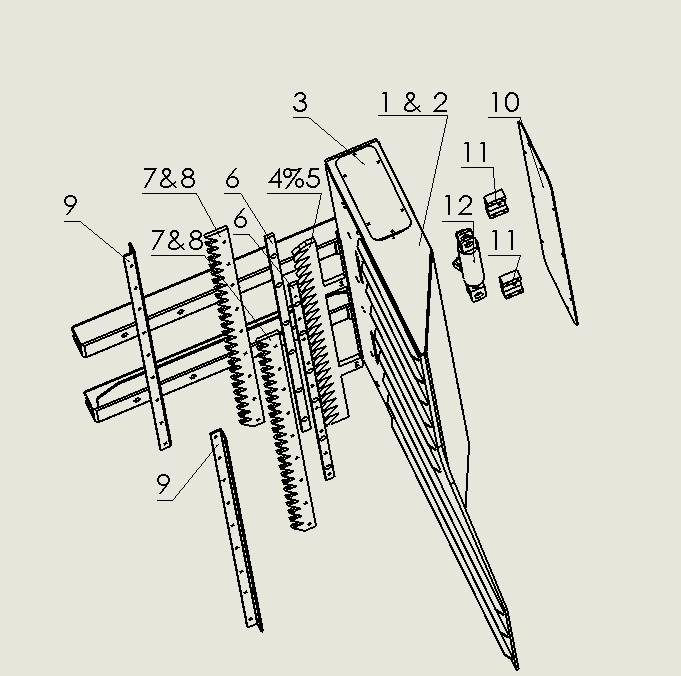

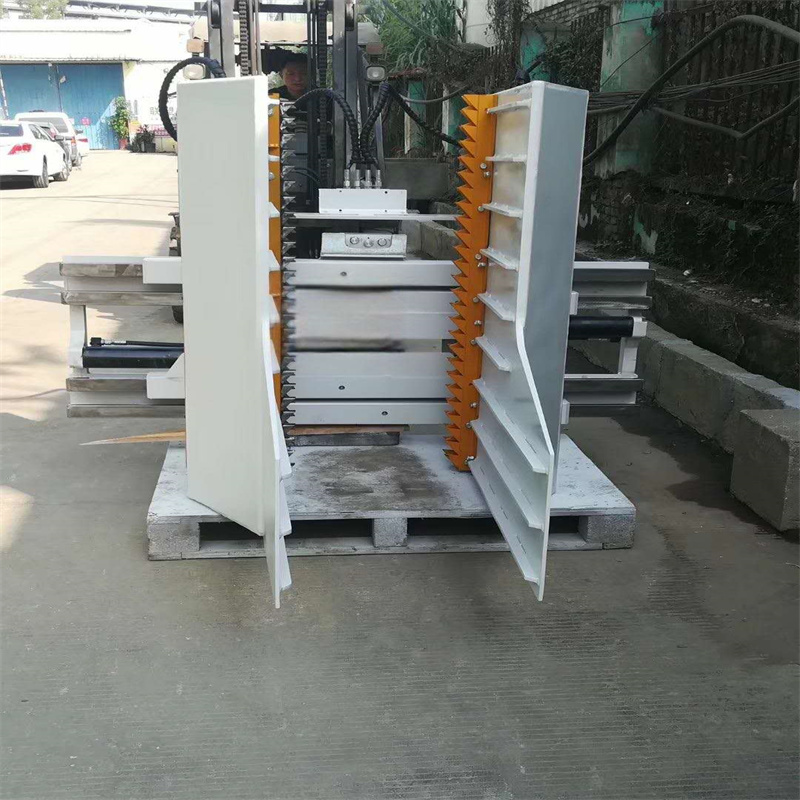

Bale Arms

X55F-CXJ-04B
序号	数量	零件号	名称	序号	数量	零件号	名称
REF	QTY	PART NO.	DESCRIPTION	REF	QTY	PART NO.	DESCRIPTION
			安装组件Mounting Group	10	1	1522241	侧面封板Side sealing plate
1	1	776589	左臂框架Left arm frame	11	2		滑动固定座Sliding fixed seat
2	1	776689	右臂框架Right arm frame	12	1		剪切油缸Shear cylinder
3	2	1254285	端面封板End seal plate
4	1	1556521	中间勾线板Intermediate hook plate
5	1	1556621	中间切线板Intermediate tangent plate
6	2	778095	加强版Strengthened Edition
7	2	1556535	外侧勾线板Outer hook plate
8	1	1556635	外侧切线板Lateral tangent plate
9	2	1144523	角钢Angle steel

Installation Introductions

1.Innovative Design;
2.Simplified Serviceability;
3.Enhanced Productivity;
4. Forklift trucks need to add two additional multi-way valves.
5.The third oil pipe need to be connected with these two joints on the right side of the valve body of the Waste paper fixture. it will be used to control the opening and clamping functions of the Waste paper fixlture.
6.The fourth oil pipe need to be connected with the two oil inlets of the solenoid valve, and a wire is connected to the solenoid valve. The solenoid valve is normally for the thread trimming function.
7.After the solenoid valve is energized, the fourth oil pipe will be switched to the side shift function.
