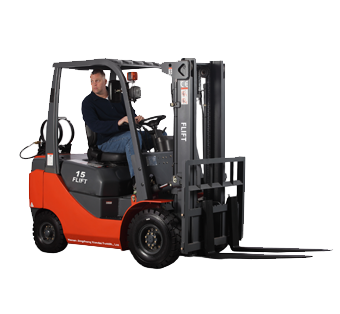

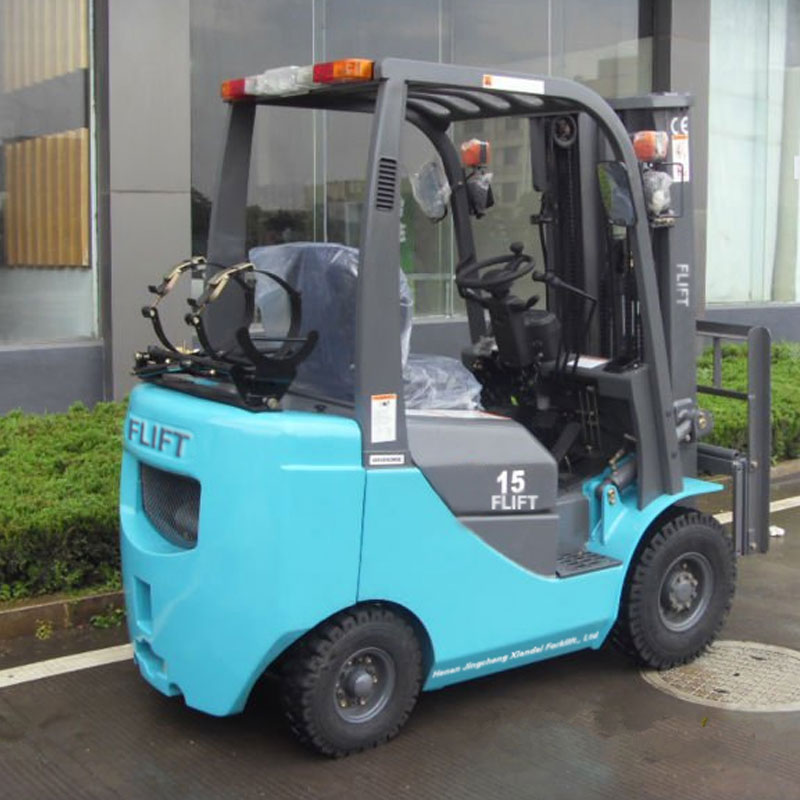

1.5 Ton Dual Fuel LPG Forklift Truck
ModelFY15
Capacity1500kg
Load center500mm
Lift height3000mm-600mm
Gasoline Engine Brand Nissan K21
We're here to help:Easy ways to get the answers you need.
- 3000LBS Dual Fuel Pneumatic Forklift
- Dual fuel lift truck, 1.5T LPG Gas Dual Fuel Forklift offers robust performance and flexibility. Discover reliable lifting for every application..
Technical Parameters
|
Model |
|
FY 15 |
|
Capacity |
kg |
1500 |
|
Load center |
mm |
500 |
|
Lift height |
mm |
3000 |
|
Fork size(LxWxH) |
mm |
920x120x35 |
|
Mast tilt angle(F/R) |
Deg |
6°/12° |
|
Length to face of fork |
mm |
2295 |
|
Overall width |
mm |
1086 |
|
Mast lowered height |
mm |
1995 |
|
Mast extended height |
mm |
3940 |
|
Overhead guard height |
mm |
2040 |
|
Turning radius |
mm |
2055 |
|
Front overhang |
mm |
420 |
|
Ground clearance |
mm |
420 |
|
Wheelbase |
mm |
1400 |
|
Travel (no load) |
km/h |
15 |
|
Lifting (full load) |
mm/s |
450 |
|
Gradeability(laden) |
% |
20 |
|
Service weight |
kg |
2820 |
|
Front tire |
|
6.50-10-10PR |
|
Rear tire |
|
5.00-8-10PR |
|
Battery (voltage/capacity) |
v/ah |
12/ 80 |
|
Engine model |
|
k21 |
|
Engine rated output/r.p.m |
kw |
31.2/2250 |
|
Engine rated torque/r.p.m. |
n.m |
143.7/1600 |
|
Engine No. of cylinder |
|
4 |
|
Bore x stroke |
mm |
89x83 |
|
Displacement |
cc |
2065 |
|
Fuel tank capacity |
L |
45 |
|
LPG tank capacity |
L |
35 |
FEATURES
Propane and Gasoline Forklift
Character:
1.Fuel Flexibility. Can switch between LPG (propane) and gasoline,ensuring continuous operation even if one fuel type is unavailable.
2.Integrated overhead guard design.The robust overhead guard provides superior protection against falling objects,further safeguarding operators. Boost safety and efficiency.
3.Rich optional Engine Configurations.We equip with Nissan K21 / K25 Gasoline engine, and Hign-end America PSI 2.4 Gasoline engine with EPA-tier-4 Emission standard.
4.Wide-View Mast and Solid-state LCD dashboard.Improves operator visibility, enhancing safety and efficiency during material handling. provide clear, real-time information about the forklift’s status,aiding in preventive maintenance.
5.Reduced Downtime.Quick refueling with either gasoline or LPG means less waiting time compared to battery charging in electric forklifts.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
