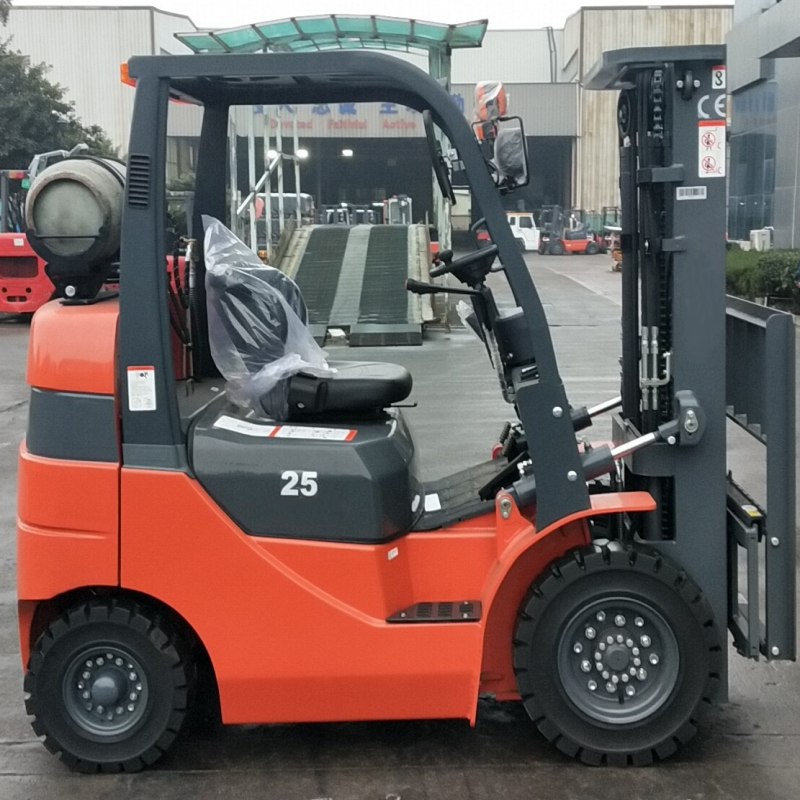

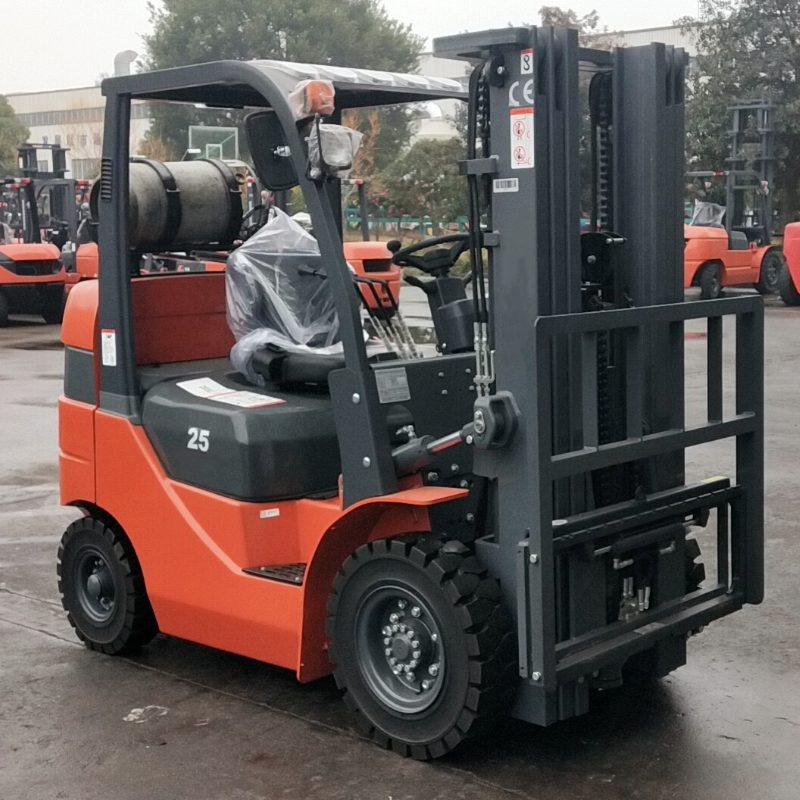

Short Wheelbase LPG Forklift 4400lbs-5500lbs
ModelFY20- FY25
Load Capacity2000kg-2500kg
Lift Height3000mm-5500mm
Max.Gradeability20%
Power TypeLPG / Gasoline
We're here to help:Easy ways to get the answers you need.
- Why Businesses Choose Short wheelbase LPG Cushion Tire Forklift ?
- Superior Maneuverability, The short wheelbase design ensures smooth operation in narrow aisles,crowded warehouses,and confined environments.
LPG forklifts usually produce less noise compared to diesel forklift, improving workplace comfort.Cushion tire have a smaller turning circle and a lower center of gravity, Enabling cushion tire forklifts provide excellent stability when lifting heavy loads.
Technical Parameters
|
2000-2500kg Box Car Special Forklift Specification |
|||
|
Model |
|
FY 20 |
FY 25 |
|
Capacity |
kg |
2000 |
2500 |
|
Load center |
mm |
500 |
500 |
|
Lift height |
mm |
3000 |
3000 |
|
Fork size(LxWxH) |
mm |
1070x120x40 |
1070x120x40 |
|
Mast tilt angle(F/R) |
Deg |
6°/12° |
6°/12° |
|
Length to face of fork |
mm |
2355 |
2355 |
|
Overall width |
mm |
1110 |
1110 |
|
Mast lowered height |
mm |
2070 |
2070 |
|
Mast extended height |
mm |
4070 |
4070 |
|
Overhead guard height |
mm |
2080 |
2080 |
|
Turning radius |
mm |
2110 |
2110 |
|
Front Tread |
mm |
902 |
902 |
|
Rear Tread |
mm |
900 |
900 |
|
Front overhang |
mm |
445 |
445 |
|
Rear overhang |
mm |
510 |
510 |
|
Ground clearance |
mm |
80 |
80 |
|
Wheelbase |
mm |
1400 |
1400 |
|
Travel (Full load) |
km/h |
16 |
16 |
|
Travel (No load) |
km/h |
17 |
17 |
|
Lifting (full load/No load) |
mm/s |
530/570 |
530/570 |
|
Gradeability(laden) |
% |
20 |
20 |
|
Service weight |
kg |
3445 |
3655 |
|
Front tire |
|
21x7x15 |
21x7x15 |
|
Rear tire |
|
16x6x11 |
16x6x11 |
|
Battery (voltage/capacity) |
v/ah |
12/ 80 |
12/ 80 |
|
Engine model |
|
PSI2.4 |
PSI2.4 |
|
Engine rated output/r.p.m |
kw |
48/2700 |
48/2700 |
|
Engine rated torque/r.p.m. |
n.m |
170/2400 |
170/2400 |
|
Engine No. of cylinder |
|
4 |
4 |
|
Bore x stroke |
mm |
89x100 |
89x100 |
|
Displacement |
cc |
2351 |
2351 |
|
Fuel tank capacity |
L |
55 |
55 |
|
LPG tank capacity |
L |
35 |
35 |
FEATURES

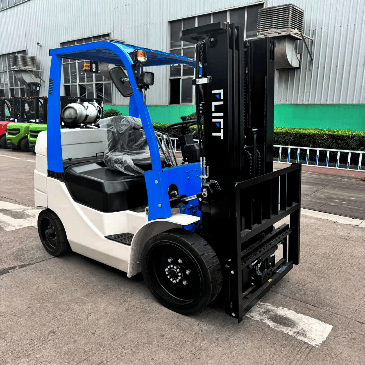

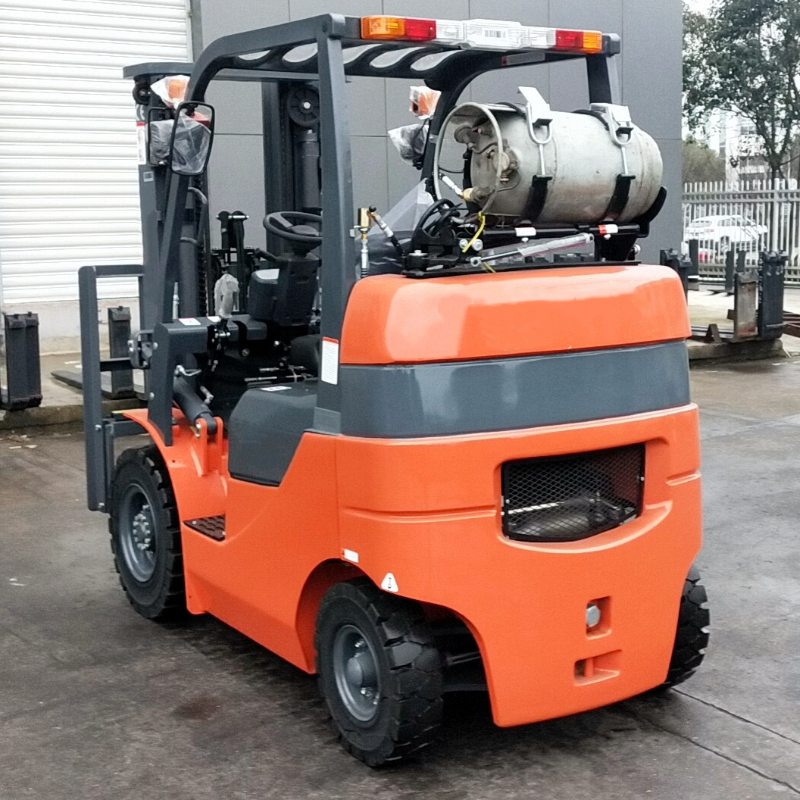

LPG Cushion Tire Forklift
Character:
1.The forklift comes standard with a large diameter panoramic mirror, effectively eliminating the blindness of the blind field and improve the traffic safety.Adjustable seats (adjust range up to 150mm), and small diameter steering wheel, suitable for different drivers.
2.Integrated overhead guard design.The robust overhead guard provides superior protection against falling objects,further safeguarding operators. Boost safety and efficiency.
3.We equip with American PSI 2.4 Gasoline engine with EPA-tier-4 Emission standard.
4.Tilt cylinder sink inside to the car body, foot brake suspension structure layout, flat plate design,comfortable and large space driving experience.
5.Short wheelbase design, large corner steering axle, front and rear wheels standard with cushion tires, effectively reduce the turning radius.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
