  • Hinged Forks

Hinged Forks

BrandLDSJ

NameHinged Forks

Applicationforklift

We're here to help:Easy ways to get the answers you need.

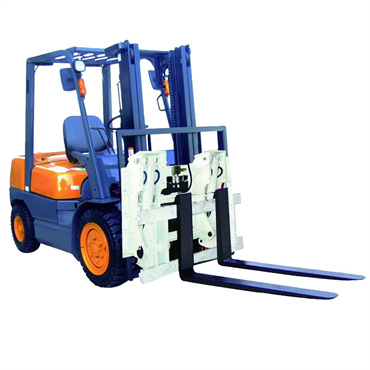

Hinged Forks
Specifically designed for all tonnages of forklifts with international standard.With the forklift attachments, forklift will play its role to the best.



Technical Parameters

型号 载荷能力/ 横梁 失载距 水平 自重 前/后倾角 安装等级
Model 载荷中心 宽度 Effective Thickness 重心 Weight Forward (倾翻架
  Capacity Frame Width   Horizontal   /Bard /货叉)Mounting
  /Load     Center   Angle Class
  Center     of Gracity     (Hinged Forks
              /Tine)
    A C CGH
  KG/MM MM MM MM KG º
G08B20-110A22 2000/500 1100 380 230 490 45//35 2//2
G08B25-110B32 2500/500 1100 390 240 520 45//35 3//2
G08B25-110B33 2500/500 1100 390 240 520 45//35 2//3
G08B30-120B33 3000/500 1200 390 210 650 45//35 3//3
G08B35-120B33 3500/500 1200 390 210 750 45//35 3//3
G08B45-135B33 4500/500 1350 400 260 900 45//35 3//3
G08B45-135C43 4500/500 1350 400 260 900 45//35 4//3

FEATURES

Forklift attachments are an unique tool for forklifts
Characte
r:
1.More convenient and safe
2.Multifunctional with different usages
3.Easy to assemble and dissemble
4.Coordinate with forklifts wonderfully

Applications

After-sales service

Warranty policy :
If anything go wrong within 12months from the date of purchase we will pay for parts to have the repairs conducted with shipping expenses paid by the buyer.
We will not be responsible for damage cause by the user or owner or lack of required maintenance
or abuse.
