3.5T Diesel Forklift for Paper Handling with Dual Front Tires & Cascade Clamp

Technical Parameters

3.5t Diesel Forklift with dual front tires with 5m mast and Cascade paper roll clamp Specifications
Model		FD 35
Capacity	kg	3500
Load center	mm	500
Lift height	mm	5000
Fork size(LxWxH)	mm	107012550
Mast tilt angle(F/R)	Deg	6°/12°
Length to face of fork	mm	2865
Overall width (Dual front tires)	mm	1454
Mast lowered height	mm	2175
Mast extended height (with backrest)	mm	4160
Overhead guard height	mm	2305
Turning radius	mm	2600
Min. right angle aisle width	mm	2530
Front overhang	mm	480
Ground clearance	mm	135
Wheelbase	mm	1700
Travel (no load)	km/h	19
Lifting (full load)	mm/s	420
Gradeability(laden)	%	20
Service weight	kg	5600
Front tire		28x9-15-12PR
Rear tire		6.50-10-10PR
Battery (voltage/capacity)	v/ah	(12V/80Ah)
Engine model		Mitsubishi S4S
Engine rated output/r.p.m	kw	35.3/2500
Engine rated torque/r.p.m.	n.m	176/1800
Engine No.of Cylinder		4
Bore x stroke	mm	94x120
Displacement	cc	3330
Fuel tank capacity	L	60
Cascade Paper Roll Cllamp Attachment	Load capacity	2200kg
	Open range	200mm-1400mm
	Rotator degress	360°
	Paper Roll Clamp Attachment Service weight	700kg

FEATURES

Paper Roll Clamps For Forklifts
Character:
1:Purpose-Built for Paper Roll Handling
Equipped with a genuine Cascade paper roll clamp, dramatically improving handling efficiency.
2:High Attachment Load Capacity at Working Height
The paper roll clamp offers a 2200kg load capacity,ensuring stable performance when lifting heavy paper rolls in demanding industrial environments.
3:Wide Clamp Opening Range for Versatile Applications
With an opening range of 200mm to 1400mm, suit for a wide variety of paper roll diameters used.
4:360° Hydraulic Rotation for Precise Positioning
Allows accurate alignment and placement of paper rolls,significantly improving operational flexibility.
5:Enhanced Stability with Dual Front Tires
This design increases load stability,especially when handling heavy rolls at height.
6:Strong Lifting Performance with Mitsubishi Engine
3-stage full free mast enables safe and efficient high-rack operation in confined spaces,Mitsubishi S4S engine delivers reliable torque,fuel efficiency.

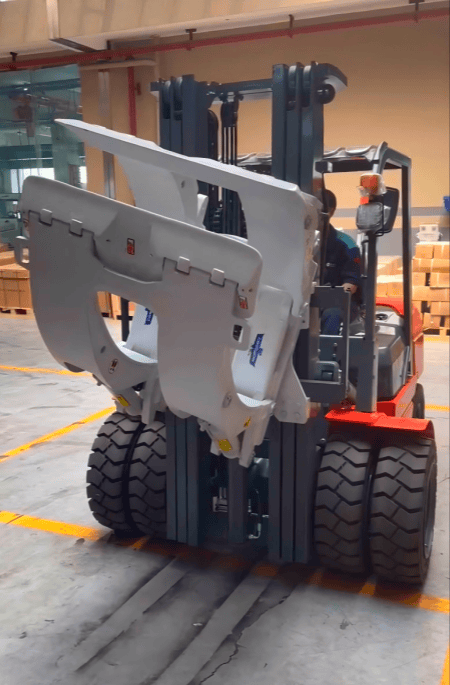

paper roll handling equipment

Applications

Clamp forklifts for sale forklift clamp attachment price Clamp truck forklifts

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
