Technical Parameters

FLIFT Internal Combustion 8000lb-8800lb Diesel Forklift Specifications
Model		CPCD-40	CPCD-38
Brand(OEM acceptable)		FLIFT	FLIFT
Power Source		Diesel	Diesel
Capacity	kg	4000	3800
Load center	mm	500	500
Lift height（Duplex wide-view mast）	mm	3000	3000
Fork size(LxWxH)	mm	122012250	122012250
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°
Length to face of fork	mm	2990	2990
Overall width	mm	1240	1230
Mast lowered height	mm	2140	2130
Mast extended height	mm	4240	4230
Mast free lift height	mm	140	130
Overhead guard height	mm	2155	2145
Turning radius	mm	2720	2720
Min. right angle aisle width	mm	2920	2920
Front overhang	mm	490	490
Rear Overhang	mm	600	600
Ground clearance	mm	130	130
Wheelbase	mm	1900	1900
Front wheel base	mm	1000	1000
Rear wheel base	mm	970	970
Travel (no load/load)	km/h	19.5/19	18.5/19
Lifting (full load/no load)	mm/s	370/400	370/400
Gradeability(laden/no load)	%	15/20	15/20
Service weight	kg	5000	4800
Front tire		250-15-16PR	28x9-15 -14PR
Rear tire		650-10-10PR	650-10-10PR
Battery (voltage/capacity)	v/ah	12V/80Ah	12V/80Ah
Engine model		CHUANCHAI V29	CHUANCHAI V29
Engine rated output/r.p.m	kw	36.8/2500	36.8/2500
Engine rated torque/r.p.m.	n.m	170/1800	170/1800
Engine No.of Cylinder		4	4
Displacement	cc	2850	2850
Fuel tank capacity	L	105	105

FEATURES

1.The side rollers are above the main rollers.When the shelf is raised to a higher position,the left and right shaking amplitude is greatly reduced,which improves the stability of high-position operation and reduces the bearing failure rate.
2. Adjustable steering wheel and safety seat.
3. The small diameter steering wheel (φ300)with adjustable inclination angle designed according to ergonomics has a good feel and reduces the fatigue intensity of the operator.
4. Adopting digital stepping instrument panel and CAN bus communication technology,the display is more intuitive,the human-machine interaction is high.
5. The widened mast design provides the driver with a wider field of vision.The mast is made of CJ steel,which is sturdy and durable,and driving is safer.
6. The iron air filter +high-level independent air intake channel two-stage air purification design makes diesel combustion more complete and prolongs engine life.
7. The cast one-piece steering axle uses tapered main-shaft bearings for higher impact resistance and longer service life, while integrated buffer blocks reduce vibration, improve comfort.

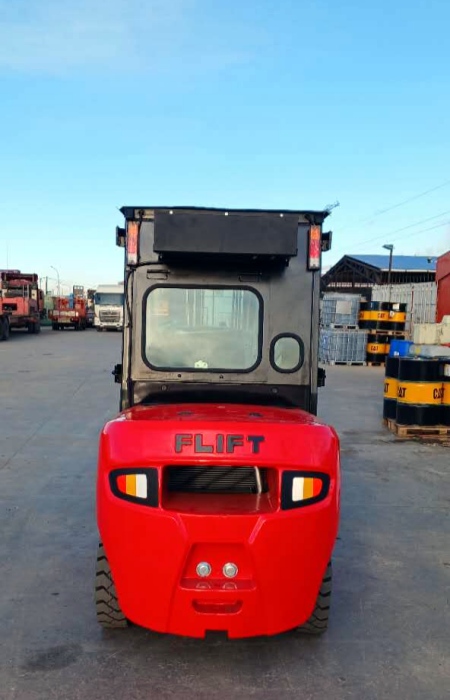

8k Pneumatic Diesel Forklift

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
