CNG Forklifts Are Revolutionizing Warehouse Sustainability Worldwide

Technical Parameters

Model		FG10	FG15	FG18
Capacity	kg	1000	1500	1800
Load center	mm	500	500	500
Lift height	mm	3000	3000	3000
Fork size(LxWxH)	mm	920x120x35	920x120x35	920x120x35
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°	6°/12°
Length to face of fork	mm	2215	2295	2295
Overall width	mm	1086	1086	1086
Mast lowered height	mm	1995	1995	1995
Mast extended height	mm	3940	3940	3940
Overhead guard height	mm	2040	2040	2040
Turning radius	mm	1975	2055	2055
Front overhang	mm	420	420	420
Ground clearance	mm	420	420	420
Wheelbase	mm	1400	1400	1400
Travel (no load)	km/h	15	15	15
Lifting (full load)	mm/s	460	450	440
Gradeability(laden)	%	20	20	20
Service weight	kg	2490	2820	3000
Front tire		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
Rear tire		5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
Battery (voltage/capacity)	v/ah	12/ 80	12/ 80	12/ 80
Engine model		k21	k21	k21
Engine rated output/r.p.m	kw	31.2/2250	31.2/2250	31.2/2250
Engine rated torque/r.p.m.	n.m	143.7/1600	143.7/1600	143.7/1600
Engine No. of cylinder		4	4	4
Bore x stroke	mm	89x83	89x83	89x83
Displacement	cc	2065	2065	2065
Fuel tank capacity	L	45	45	45

FEATURES

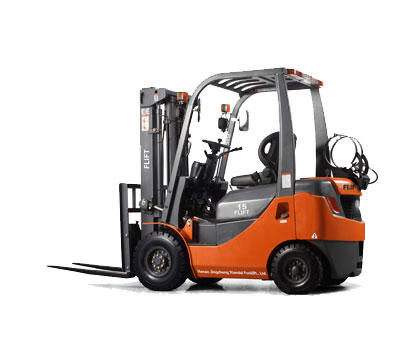

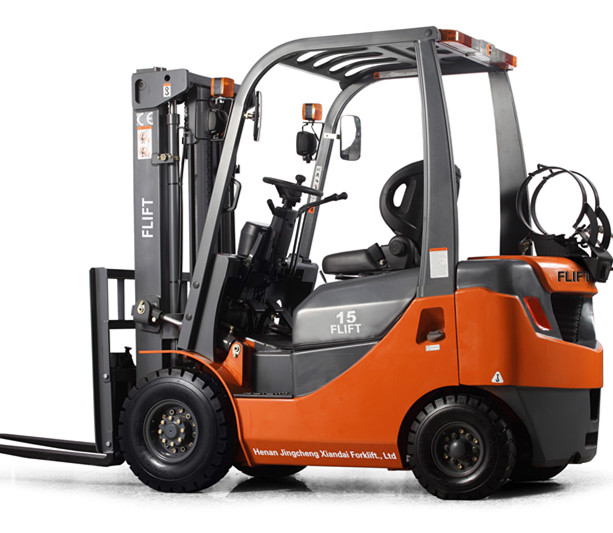

Compressed Natural Gas forklift
Character:
1.Integrated overhead guard design.The robust overhead guard provides superior protection against falling objects,further safeguarding operators. Boost safety and efficiency.
2.Rich optional Engine Configurations.We equip with Nissan K21 / K25 Gasoline engine, and Hign-end America PSI 2.4 Gasoline engine with EPA-tier-4 Emission standard.
3.Wide-View Mast and Solid-state LCD dashboard.Improves operator visibility, enhancing safety and efficiency during material handling. provide clear, real-time information about the forklift’s status,aiding in preventive maintenance.
4.CNG is cleaner than other fuels, emitting less nitrogen oxides, carbon monoxide, particulate matter and CO2.

Applications

gas forklift truck gasoline forklift

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
