  • Rotator

Rotator

BrandLDSJ

NameRotator

Applicationforklift

We're here to help:Easy ways to get the answers you need.

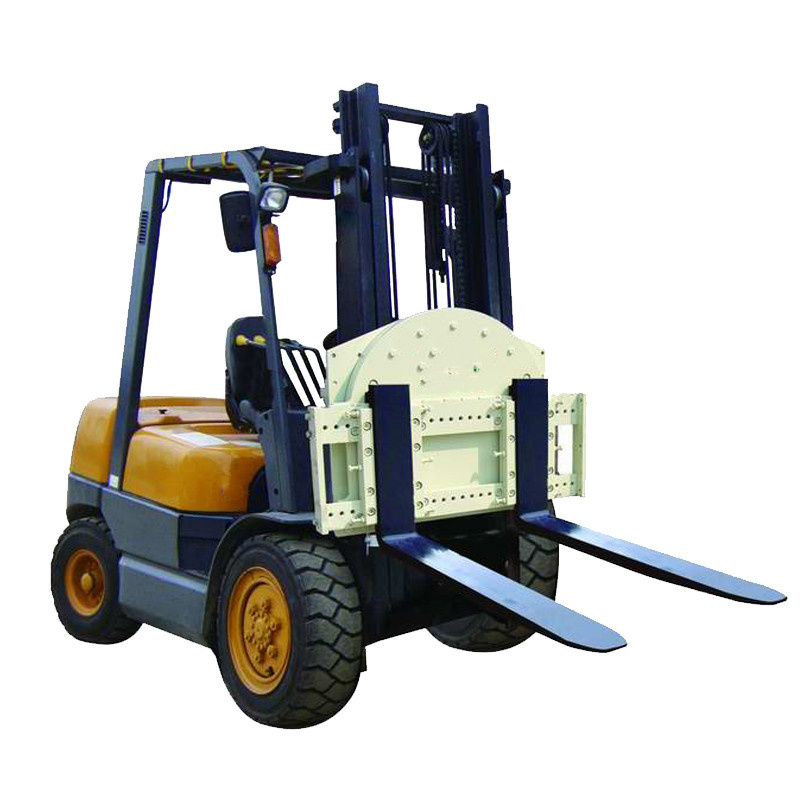

Rotator
Specifically designed for all tonnages of forklifts with international standard.With the forklift attachments, forklift will play its role to the best.



Technical Parameters

型号 载荷能力/ 横梁 失载距 水平 自重 垂直 框架 安装等级
Model 载荷中心 宽度 Effective Thickness 重心 Weight 重心 宽度 (旋转器/货叉)Mounting Class(Rotators/Tine)
  Capacity/ Bar Width   Horizontal   Vertical Frame Width
  Load     Center   Center
  Center     Of   Of
        Gracity   Gravity
    A C CGH   CGV B
  KG/MM MM MM MM KG MM MM
G10R18-800A22 1800/500 800 135 85 220 270 825 2/2
G10R18-950A22 950 230 975
G10R22-185A22 2200/500 850 150 80 295 305 875 2/2
G10R22-950A22 950 305 975
G10R30-950A22   950 150 82 310   975 2/2
G10R30-115A22 3000/500 1150 325 265 1175
G10R30-950B33   950 190 110 325   975 3/3
G10R30-115B33   1150 340   1175
G10R35-110B33 3500/500 1100 200 120 385 285 1125 3/3
G10R35-120B33 1200 400 1225
G10R40-100B33   1000     430   1025
G10R40-120B33 4000/600 1200 165 90 440 345 1225 3/3
G10R40-150B33   1500     470   1525
G10R45-100B33   1000 165 80 460 345 1025 3/3
G10R45-100C43   210 130 510 285 4/3
G10R45-120B33 4500/600 1200 165 80 500 340 1225 3/3
G10R45-120C43   210 130 540 280 4/3
G10R45-150B33   1500 165 80 510 335 1525 3/3
G10R45-150C43   210 130 560 275 4/3
G10R50-150C44 5000/600 1500 210 130 570 280 1525 4/4
G10R50-150C45
G10R50-160C45 5000/600 1600 210 130 870 280 1525 4

FEATURES

Forklift attachments are an unique tool for forklifts
Characte
r:
1.More convenient and safe
2.Multifunctional with different usages
3.Easy to assemble and dissemble
4.Coordinate with forklifts wonderfully

Applications

After-sales service

Warranty policy :
If anything go wrong within 12months from the date of purchase we will pay for parts to have the repairs conducted with shipping expenses paid by the buyer.
We will not be responsible for damage cause by the user or owner or lack of required maintenance
or abuse.
