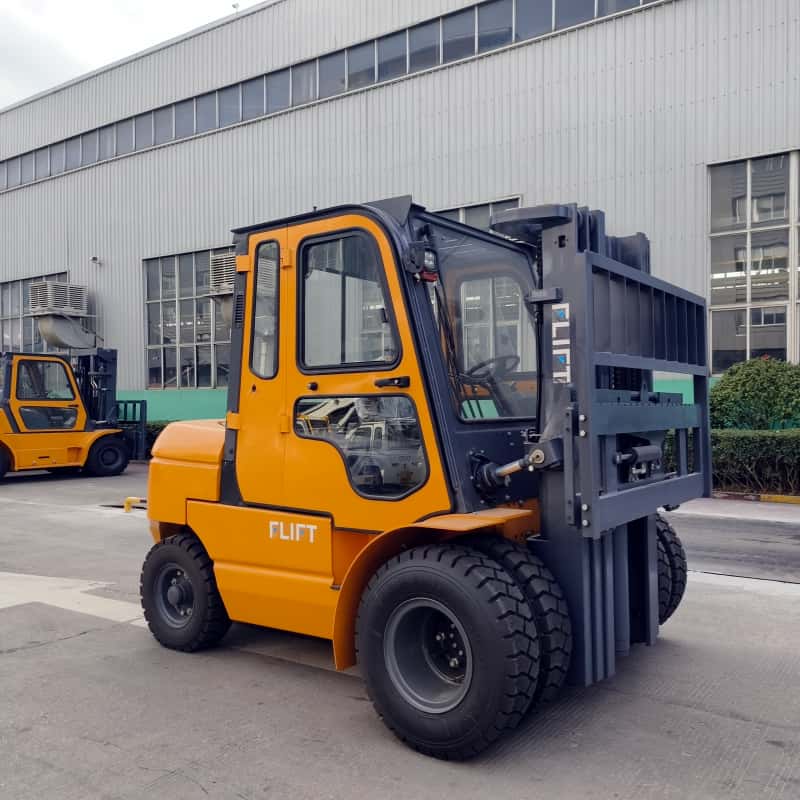

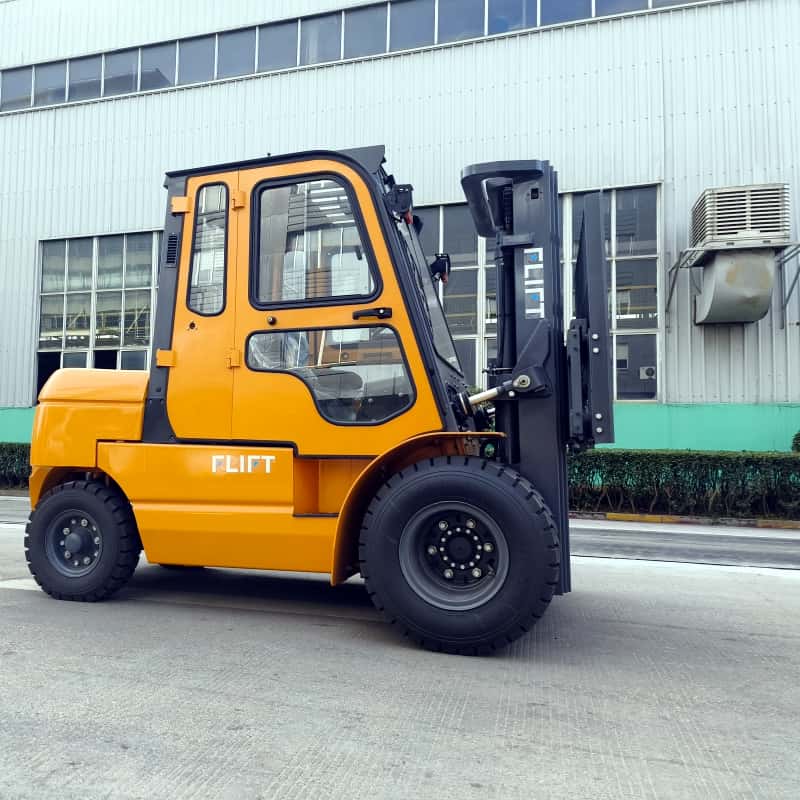

Industrial 5 Ton Diesel Forklift Featuring Dual Front Tires and 5m Mast

Technical Parameters

FLIFT 5ton Diesel Forklift Specifications
1	Model			FD50
2	Power Type			Diesel
3	Rated Capacity		kg	5000
4	Load Centre		mm	500
5	Lift Height		mm	4520
6	Fork Size (L×W×T）		mm	1220X150X60
7	Mast Tilt Angle（F/R）		Deg	6°/12°
8	Front Overhang (Wheel Center to fork face)		mm	570
9	Ground Clearance(Bottom of mast)		mm	170
10	Overall Dimension	Length to face of fork(Without fork)	mm	3245
11		Overall Width	mm	1850
12		Mast Lowered Height		2270
13		Mast Extended Height (With backrest)	mm	5350
14		Overhead Guard Height	mm	2265
15	Turning Radius(outside)		mm	2910
16	Min.insecting aisle		mm	2920
17	Speed	Travel(Empty load)	km/h	25
18	Speed	Lifting(Full load)	mm/s	420
19	Max.Gradeability		%	20
20	Tire	Front		300-15-18PR
21	Tire	Rear		7.00-12-12PR
22	Wheel Base		mm	2100
23	Serice Weight		kg	7400
24	Battery	Voltage/Capacity	V/Ah	(12/80)×2
25	Engine	Model		QSF2.8
26		Manufacture	Brand	Cummins
27		Rated outputl/r.p.m.	kw	55/2500
28		Rated torque/r.p.m.	N ·m	300/1600
29		No.of Cylinder		4
30		Bore×Stroke	mm	94x100
31		Displacemaent	cc	2800
32		Fuel Tank Capacity	L	105
33	Transmission	Type		Hydraulic
34	Transmission	Stage	F/R	2/1

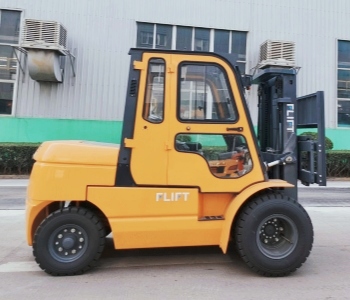

10K Industrial Forklift Diesel

Character:
1,Wide view mast
Gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2,Powerful engine
Ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3,Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4,Reliable instruments
Offer an easy access to the working condition,thus makes handling process more efficient and safer.
5,Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6,Super low and non-slip step
This design makes operating convenient and safe.

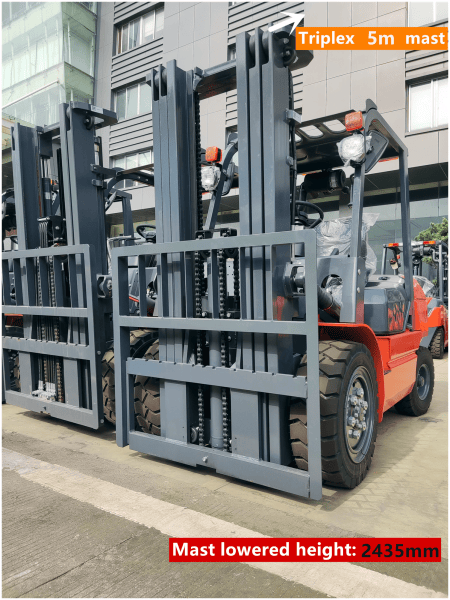

Diesel Forklift 10000lb

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

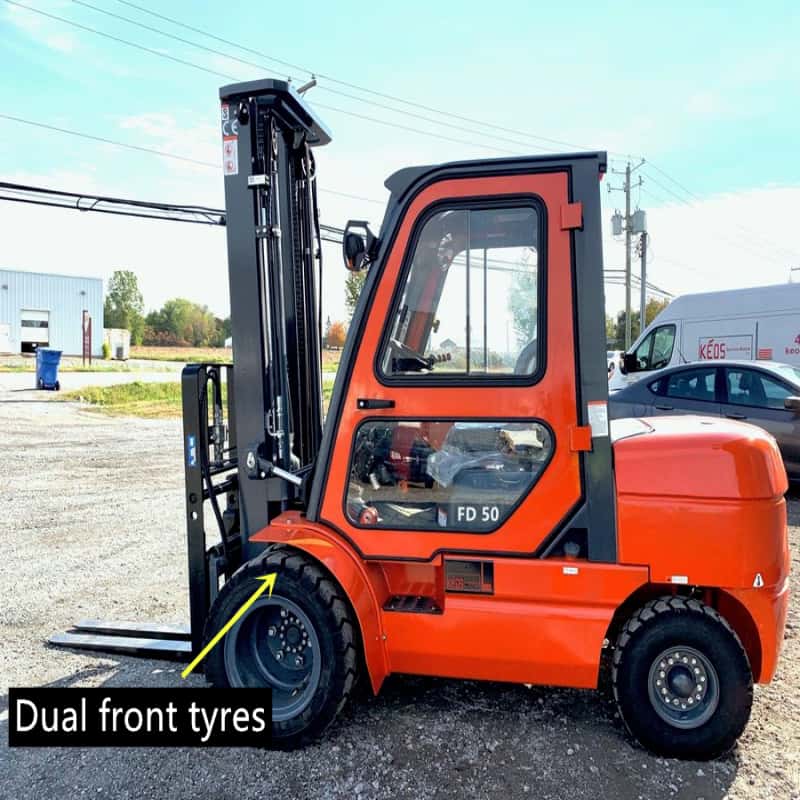

5 Ton Diesel Forklift with Dual Front Tires and 3 Stage 5m Mast
