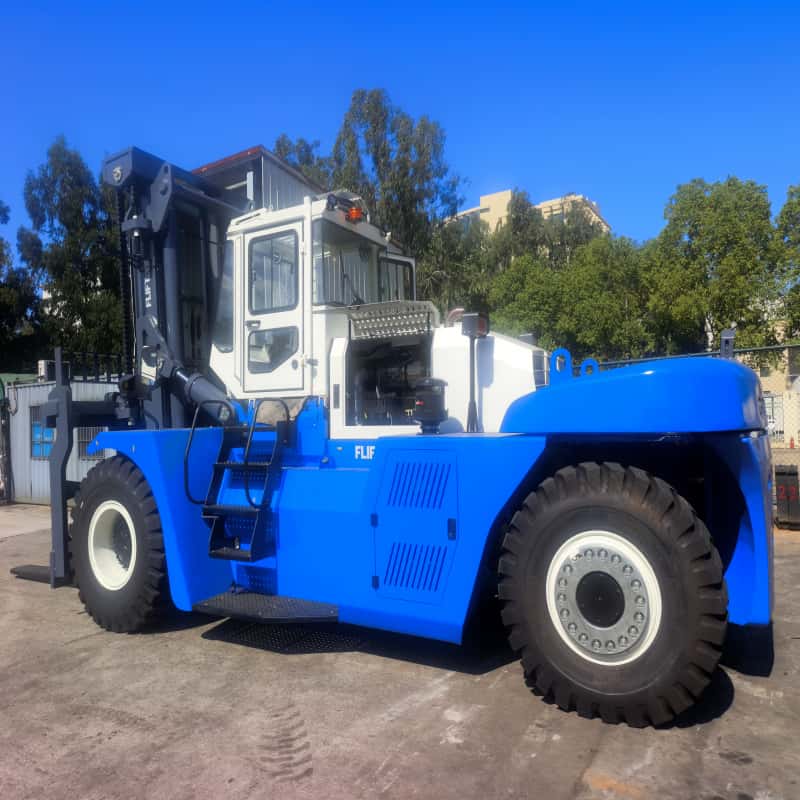

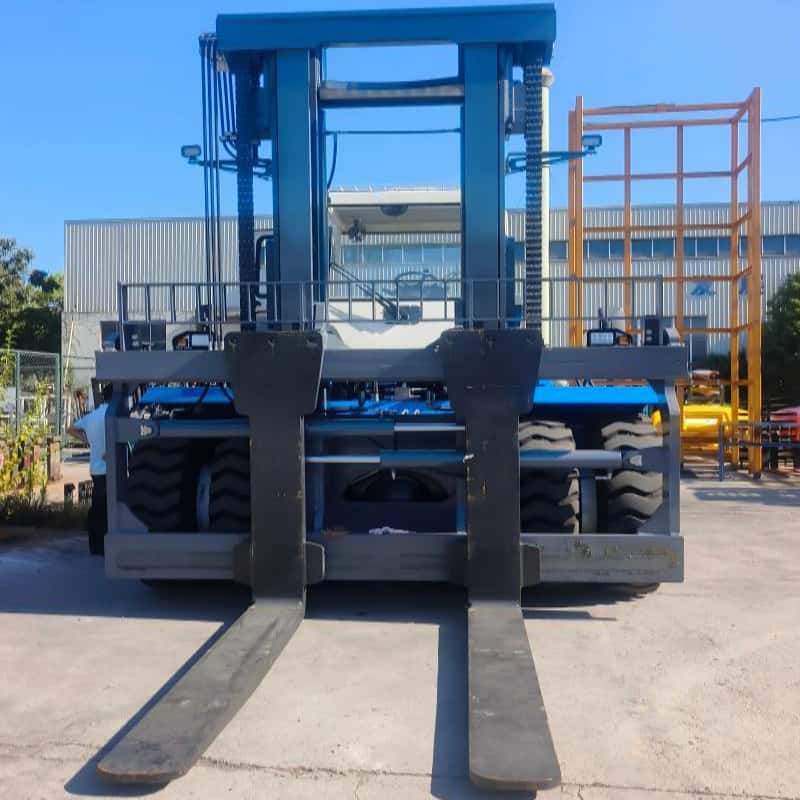

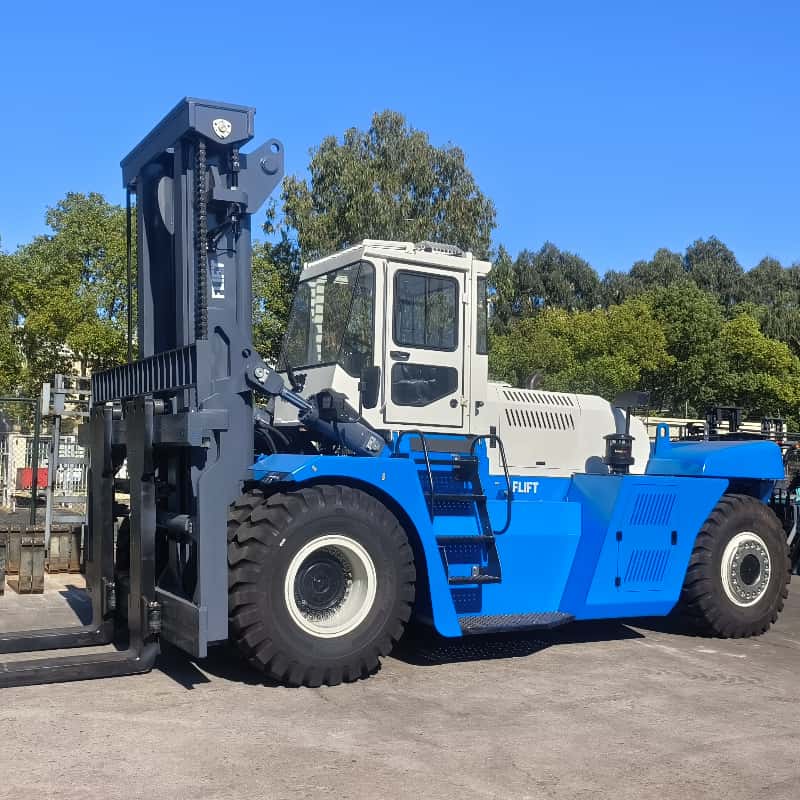

30 Ton Forklift Price | 30 Tons Diesel Heavy Duty Forklift for Sale

Technical Parameters

Model		FD250	FD280	FD300
Capacity	kg	25000	280000	30000
Load center	mm	1200	1200	1200
Lift height	mm	4000	4000	4000
Fork size(LxWxH)	mm	2440x250x110	2440x250x110	2440x250x110
Mast tilt angle(F/R)	Deg	5°/10°	5°/10°	5°/10°
Length to face of fork	mm	6885	6885	6885
Overall width	mm	3050	3050	3050
Mast lowered height	mm	4000	4000	4000
Mast extended height	mm	6000	6000	6000
Overhead guard height	mm	3500	3500	3500
Turning radius	mm	6500	6500	6500
Min. right angle aisle width	mm	8800	8800	8800
Front overhang	mm	1240	1240	1240
Ground clearance	mm	250	250	250
Wheelbase	mm	4650	4650	4650
Travel (no load)	km/h	25	25	25
Lifting (full load)	mm/s	300	300	300
Gradeability(laden)	%	20	20	20
Service weight	kg	36600	38600	39600
Front tire		14.00-24	14.00-24	14.00-24
Rear tire		14.00-24	14.00-24	14.00-24
Battery (voltage/capacity)	v/ah	24 /180	24 /180	24 /180
Engine model		TAD750VE	TAD750VE	TAD750VE
Manufacturer		VOLVO	VOLVO	CUMMINS
Engine rated output/r.p.m	kw	181/2300	181/2300	180/2300
Engine rated torque/r.p.m.	n.m	1050/1500	1050/1500	1166/1695
Engine No.of Cylinder		6	6	6
Bore x stroke	mm	130X108	130X108	114x145
Displacement	cc	7150	7150	8900
Fuel tank capacity	L	420	420	420
Transmission		hydraulic	hydraulic	hydraulic
Operating pressure for attachment	mpa	19	19	19

FEATURES

25-30tonne heavy duty diesel forklift truck-Pneumatic Tyre
Character:
1 Wide view mast and 1200mm load center
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.30T forklift with a 1200mm load center offers greater load-handling flexibility, safety, and operational efficiency for oversized and long goods compared to forklifts rated at shorter load centers.
2 Cummins engine
The powerful Cummins engine ensures our trucks high handling performance and offers an intrinsical safety and efficient operation.
3 Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4 Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5 Ergonomics seat and standard Fork Positioner
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.30-ton diesel forklift with a fork positioner allows operators to adjust fork spacing quickly and precisely from the cab, improving efficiency and safety when handling loads of varying sizes.
6 Super low and non-slip step
Supper low and non-slip make operating convenient and safe.

Diesel Heavy Duty Forklift

Applications

30 Ton Forklift Price 30t diesel forklift for sale 30tonne diesel forklift

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
