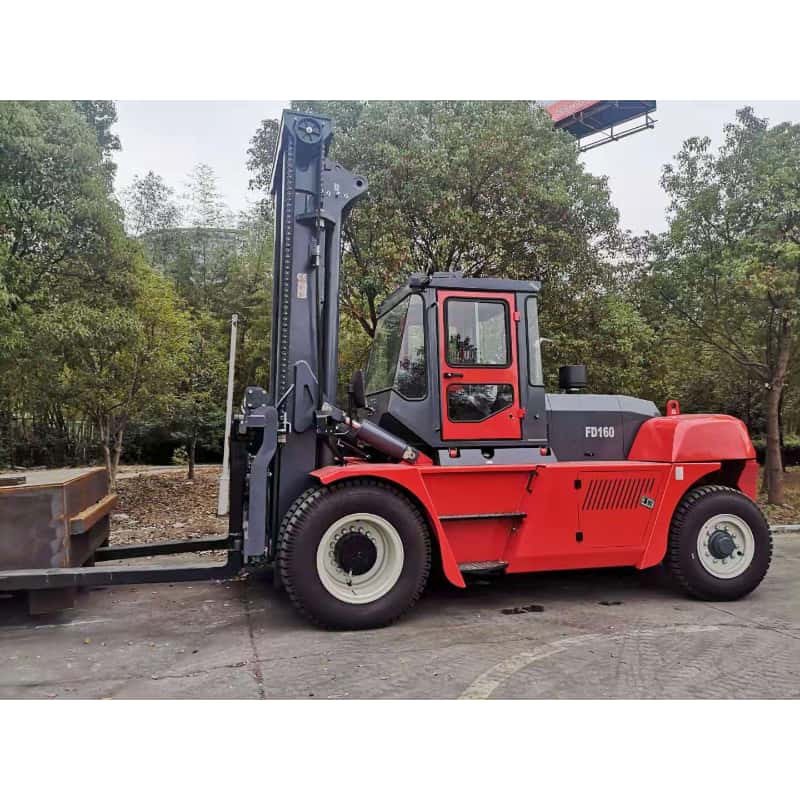

16T Forklift Truck
Load Capacity16000kg
Gearbox BrandJapan Okamura
Lift Height3000-5000mm
Turning Radius4500mm
Engine Brand Cummins /Yuchai
We're here to help:Easy ways to get the answers you need.
- 16T Diesel Forklift
- Forklift 16 ton price starts here. Discover cost-effective options. Request a quote for heavy-duty forklifts now.
Technical Parameters
|
Model |
|
FD160 |
|
Brand(OEM Acceptable) |
|
FLIFT |
|
Capacity |
kg |
16000 |
|
Power Source |
|
Diesel |
|
Load center |
mm |
600 |
|
Lift height |
mm |
3000 |
|
Fork size(LxWxH) |
mm |
1820X200X90 |
|
Mast tilt angle(F/R) |
Deg |
6°/12° |
|
Length to face of fork |
mm |
4960 |
|
Overall width |
mm |
2490 |
|
Mast lowered height |
mm |
3170 |
|
Mast extended height |
mm |
4670 |
|
Overhead guard height |
mm |
2930 |
|
Turning radius |
mm |
4500 |
|
Min. right angle aisle width |
mm |
6800 |
|
Front overhang |
mm |
900 |
|
Ground clearance |
mm |
255 |
|
Wheelbase |
mm |
3250 |
|
Travel (no load) |
km/h |
23 |
|
Lifting (full load) |
mm/s |
380 |
|
Gradeability(laden) |
% |
20 |
|
Service weight |
kg |
20500 |
|
Front tire |
|
12.00-24-20PR |
|
Rear tire |
|
12.00-20-18PR |
|
Battery (voltage/capacity) |
v/ah |
24/120 |
|
Engine model |
|
YC6A180Z-T21(A7AGC) |
|
Manufacturer |
|
YUCHAI |
|
Engine rated output/r.p.m |
kw |
130/2300 |
|
Engine rated torque/r.p.m. |
n.m |
670/1400-1700 |
|
Engine No.of Cylinder |
|
6 |
|
Bore x stroke |
mm |
108X132 |
|
Displacement |
cc |
7255 |
|
Fuel tank capacity |
L |
300/350 |
|
Transmission |
|
hydraulic |
|
Operating pressure for attachment |
mpa |
18 |
FEATURES
Large ton internal combustion forklift
Character:
1: Wide view mast
Wide-view mast gives the operator and enhanced forward visibility,which adds great to the efficiency and safety of operator.
2: Powerful engine
The powerful Cummins engine ensures 16t forklift high handling performance and offers an intrinsical safety and efficient operation.
3: Solid overhead guard
Specially designed solid overhead guard provides additional security for the operator
4: Reliable instruments
The instruments offer an easy access to the working condition of the truck,thus makes handling process more efficient and safe.
5: Ergonomics seat
Designed according to ergonomic principles,makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.
6: Super low and non-slip step
Supper low and non-slip step design make operating convenient and safe.
Applications
.jpg)
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
