FLIFT 7000lb Lithium Forklift | Long-Life CATL Battery, 30kW AC Motor, High-Voltage Efficiency

Technical Parameters

General	1.	Model			FB- 35LH	FB -38LH
	2.	Brand			FLIFT	FLIFT
	3.	Power Type			Electric	Electric
	4.	Rated Capacity		kg	3500	3800
	5.	Load Centre		mm	500	500
Characteristic & Dimension	6.	Lift Height		mm	3000	3000
	7.	Fork Size	L ×W ×T	mm	122012545	122012545
	8.	Mast Tilt Angle	F/R	Deg	6°/12°	6°/12°
	9.	Ground Clearance (Bottom of mast)		mm	140	140
	10.	Overall Dimension	Length to face of fork (Without fork)	mm	2796	2796
	11.		Overall Width	mm	1230	1230
	12.		Mast Lowered Height	mm	2150	2150
	13.		Mast Extended Height (With backrest)	mm	4180	4180
	14.		Distance From Roof of Seat	mm	1020	1020
	15.	Front Overhang		mm	506	506
	16.	Rear Overhang		mm	610	610
	17.	Turning Radius(outside)		mm	2495	2495
	18.	Min. Right-angle channel width		mm	4210	4210
Performance	19.	Speed	Travel Full Load /Unloaded	km/h	19/19	19/19
	20.		Lifting Full Load/Unloaded Lowering Full load/ Unloaded	mm/s	440/460	440/460
	21.		Lifting Full Load/Unloaded Lowering Full load/ Unloaded	mm/s	≤600/≥300	≤600/≥300
	22.	Max. Gradeability		%	30	30
Chassis	23.	Vacuum Tires	Front		28X9-15-14PR	28X9-15-14PR
	23.	Vacuum Tires	Rear		650-10-10PR	650-10-10PR
	24.	Tread	Front		1000	1000
	24.	Tread	Rear		970	970
	25.	Wheel Base		mm	2585	2585
	26.	Service Weight		kg	4800	5750
Battery and Motor	27.	Lithium Battery	Voltage/Capacity	V/Ah	309.12V/ 96Ah	309.12V/ 96Ah
	28.	Motor	Driving Motor	Kw	30	30
	29.		Lifting Motor	kw	30	30
	30.		No. of Driving Motor		1	1
	31.		No. of Lifting Motor		1	1
	32.	Hydraulic Tank Capacity		L	49	49

FEATURES

1.After fully charged in 1 hour,it can be used for 10 hours under comprehensive working conditions,which greatly improves material handling efficiency.
2.Compatible with national/European standard car charging piles,CATL original liquid-cooled battery pack.
3.Protection level reaches IP67,able to cope with complex environments below with ease,High temperature,high cold,high dust(4mg/cubic meter),high altitude,Can withstand 400mm/h precipitation,waterproof grade IPX40.
4.Car-grade thermal management system,enable stable working conditions in harsh environments ranging from,-30°C to 60°C, and can continue to output power stably even in low-temperature cold storages,steel casting workshops,and smelting plants.
5.Automatic slope holding function,OPS function.Automatic ramp parking function can prevent accidents caused by manual operation errors,hence,ensure the safety of goods and personnel.
6.Battery cell warranty for 8 years or 2,000 working hours(whichever comes first).

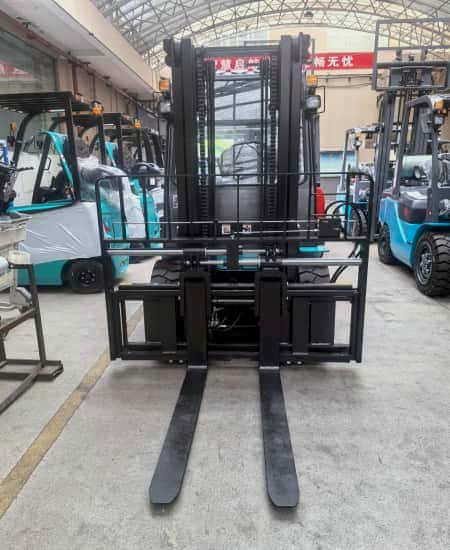

7000lb electric forklift

Applications

Lithium-Ion Electric Forklifts Electric Forklift Truck lithium powered forklifts

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

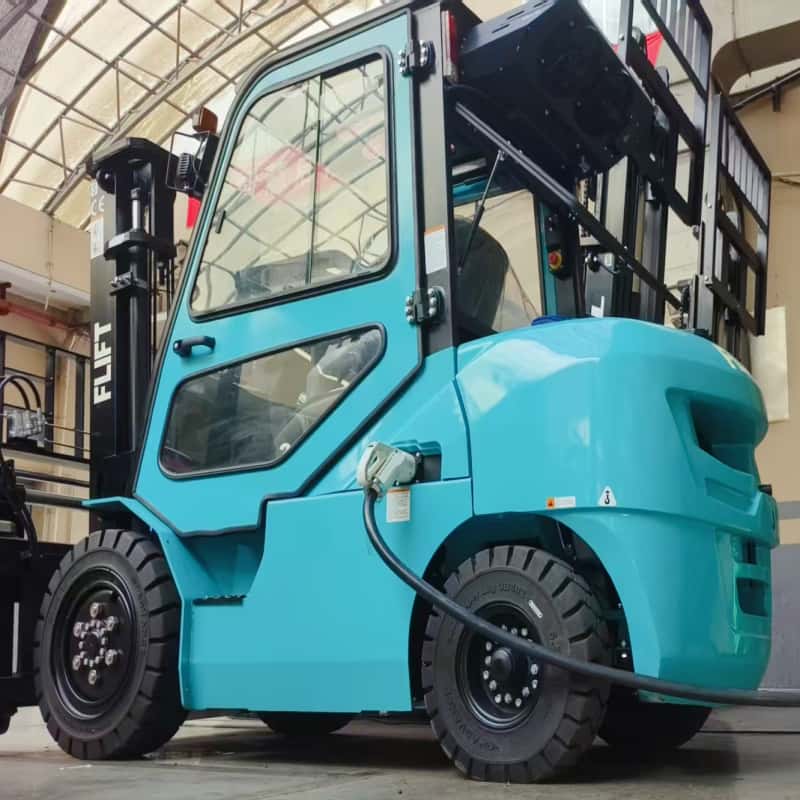

7000lb high voltage lithium forklift
