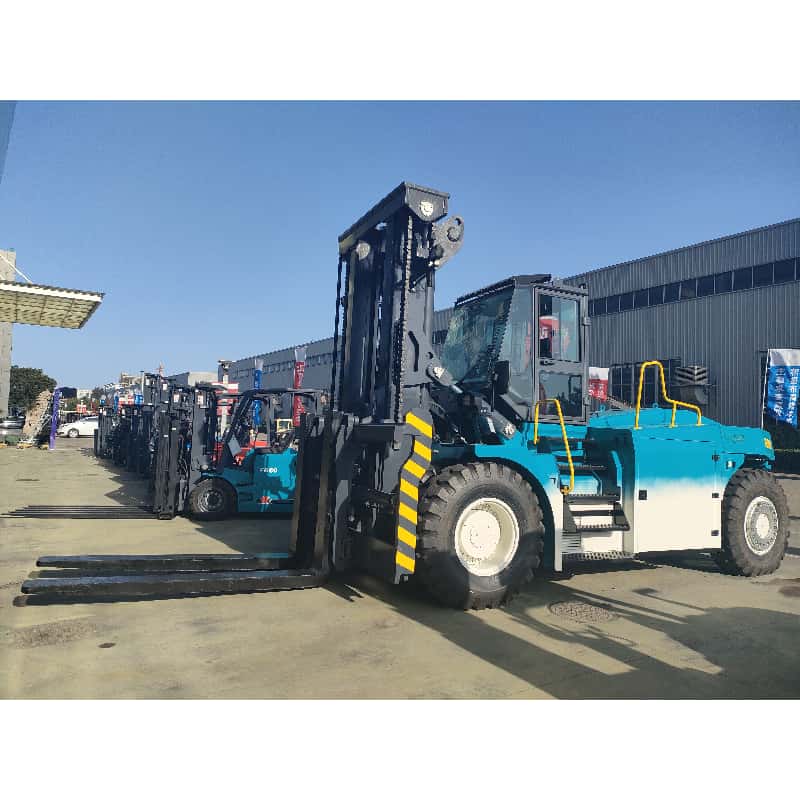

25ton Lithium Battery Forklift
Fork size2420*250*120mm
Lifting Height4000mm
Tire TypeAir Tires
Service Weight37870kg
Front Tread 2200mm
We're here to help:Easy ways to get the answers you need.
- 25 Ton Heavy Duty Forklift
- Find the best 25ton forklift for tough lifting tasks. Reliable forklift 25ton models to boost your productivity.
| SPECIFICATIONS OF 25TON ELECTRIC COUNTER BALANCED FORKLIFT | |||||
| Characteristic | |||||
| 1 | Model | FB250 | |||
| 2 | Power Type | Electric | |||
| 3 | Driving Type | Seated | |||
| 4 | Rated Capacity | kg | 25000 | ||
| 5 | Load Centre | mm | 1200 | ||
| Weight | |||||
| 6 | Service Weight | kg | 37870 | ||
| Tyre & Chassis | |||||
| 7 | Tire Type | Air tires | |||
| 8 | Wheel number X=Drive wheel(front/rear) | 4X/2 | |||
| 9 | Front Tires | 14.00×24-PR24 | |||
| 10 | Rear Tires | 14.00×24-PR24 | |||
| 11 | Front Tread | S | mm | 2200 | |
| 12 | Rear Tread | P | mm | 2345 | |
| 13 | Wheelbase | L5 | mm | 4100 | |
| Dimension | |||||
| 14 | Lift Height | h3 | mm | 4000 | |
| 15 | Fork Size | L3×W×T | mm | 2420x250x120 | |
| 16 | Mast Tilt Angle(F/R) | α/β | 。 | 5/10 | |
| 17 | Mast Lowered Height | h1 | mm | 4000 | |
| 18 | Free lift distance | h2 | mm | / | |
| 19 | Mast Extended Height | h4 | mm | 6005 | |
| 20 | Backrest Height | h7 | mm | / | |
| 21 | Fork adjust distance | R | mm | 810-2670 | |
| 22 | Length to face of fork | L2 | mm | 6265 | |
| 23 | Overall width | B | mm | 3050 | |
| 24 | Overall Guard Height | h5 | mm | 3500 | |
| 25 | Distance from roof to seat | h6 | mm | 1050 | |
| 26 | Front overhang | X | mm | 1055 | |
| 27 | Rear hoverhang | L4 | mm | 1105 | |
| 28 | Turning radius(outside) | Wa | mm | 5900 | |
| 29 | Ground Clearance(Bottom of mast) | m1 | mm | 360 | |
| 30 | Min. intersecting aisle | Ra | mm | 6200 | |
| 31 | Min. right angle stacking aisle width | RASA | mm | 10500 | |
| Performance | |||||
| 32 | Max. Travel speed(Full load/No load) | km/h | 20/17 | ||
| 33 | Lifting speed(Full load/No load) | mm/s | 320/300 | ||
| 34 | Lowering speed(Full load/No load) | mm/s | 340/470 | ||
| 35 | Max. Gradeability(Full load) | % | 20/15 | ||
| 36 | Max. traction(Full load) | kN | 130 | ||
| Electrical | |||||
| 37 | Battery | Type | Lithium iron phosphate | ||
| 38 | Voltage/Capacity | V/Ah | 618.24/456 | ||
| 39 | Rated storage | Kwh | 282 | ||
| 40 | Charge/discharge cycle number | ＞4000 | |||
| 41 | Power consumption | kwh/h | 50 | ||
| 42 | Drive Motor | Type | Permanent Magnet Synchoronous Motor | ||
| 43 | Rated power | Kw | 90 | ||
| 44 | Lift Motor | Type | Permanent Magnet Synchoronous Motor | ||
| 45 | Rated power | Kw | 2*60 | ||
| Others | |||||
| 46 | Operating pressure | Mpa | 20 | ||
FEATURES
1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.
.png)
DETAILS FIGURE
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
