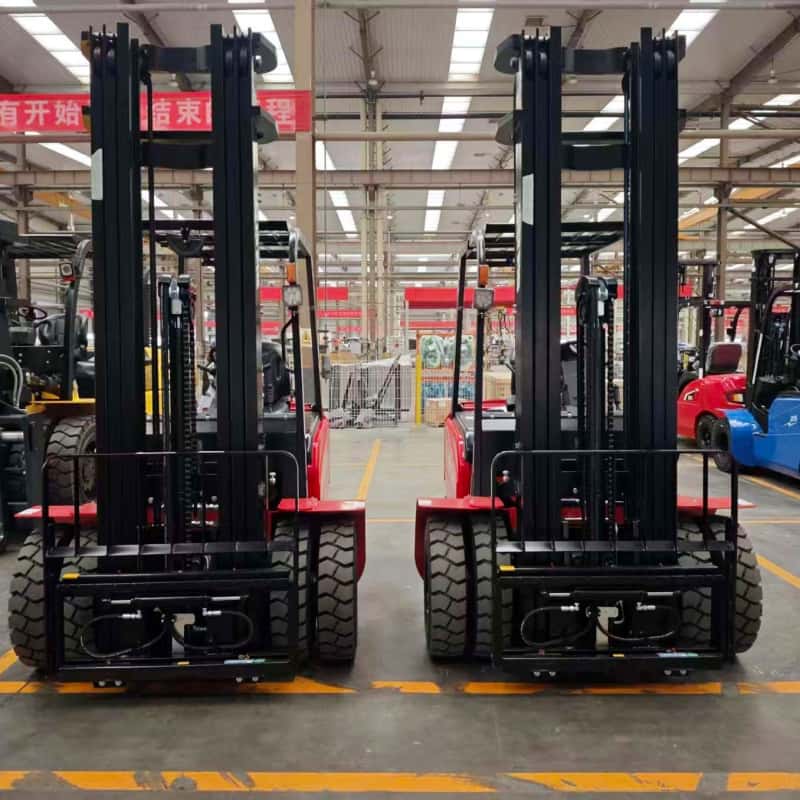

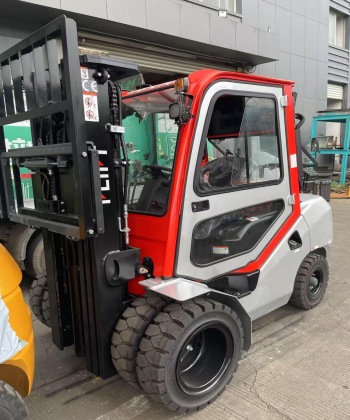

Industrial 3.5T Electric Forklift | Dual Front Tires | Side Shifter

Technical Parameters

FLIFT 3.5T Electric Forklift Specification
Model		CPD35
Power Type		ELECTRIC
Voltage Platform	V	80
Operation Type		Seated
PERFORMANCE
Rated Load Lapacity	kg	3500
Rated Load Center	mm	500
Front Overhang	mm	480
Rear Overhang	mm	350
Wheelbase	mm	1750
Service-Weight (Including/excluding battery)	kg	4800/3840
DIMENSIONS
Tire Type		Pneumatic
Number of wheels (x=Drive Wheel)		2x/2
Front Tire Type		28×9-15-14PR
Rear Tire Type		18×7-8
Front Tread	mm	1000
Rear Tread	mm	980
Mast Tilt (F/R)	0	6°/12°
Mast Lowered Height	mm	2125
Free Lift Height	mm	145
Lift Height	mm	3000
Max.Extended Height	mm	4230
Overhead Guard Height	mm	2160
Overall Length	mm	2580
Overall Width	mm	1225
Fork Size (T×W×L)	mm	1070×122×50
The Distance Between The Forks On The Outside(Mini/Max)	mm	260-1085
Clearance Of The Mast From Ground (Load)	mm	135
Minimum Ground Clearance Of Forklift Body		125
Min.Turning Radius	mm	2275
Max. Drive Speed (load/Emptyload)	km/h	14/15
Max. Lift Speed (load/Emptyload)	mm/s	300/380
Max. Lower Speed(load/Emptyload)	mm/s	450/410
Maximum Hook Traction Force (Full Load)	N	23000
Climbing Ability (Load / /Emptyload)	%	15/20
OTHER PARAMETERS
Driving Brake		Hydraulic Type
Parking Braking		Mechanical Type
Drive Motor	kW	10KW AC
Hydraulic Motor	kW	12KW AC
Motor Type / Protection Class		AC \ IP54
Battery Type		Lead -Acid Battery
Battery Voltage/Capacity	V/Ah	80/440/550
Type of MCU motor controller		MOSFET/AC
Hydraulic system working pressure	Mpa	18.5

FEATURES

1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Lifting heights range from 3,000 mm to 6,000 mm.3-stage mast with 5,000 mm lift height is commonly selected for high-rack warehouse operations while maintaining a low collapsed mast height for indoor use.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Side-mounted pump motor makes easier maintenance.

electric warehouse forklift

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
