three wheel electric forklift，3 wheel electric truck，3 wheel forklift truck

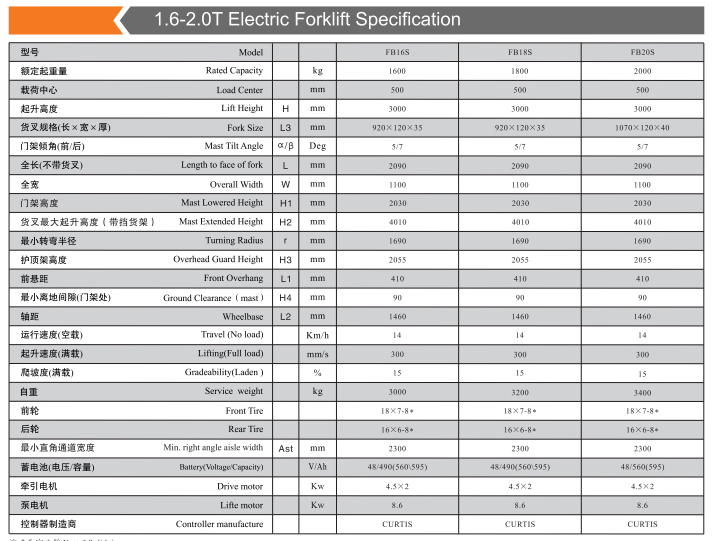

Technical Parameters

Model		FB 16S	FB 18S
Capacity	kg	1600	1800
Load center	mm	500	500
Lift height	mm	3000-6000	3000-6000
Fork size(LxWxH)	mm	920x120x35	1070x120x35
Mast tilt angle(F/R)	Deg	6°/12°	6°/12°
Length to face of fork	mm	2100	2100
Overall width	mm	1100	1100
Mast lowered height	mm	2010	2010
Mast extended height	mm	3940	3940
Overhead guard height	mm	2055	2055
Turning radius	mm	1690	1690
Front overhang	mm	390	390
Rear overhang	mm	230	230
Ground clearance(mast)	mm	90	90
Wheelbase	mm	1460	1460
Overall length(with forks)	mm	3020	3020
Travel (no load)	km/h	14	14
Lifting (full load)	mm	340	340
Gradeability(laden)	%	15	15
Service weight	kg	3420	3520
Front tire		18x7-8（solid tire）	18x7-8（solid tire）
Rear tire		18x7-8（solid tire）	18x7-8（solid tire）
Backrest height(from uper face of forks)	mm	910	910
Free lift	mm	95	95
Overhead guard clearance(from face of seat)	mm	990	990
Lateral fork adjustment(outside of fork)	mm	240 - 970	240 - 970
Tread(front)	mm	924	924
Tread(rear)	mm	208	208
Mininum intersecting Aisle	mm	2300	2300
Minimum Right-Angle Stacking Aisle Width	mm	3400	3400
Lead acid Battery Capacity	V/ah	48/490	48/490
Lithium Iron Battery Capacity	V/ah	80v/280	80v/280
Drive motor	kw	2x4.5	2x4.5
Lift motor	kw	8.6	8.6
Controller manufacturer	Brand	ZAPI / CURTIS	ZAPI / CURTIS

FEATURES

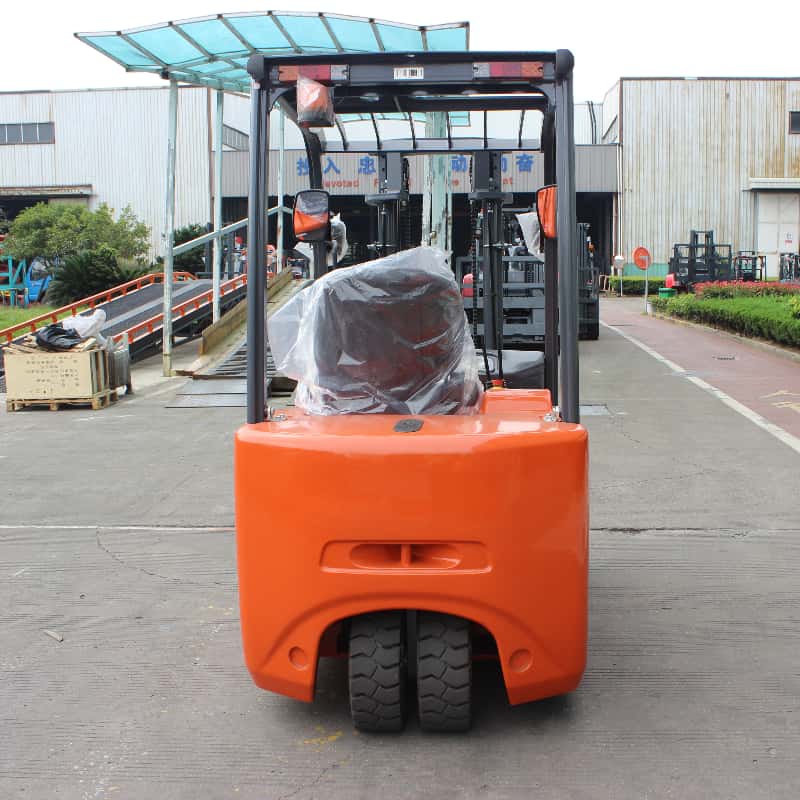

Three wheel electric forklift
Character:

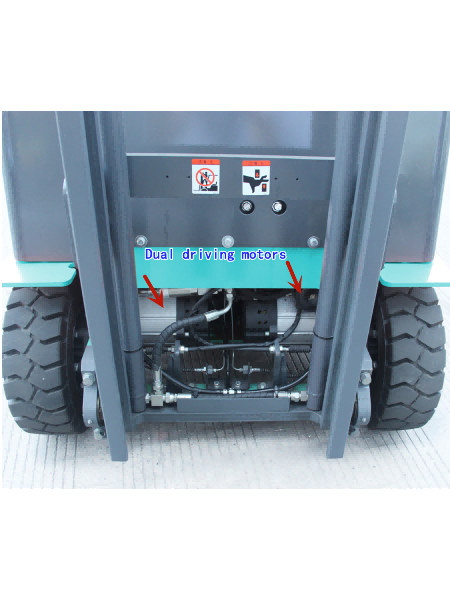

1.Strong power system,adopt dual driving motor
2.Wide-view mast
3.3 wheel electric forklift have a smaller turning radius which enhances their ability to operate in confined areas
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Three-wheel electric forklifts offer excellent maneuverability, making them ideal for tight spaces and narrow aisles.
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, FLIFT forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.

3 wheel electric truck

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

1.6-1.8Ton Three Wheel Electric Forklift
