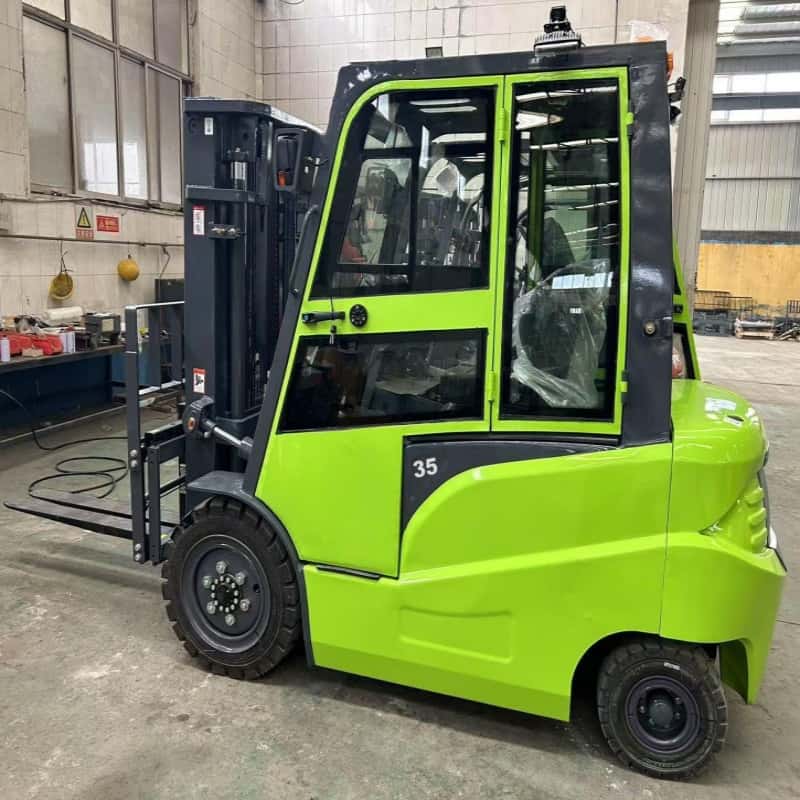

FLIFT Lithium Battery Forklift 3–3.5 Ton | Powerful Lifting with Zero Maintenance

Technical Parameters

Rated load		KG	3000	3500
Load center distance		mm	500	500
Driving type			Seated	Seated
Length	With fork	mm	3850	3850
Length	Without fork		2780	2780
Overall Width			1270	1270
Height	Mast lowered Height		2050	2050
	Overhaead Guard Height		2205	2205
	Mast Extended Height (With Backrest)		4055	4055
Distance from seat to top light			972	972
Wheelbase			1830	1830
Front overhang			475	475
Back overhang			490	490
Front wheel tread			996	996
Back wheel tread			968	968
Min Floor clearance			115	115
Max lifting height			3000-6000	3000-6000
Free lifting height			145	145
Mast Type			2 Stage /3 stage Mast	2 Stage /3 stage Mast
Min Turning radius			2500	2500
Min. Intersecting aisle (mm)			4275	4275
Mast Tilt Angle（F/R）		°	6 / 12	6 / 12
Max lifting speed without goods		mm/s	350	350
Max lifting speed with full goods		mm/s	280	280
Max speed without goods		Km/h	15	15
Max speed with full goods		Km/h	14	14
Max climbing angl		％	≤15	≤15
Service weight		Kg	4000	4150
Driving Wheel			2/2	2/2
Type model			Pneumatic Tire	Pneumatic Tire
Front Tyre			28x9-15	28x9-15
Rear Tyre			18x7-8	18x7-8
Brake Type			Hydraulic Pedal	Hydraulic Pedal
Parking Brake type			M-Hand	M-Hand
Lead Acid Battery Volt/ capacity		V/Ah	80V / 300/500/630	80V / 300/500/630
Driving motor (AC)		Kw	10	10
Hydraulic motor		kw	12	12

FEATURES

1. Spacious workplace: Ample leg room helps to provide a relaxed working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
2.Adjustable steering wheel and safety seat.
3.Humanized right-side hydraulic operation handle and emergency power-off button.
4.Customized enclosed cabin and optional air conditioner with heater.
5.The lithium battery warranty period lasts for 5 years.
6.High-strength overhead guard.
7.Waterproof, dustproof and shockproof LCD instrument.
8.Motor: side-mounted pump motor makes easier maintenance.

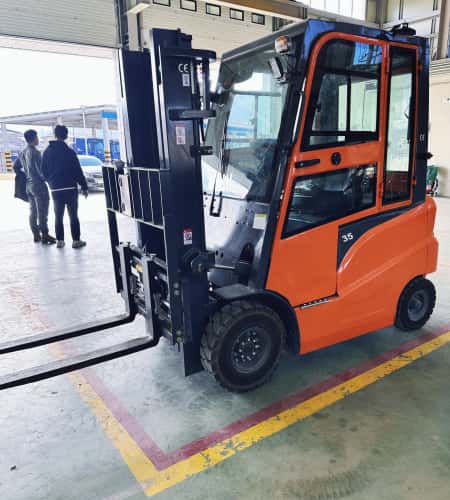

Lithium forklift manufacturers

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

6000lb-7000lb Lithium electric forklift
