FLIFT 3–3.5T Lithium-Ion Forklift Trucks | 80V Lithium Powered Forklift

Technical Parameters

Model		FB30LE	FB35LE
Power Type		Lithium Battery	Lithium Battery
Rated Capacity	kg	3000	3500
Load Center	mm	500	500
Service weight	kg	4000	4400
Tyre type		Air tires	Air tires
Wheel number X=drive wheel		2x2/2	2x2/2
Tyre Size(Front)		28*9-15-14PR	28*9-15-14PR
Tyre Size(Rear)		6.50-10-10PR	6.50-10-10PR
Front Tread	mm	1000	1000
Rear Tread	mm	960	960
Wheel base	mm	1800	1800
Fork Size	mm	107012545	107012550
Mast Tilt Angle	Deg	6°/12°	6°/12°
Lift Height	mm	3000	3000
Mast Lowered Height	mm	2115	2115
Free Lifting Height	mm	125	125
Mast Extended Height	mm	4175	4175
Backrest Height	mm	1140	1140
Fork Adjust Distance	mm	250-1100	250-1100
Length to face of fork	mm	2781	2781
Overall Width	mm	1230	1230
Overall Guard Height	mm	2150	2150
Distance From Roof to Seat	mm	1010	1010
Front Overhang	mm	481	481
Rear Overhang	mm	500	500
Turning Radius (Outside)	mm	2540	2540
Ground Clearance(Bottom of mast)	mm	140	140
Min.intersecting aisle	mm	2600	2600
Min. Right angle stacking aisle width	mm	4280	4280
Max. Travel Speed	Km/h	12/12.5	12/12.5
Lifting Speed(Full load/no load)	mm/s	330/430	310/420
Lowering Speed(Full load/no load)	mm/s	≤600/≥300	≤600/≥300
Max. Gradeability	%	15	15

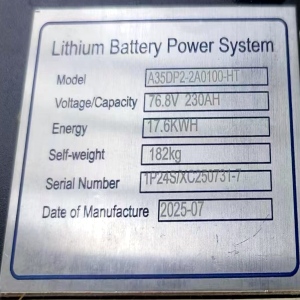

Battery (Voltage/Capacity)	V/Ah	80/230	80/280
Fork Size	mm	640640585	640640585
Drive Motor	kw	11	11
Lift Motor	kw	15	15
Motor Type		AC	AC
Operating Pressure	Mpa	18	18

FEATURES

1.FLIFT 3-3.5t lithium powered forklift is a new energy product developed on the platform of T-series internal combustion forklift;
2.Applying the shape,chassis and gantry system of the internal combustion vehicle, and integrating the latest lithium battery control technology;
3.Maintenance-free lithium iron phosphate technology, fast charging ready to use any time;
4. Adopt Chinese-made controller, three-phase asynchronous motor,reliable performance;
5.It adopts internal combustion vehicle chassis, which is strong, durable and has good passability;
6.Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;
7.Powerful Engine -- imported brand engine ensures high performance, safEty and efficiency;
8.Super low & Non-slip step.

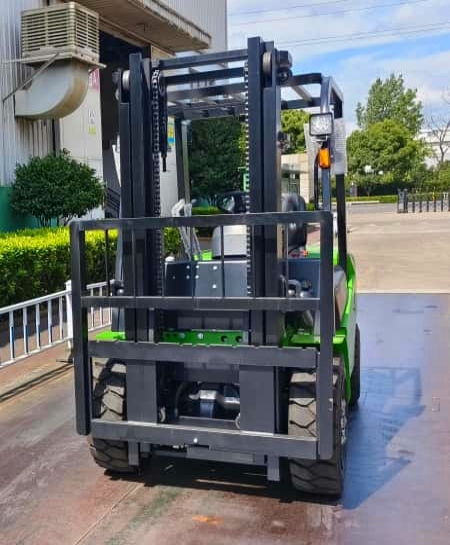

China Lithium Forklifts Manufacturers

Applications

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

3-3.5ton 4 Wheel lithium Forklift Trucks
