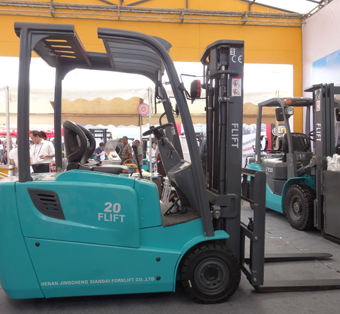

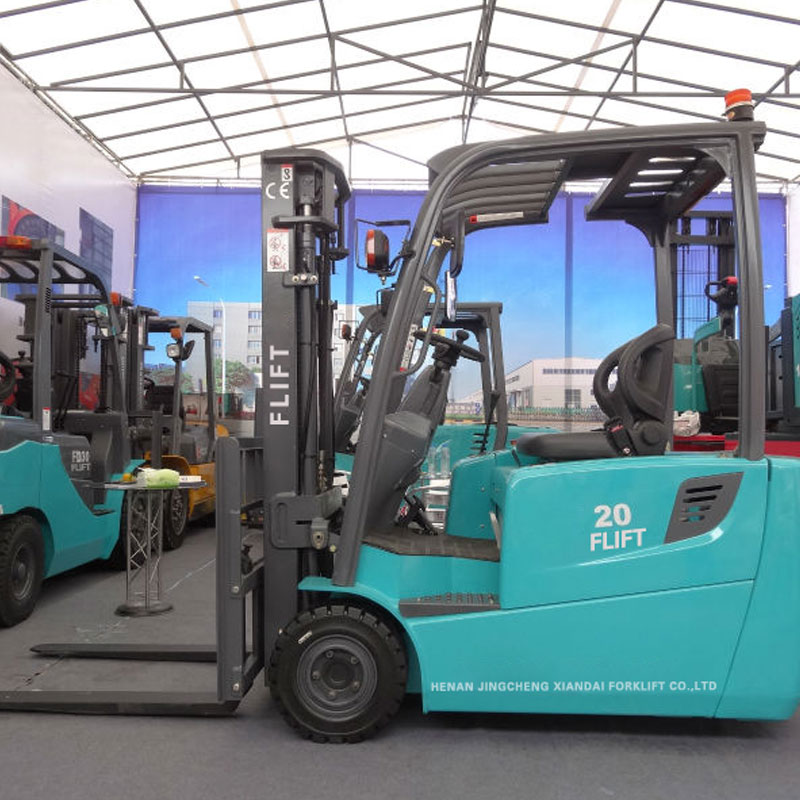

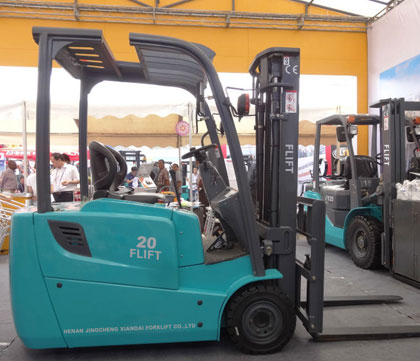

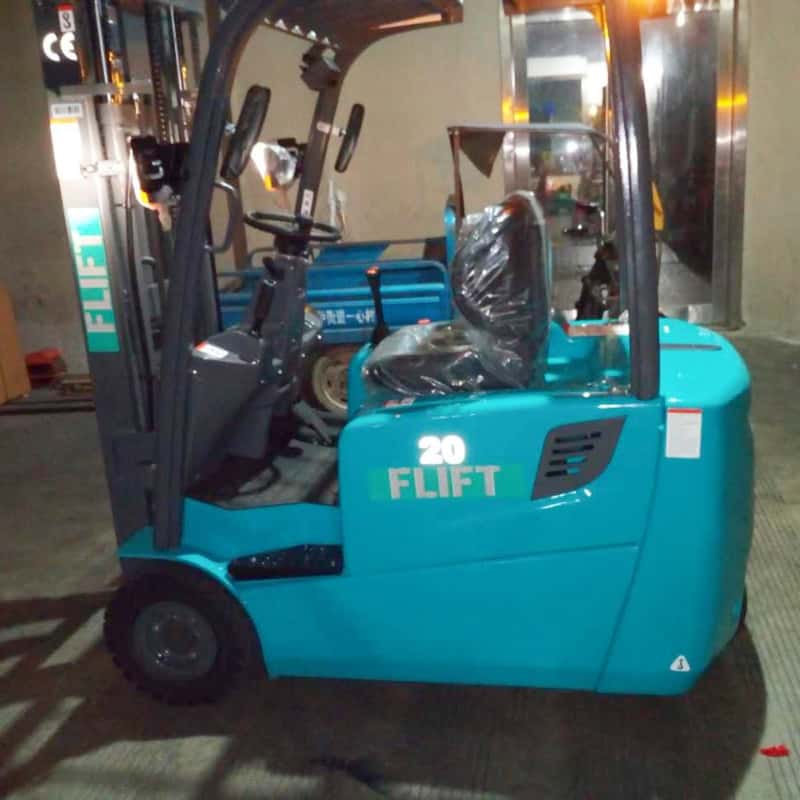

2 Ton three wheel electric forklift
ModelFB20S
Capacity2000kg
Load center500mm
Lift height3000-6000mm
Turning radius1690mm
We're here to help:Easy ways to get the answers you need.
- 3 Wheel Counterbalance Forklift
- 3 wheel electric forklift truck — maneuverable, eco-friendly lifting. See our three wheel electric options for safe, smart warehouse operations.
Technical Parameters
Model |
|
FB 18S |
Capacity |
kg |
1800 |
Load center |
mm |
500 |
Lift height |
mm |
3000-6000 |
Fork size(LxWxH) |
mm |
1070x120x35 |
Mast tilt angle(F/R) |
Deg |
6°/12° |
Length to face of fork |
mm |
2100 |
Overall width |
mm |
1100 |
Mast lowered height |
mm |
2010 |
Mast extended height |
mm |
3940 |
Overhead guard height |
mm |
2055 |
Turning radius |
mm |
1690 |
Front overhang |
mm |
390 |
Rear overhang |
mm |
230 |
Ground clearance(mast) |
mm |
90 |
Wheelbase |
mm |
1460 |
Overall length(with forks) |
mm |
3020 |
Travel (no load) |
km/h |
14 |
Lifting (full load) |
mm |
340 |
Gradeability(laden) |
% |
15 |
Service weight |
kg |
3400 |
Front tire |
|
18x7-8(solid tire) |
Rear tire |
|
18x7-8(solid tire) |
Backrest height(from uper face of forks) |
mm |
910 |
Free lift |
mm |
95 |
Overhead guard clearance(from face of seat) |
mm |
990 |
Lateral fork adjustment(outside of fork) |
mm |
240 - 970 |
Tread(front) |
mm |
924 |
Tread(rear) |
mm |
208 |
Mininum intersecting Aisle |
mm |
2300 |
Minimum Right-Angle Stacking Aisle Width |
mm |
3400 |
Lead acid Battery Capacity |
V/ah |
48/560 |
Lithium Iron Battery Capacity |
V/ah |
80v/280 |
Drive motor |
kw |
2x4.5 |
Lift motor |
kw |
8.6 |
Controller manufacturer |
Brand |
ZAPI / CURTIS |
FEATURES
Electric forklift 3 wheel
Character:
1.Strong power system, adopt dual driving motor design
2.Wide-view mast
3.Three wheel electric forklift have a smaller turning radius which enhances their ability to operate in confined areas
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Three-wheel electric forklifts offer excellent maneuverability, making them ideal for tight spaces and narrow aisles.
8.Adjustable steering wheel
9.By a combination of advanced designs and technologies, goodsense forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
Applications
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
