Buy 2.5T Electric Forklift with Pallet Rotator | Cost-Effective Rotator Forklift

Technical Parameters

Model			CPD-25
Rated load		KG	2500
Load center distance		mm	500
Driving type			Seated
Length	With fork	mm	3550
	Without fork		2480
Overall Width			1180
Height	Mast lowered Height		2265
	Overhaead Guard Height		2210
	Mast Extended Height (With Backrest)		6050
Distance from seat to top light			1070
Wheelbase			1650
Front overhang			410
Back overhang			420
Front wheel tread			1000
Back wheel tread			945
Min Floor clearance			110
Max lifting height			5000
Free lifting height			1700
Mast Type			3 Stage Full Free Mast
Min Turning radius			2285
Min. Intersecting aisle (mm)			3995
Mast Tilt Angle（F/R）		°	6 /12
Max lifting speed without goods		mm/s	280
Max lifting speed with full goods			260
Max speed without goods		Km/h	14
Max speed with full goods			13
Max climbing angl		％	≤15
Service weight		Kg	3850
Driving Wheel			2/2
Type model			Pneumatic Tire
Front Tyre			650-10
Rear Tyre			18x7-8
Brake Type			Hydraulic Pedal
Parking Brake type			M-Hand
Lead Acid Battery Volt/ capacity		V/Ah	48V / 300-500
Driving motor		Kw	7.5 AC

FEATURES

1.The 360 degree forklift rotator allows operators to dump, invert, or rotate loads from any angle, making it ideal for waste handling, recycling, food processing.
2. The rotator enables faster unloading and material repositioning.Operators can rotate the load directly, which boosts overall productivity.
3. Controlled hydraulic rotation gives operators greater precision when dumping or inverting materials, reducing the risk of spills, product damage, or accidents—especially at higher lift heights.
4. With the rotator attachment, the same 2.5t electric forklift can support multi-industry tasks such as handling bins,and irregular materials.
5. The electric forklift powertrain ensures low operating costs, quieter performance, and reduced maintenance.

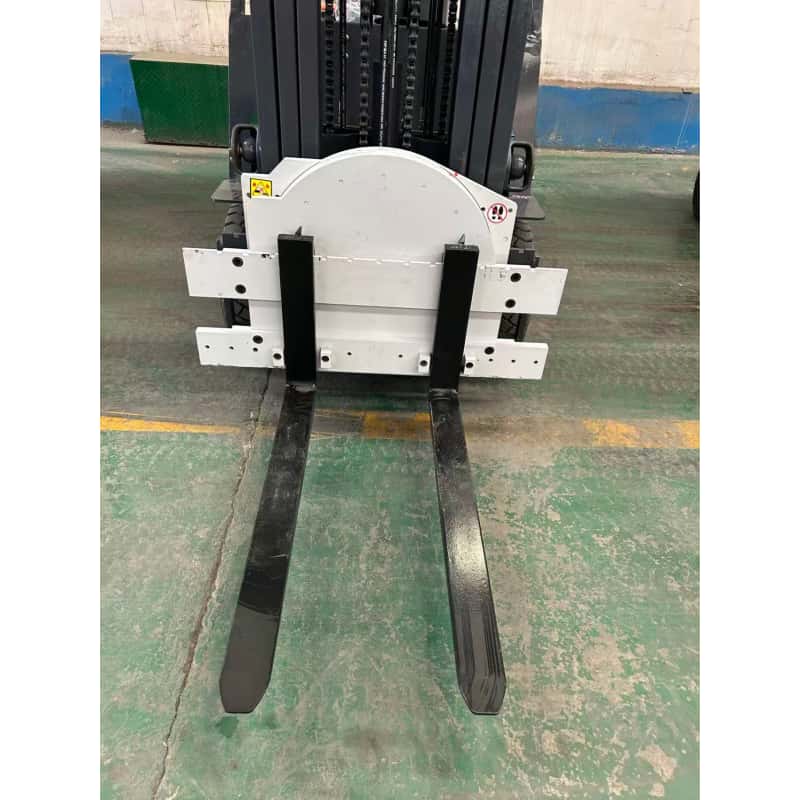

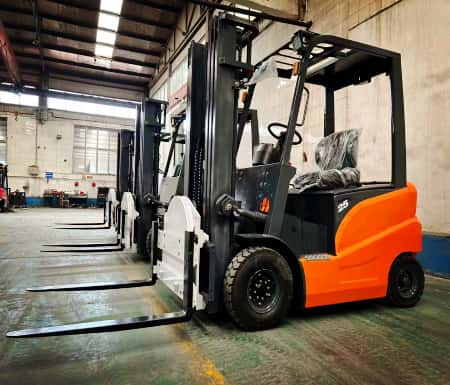

360 degree forklift rotator

Applications

electric fork trucks counterbalance forklift forklifts electric

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
