How To Choose The Right Large Capacity Forklift For Your Warehouse

Specifications of FLIFT 12ton lithium forklift
	Features
1	Brand Model						FLIFT FB120
2	Power Type						Battery
3	Driving Type						Seated
4	Rated load capacity			kg			12000
5	Load center			mm			600
	Weight
6	Self weight			kg			15800
	Tires, Chassis
7	Tire						Solid Tires
8	Tires Number X=Drive tire（F/R）						4X/2
9	Front Tires						9.00-20
10	Rear Tires						8.25-20
11	Front Tread		S	mm			1736
12	Front Tread		P	mm			1754
13	Wheelbase		L5	mm			2850
	Dimensions
14	Lift Height		h3	mm			3000
15	Fork Size	L×W×T	L3×W×T	mm			1220×175×85
16	Mast Tilt Angle	F/R	α/β	。			6/10
17	Mast Lowered Height		h1	mm			2830
18	Free Lift		h2	mm			230
19	Mast Extended Height(With backrest)		h4	mm			4260
20	Minimum right angle channel width		Ra	Mm			4050
	Minimum right angle stacking aisle width		RASA	mm			5960
21	Fork adjust range（outside）		R	mm			515-2055
22	Length to face of fork(Without fork)		L2	mm			4412
23	Overall Width		B	mm			2250
24	Overall Guard Height		h5	mm			2640
25	From seat to the overhead guard		h6	mm			1040
26	Front Overhang		X	mm			845
27	Rear Overhang		L4	mm			716
28	Turning Radius		Wa	mm			3850
29	Ground Clearance (Bottom of mast)		m1	mm			230
	Performance
30	Max. Travel Speed(Full/Empty load)			km/h			13/14
31	Max. Lifting Speed(Full/Empty load)			mm/s			300/300
32	Max. Lowing Speed(Full/Empty load)			mm/s			≥300 ≤600
33	Max. Gradeability(Full load)			%			10
	Electricity
34	Voltage/Capacity	Lithium battery			V/Ah	144V/630Ah
35	Battery brand				mm	Eve brand
36	Motor power	Drive motor			Kw	20×2（Wan Nan）
37		Lift motor			Kw	29×2（Wan Nan）
38	Controller Manufacturer					CURTIS
39	Controller Type					AC
	Others
40	Hydraulic system working pressure				Mpa	18

FEATURES

1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.
Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.

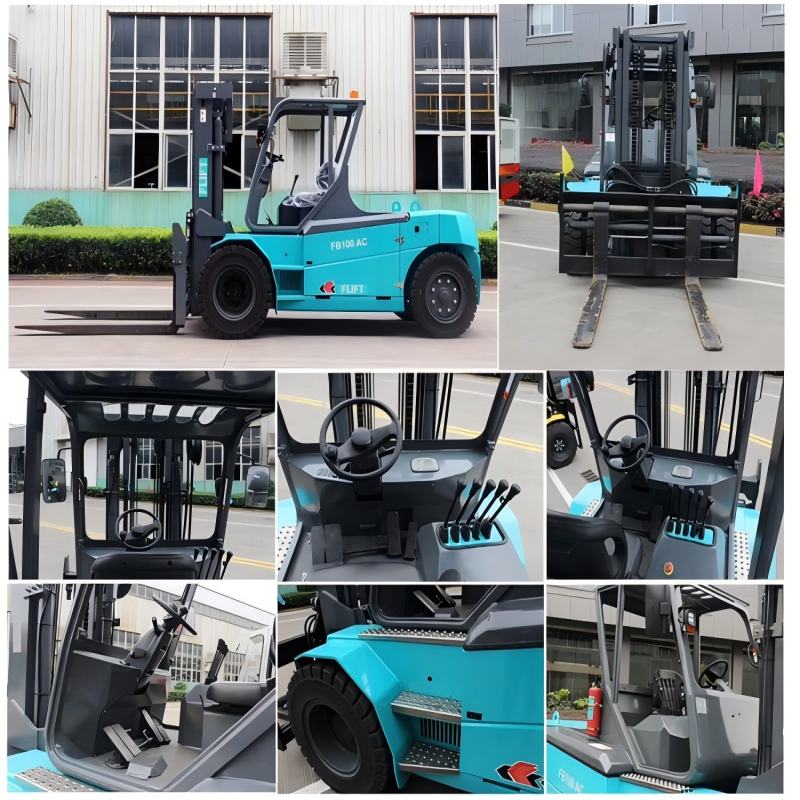

DETAILS FIGURE

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

12t Lithium high capacity forklift
