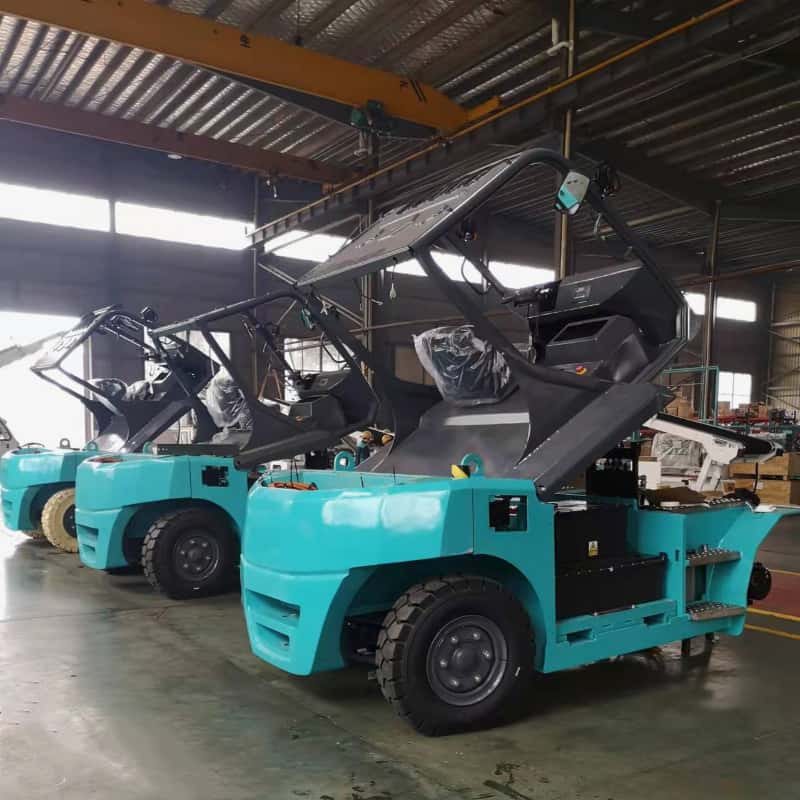

10t electric forklift truck
Power TypeElectric
Driving TypeSeated
Rated Capacity10000KG
Service Weight16710KG
lift Height3000-5000mm
We're here to help:Easy ways to get the answers you need.
- 10 Ton Forklift
- Discover top 10t electric forklift models & prices. Find reliable, powerful solutions for your heavy lifting needs today!
.jpg)
| 10 TON 4-WHEEL ELECTRIC FORKLIFT | ||||||
| GeneraL | 1 | Model | FB100 | |||
| 2 | Power Type | Electric | ||||
| 3 | Rated Capacity | kg | 10000 | |||
| 4 | Load Centre | mm | 600 | |||
| Characreristic & Dimension | 5 | Lift Height | mm | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1520*175*85 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/10° | ||
| 8 | Front Overhang (Wheel Center to fork face) | mm | 750 | |||
| 9 | Tread | F/R | mm | 1650/1700 | ||
| 10 | Ground Clearance (Bottom of mast) | mm | 210 | |||
| 11 | Fork Spread | Min./Max. | 515/2055 | |||
| 12 | Overall Dimension |
Length to face of fork(Without fork) | mm | 4480 | ||
| 13 | Overall Width | mm | 2270 | |||
| 14 | Mast Lowered Height | mm | 2810 | |||
| 15 | Mast Extended Height(With backrest) | mm | 4550 | |||
| 16 | Overall Guard Height | mm | 2650 | |||
| 17 | Turning Radius(outside) | mm | 3850 | |||
| 18 | Min. insecting aisle | mm | 3200 | |||
| Performance | 19 | Speed | Travel(Empty load) | km/h | 15 | |
| 20 | Lifting(Full load) | mm/s | 260 | |||
| 21 | Max. Gradeability | % | 10 | |||
| Chassis | 22 | Tire | Front | 98.00-20 | ||
| 23 | Rear | 8.25-20 | ||||
| 24 | Wheel Base | mm | 2850 | |||
| 25 | Service Weight | kg | 16710 | |||
| Power & Transimission | 26 | Motor | Drive Motor | 2*20(SCHABMULLER) | ||
| 27 | Lift Motor | 2*28(SCHABMULLER) | ||||
| 28 | Battery | Voltage/Capacity | V/Ah | 96/1250 | ||
| 29 | Controller | Manufacturer | CURTIS/INMOTION/ZAPI | |||
| 30 | Type | AC | ||||
| 31 | Operating Pressure for Attachment | Mpa | 17.5 | |||
FEATURES
1,Spacious workplace: Ample leg room helps to provide a relaxed,working environment,keeping the operator relaxed and focused throught the working day for maximum productivity.
2,Adjustable Steering wheel and safety seat.
3,Humanized right-side hydraulic operation handle and amergency power-off button.
4,Super low Non-slip pedal.
5,Full-view mast and fork carriage ensure operator’s excellent operation vision.
6,High-strength overhead guard.
7,The controller is directly fixed in the balanced weight to lead better heat dissipation.
8,Side cover can be quickly removed without any tools.

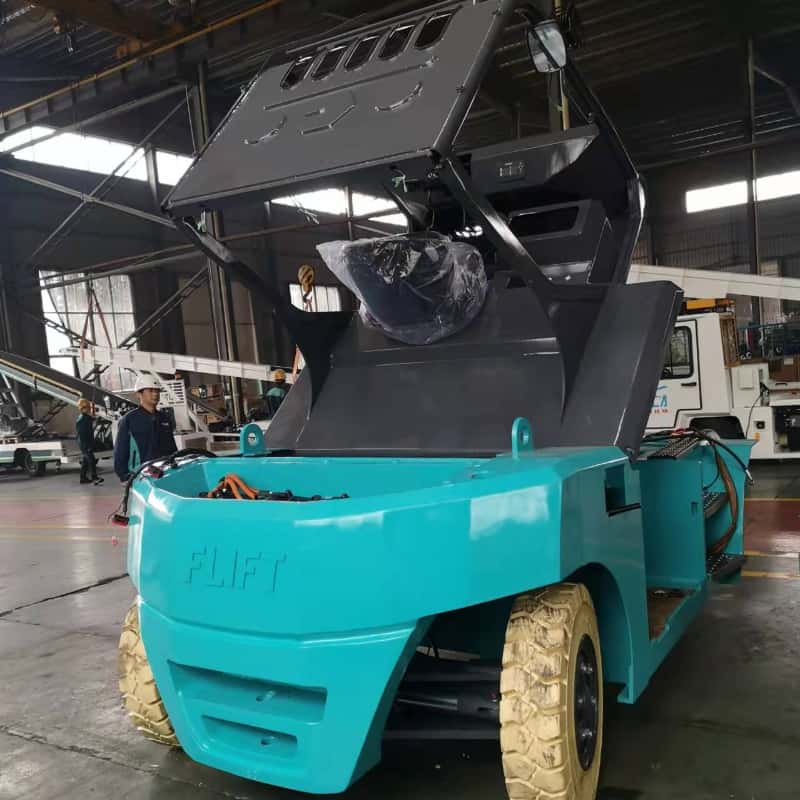

Hood cover open angle ≧90 degree,makes a convenient battery maintennance.
9,Waterproof,dustproof and shockproof LCD instrument.
10,Motor: side-mounted pump motor makes easier maintenance.
DETAIL FIGURE
.jpg)
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
