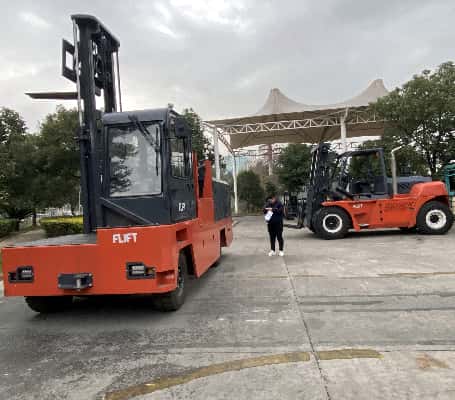

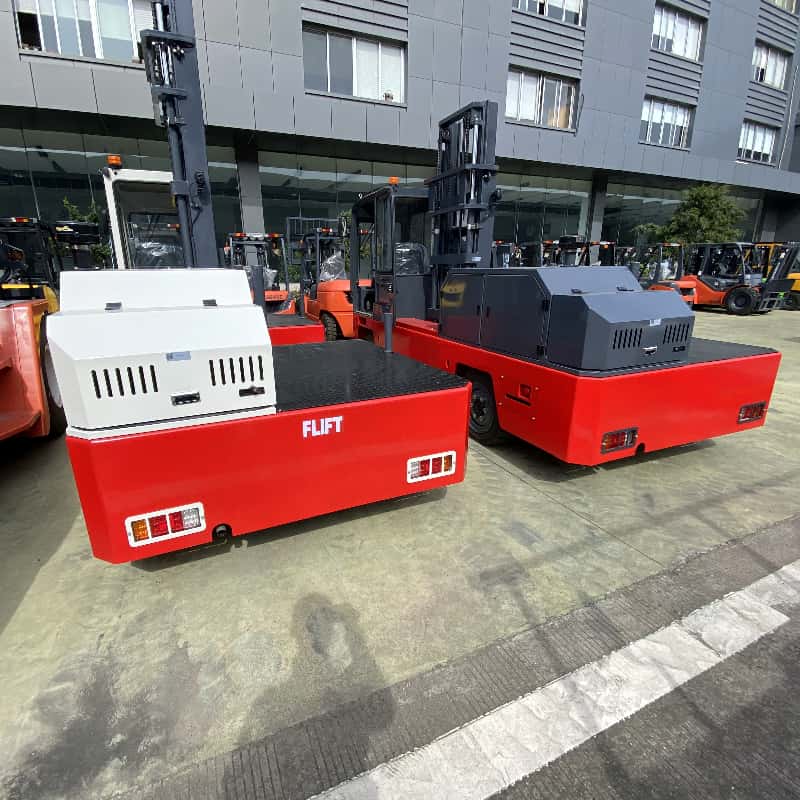

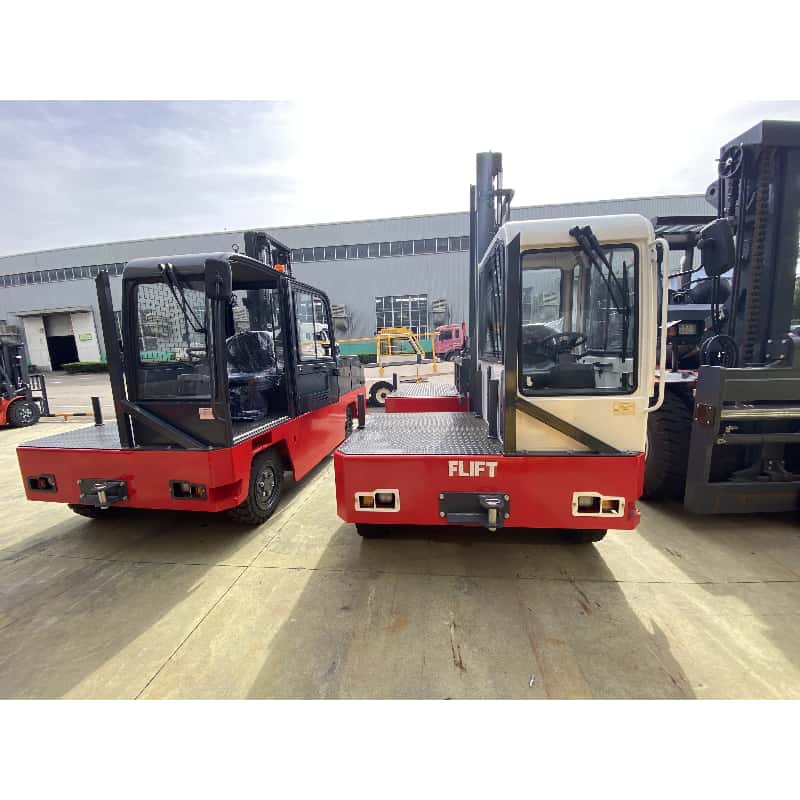

3t Diesel Side Loader Forklift
Lifting Height3600-7000mm
Load Capacity3000kg
Load Centre500mm
Max. Gradeability20%
Platform Size1200*4555mm(LxW)
We're here to help:Easy ways to get the answers you need.
- 3t side loading forklift trucks
- 3T Side Loader Truck by top side loader manufacturers. Enhance your material handling with reliable, high-performance solutions today!
Technical Parameters
|
Rated lift quality (cargo center of gravity off fork wall 0.6m) |
3000kg |
|||
|
Maximum lifting height |
3.55m |
|||
|
Fork free lift height |
0.3m |
|||
|
Maximum lift speed (at full load) |
≥0.3m/s |
|||
|
Running speed |
Forward gear |
20km/h |
||
|
Back gear |
20km/h |
|||
|
Fork Inclination Up / Down |
5°/3° |
|||
|
Minimum turn radius (outermost profile) |
4.3m |
|||
|
Maximum traction |
20.678KN |
|||
|
Climbing Slope |
20% |
|||
|
Minimum ground clearance (full load) |
0.17m |
|||
|
Dimensions |
Long |
4.42m |
||
|
Wide (not counting reversing mirrors) |
2.035m |
|||
|
|
2.55m |
||
|
When the fork is at the highest position |
4.66m |
|||
|
Wheelbase |
2.46m |
|||
|
Tread |
1.6m |
|||
|
The height of the cargo stand（Full load） |
0.92m |
|||
|
The width of the cargo stand |
1.2m |
|||
|
Fork length |
1.2m |
|||
|
Fork Maximum Pitch |
0.94m |
|||
|
Battery |
6-QA type 12V |
|||
|
Tire |
8.25-15-14PR Pressure 7.5kg/cm2 |
|||
|
Service weight |
5300kg |
|||
|
Engine |
Type No. |
4D30G31 |
||
|
Rated power（kw/rpm） |
36.8/2650 |
|||
|
Maximum torque（N.m） |
≥174 |
|||
FEATURES
1.Multiple High-Performance Engine Options. Optional Japanese Isuzu or Mitsubishi and Cummins engine to meet different power requirements.
2.Wide Lifting Height Range. Lifting height from 3600mm to 7000mm, suitable for various working conditions.
3.Customizable Platform Dimensions. Platform width: 1300mm–1800mm,Platform length: 4500mm–6500mm Full customization service available to meet specific needs.
4.Comfortable and Practical Cabin Design. Standard enclosed cabin for safety and comfort. Optional air conditioner and heater for all-weather operation.
5.Flexible Fork Tilt Angles. Fork tilt options: 3°/5° or 6°/6° (Front/Rear) to improve handling efficiency.
6.Strong Mast Reach and Ground Clearance. Mast forward distance: 1200mm, Ground clearance: 160–205mm, ideal for different terrain conditions.
7.Excellent Gradeability. Maximum gradeability of 20% for smooth operation on slopes.
APPLICATION
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
