Latest Trends In 7 Ton Diesel Side Forklift Technology And Design

Technical Parameters

Specification of 7Ton Side Loader Forklift
Rated Capacity				7000 ㎏
Maximum lifting height ( Duplex mast )				3000mm
Fork free lift height				400mm
Maximum lift speed (full load)				≥0.25m/s
Travel Speed	Good road surface		Forward I. Block	10.5km/h
			Forward II Block	31.8km/h
			Back off	10.5km/h
Fork Inclination F/ R				3°/ 5°
Minimum turn radius (outside)				4450mm
Maximum traction				28.4KN
Climbing Slope				18%
Minimum ground clearance（Full）				180mm
Platform Width				1300mm
Platform Length				5000mm
Overall Dimention	Length			5000mm
	Width（No reversing mirrors）			2100mm
	High	When the fork is at the lowest position		2550mm
When the fork is at the highest position				4350mm
Wheelbase				2700mm
Tread				1715mm
Fork Size (LxWxT)				1520mm×150mm×60mm
Mast Reach Distance				1300mm
Battery (2 pieces)				(12V/80AH)
Tire			Front	2x9.00-16-14PR
			Rear	4x9.00-16-14PR
Service Weight				8800kg

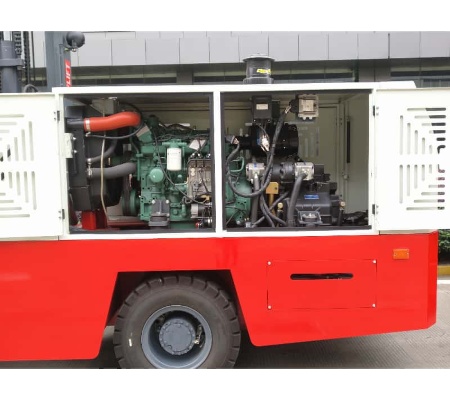

Engine			Brand	Isuzu 6BG1 (Japanese) (6 ylinder diesel engine )
			Rated power （kw/rpm）	82.4/2000
			Rated torque /speed（N.m/rpm）	416.8/1500
			Displacement	6494cc
			Emission Standard	EU II
			Fuel Tank Capacity	175 L
Automatic Transmission			Stage FWD/RVS	2 / 2
Operation Pressure for Attachment			Mpa	15

FEATURES

1.Multiple High-Performance Engine Options. Optional Japanese Isuzu or Mitsubishi and Cummins engine to meet different power requirements.
2.Wide Lifting Height Range. Lifting height from 3600mm to 7000mm, suitable for various working conditions.
3.Customizable Platform Dimensions. Platform width: 1300mm–1800mm,Platform length: 4500mm–6500mm Full customization service available to meet specific needs.
4.Comfortable and Practical Cabin Design. Standard enclosed cabin for safety and comfort. Optional air conditioner and heater for all-weather operation.
5.Flexible Fork Tilt Angles. Fork tilt options: 3°/5° or 6°/6° (Front/Rear) to improve handling efficiency.
6.Strong Mast Reach and Ground Clearance. Mast forward distance: 1200mm, Ground clearance: 160–205mm, ideal for different terrain conditions.
7.Excellent Gradeability. Maximum gradeability of 20% for smooth operation on slopes.

APPLICATION

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.

Inquiry

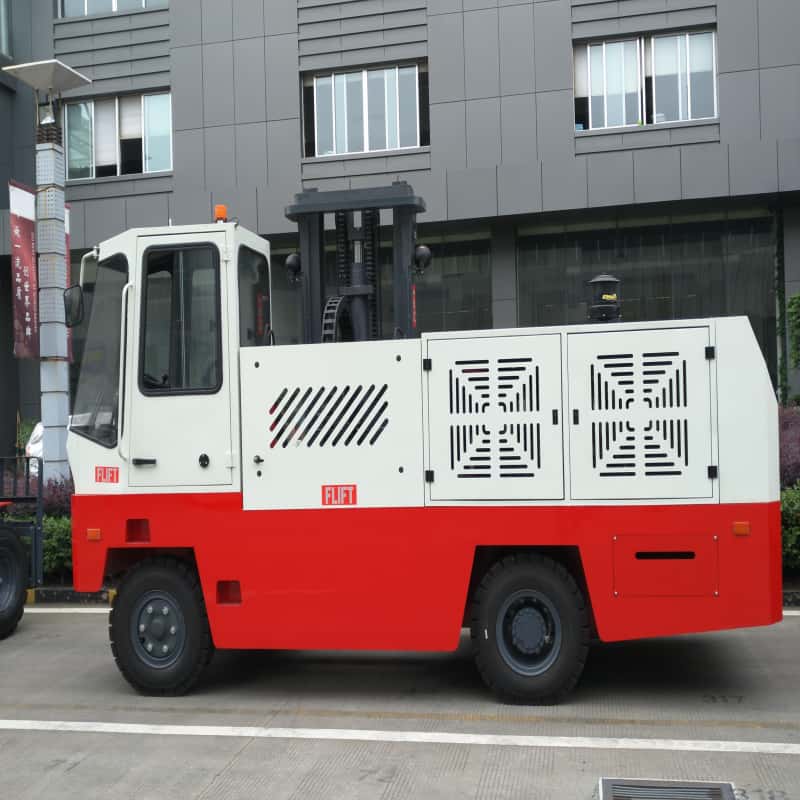

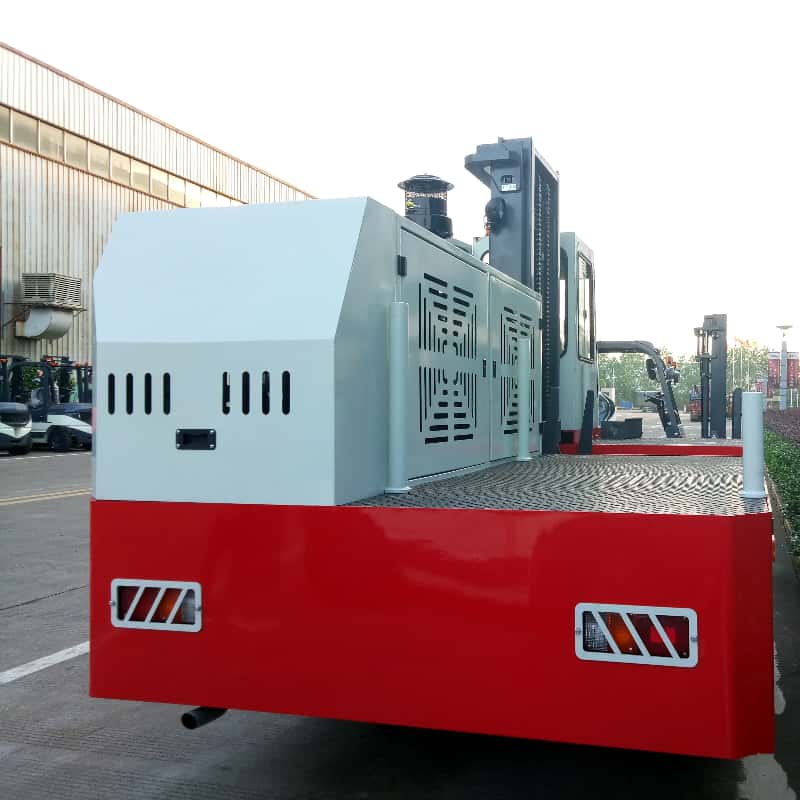

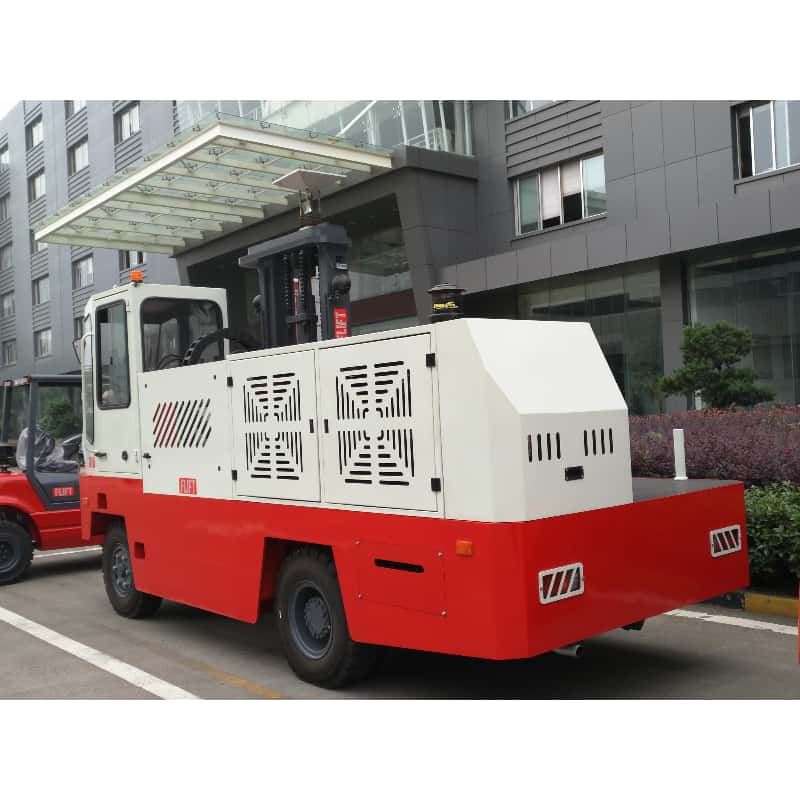

7 Ton Diesel side loader truck
