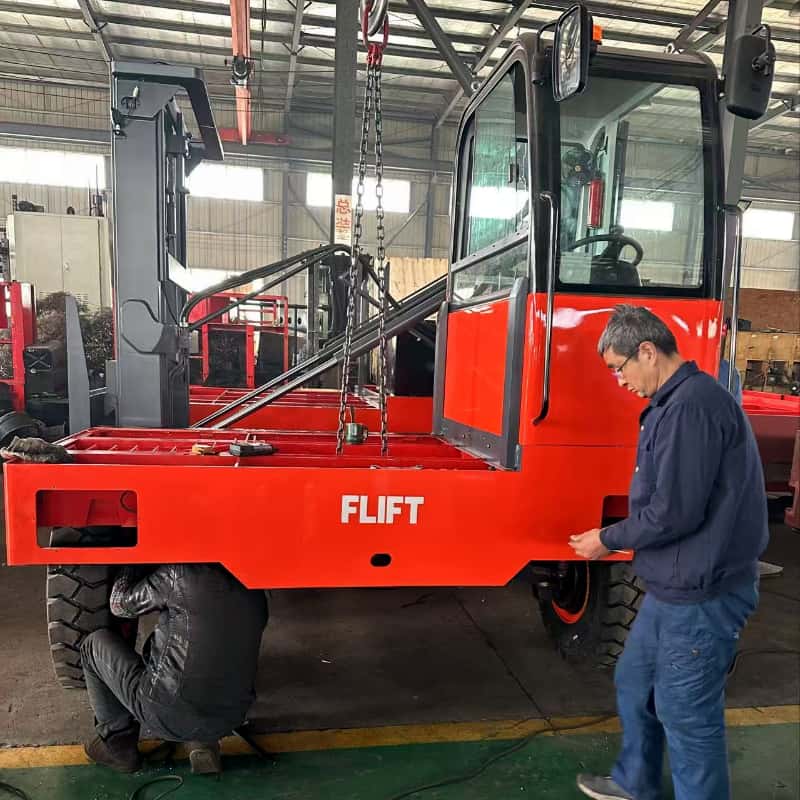

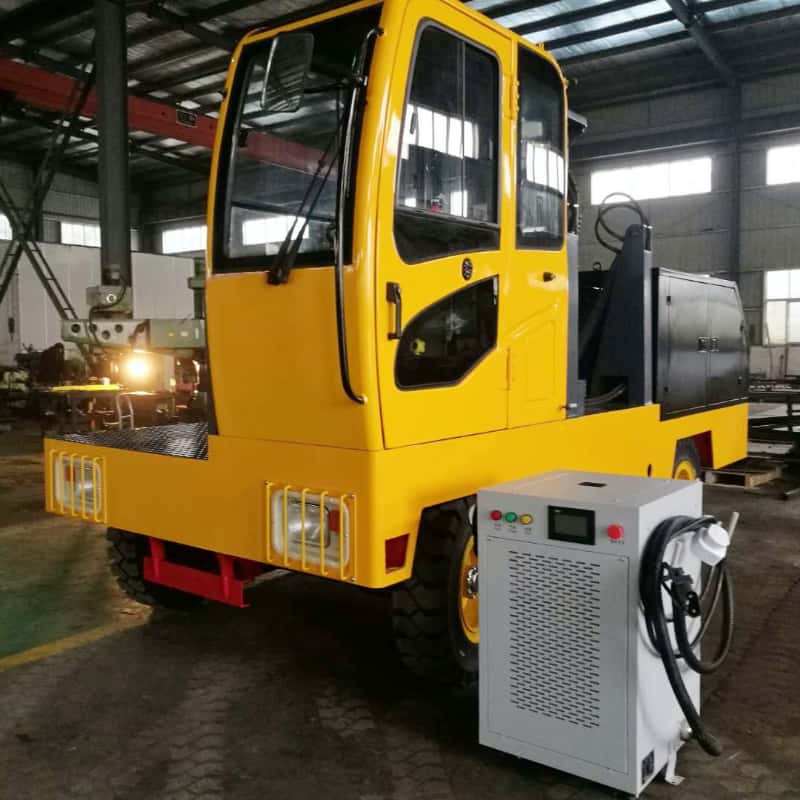

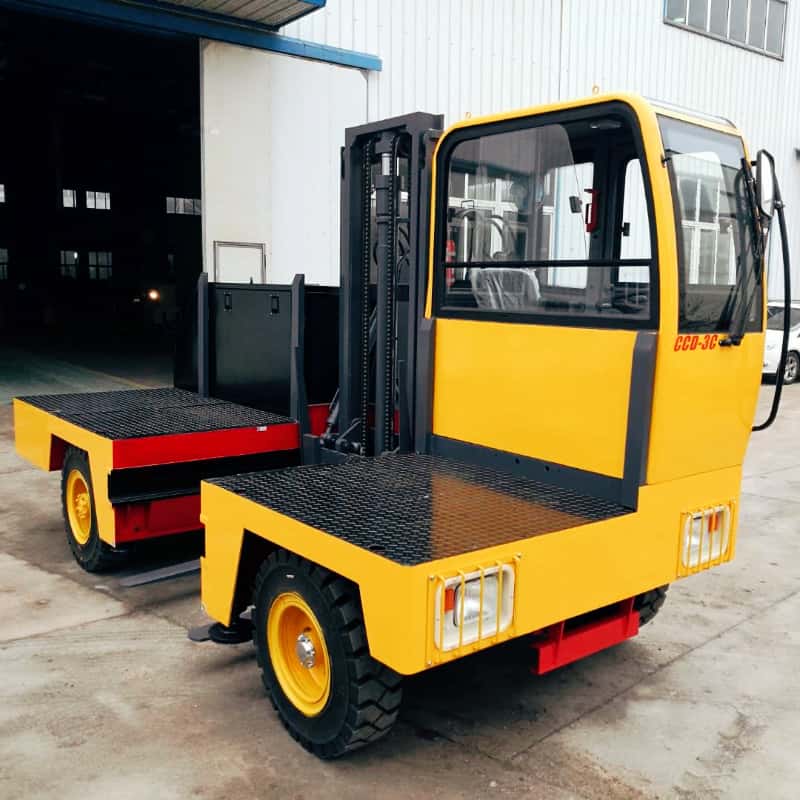

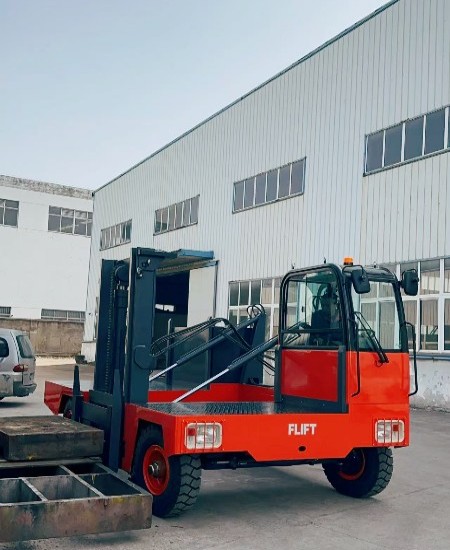

3t-7ton Battery-Powered Sideloader Forklift for Timber, Steel & Long Materials

Technical Parameters

3ton-7ton Electric Side Loader Truck Specification
Model			CCD-70A	CCD-60A	CCD-50A	CCD-40A	CCD-30A
Load capacity			7000kg	6000kg	5000kg	4000kg	3000kg
load centre			600mm	600mm	600mm	600mm	600mm
Max.lift weight			3.0m	3.55m	3.55m	3.50m	3.50m
Fork free lift height			0.28m	0.40m	0.40m	0.30m	0.3m
Max.lift speed			0.23m/s	0.23m/s	0.23m/s	0.25m/s	0.25m/s
Max.traveling speed			15km/h	14km/h	14km/h	13/15km/h	13/15km/h
Fork tilt anger (front/rear)			5°/3°	5°/3°	5°/3°	5°/3°	5°/3°
Min.turning radius			4.45m	4.45m	4.45m	4.30m	4.30m
Gradeability (laden)			≥13%	≥12%	≥13%	≥13%	≥13%
Min.ground clearance (laden)			0.18m	0.18m	0.18m	0.17m	0.17m
Overall Dimension	Length		4.65m	4.65m	4.65m	4.45m	4.45m
	Width (Without the rear mirror)		2.10m	2.10m	2.10m	2.03m	2.03m
	Height	Fork in the lowest Position	2.55m	2.88m	2.8m	2.55m	2.55m
	Height	Fork in the highest Position	4.36m	4.91m	4.91m	4.66m	4.66m
Wheel base			2.65m	2.650m	2.650m	2.460m	2.460m
Truck width			1.715m	1.715m	1.715m	1.60m	1.60m
Platform height (Laden)			0.98m	0.98m	0.98m	0.94m	0.94m
Platform width			1.3m	1.3m	1.30m	1.20m	1.20m
Fork length			1.52m	1.22m	1.22m	1.22m	1.22m
Max.fork spacing			1.04m	1.04m	1.04m	1.02m	0.94m
Tyres size			9.00-16-14PR	9.00-16-14PR	9.00-16-14PR	9.00-16-14PR	8.25-15-14PR
Tyres size			Dual Rear Tires	9.00-16-14PR	9.00-16-14PR	9.00-16-14PR	8.25-15-14PR
Service Weight			9000kg	8800kg	8700kg	5800kg	5300kg
Battery Cpacity（V/AH) （Lead-Acid battery)			80V/800Ah	80V/660Ah	80V/600Ah	80V/600Ah	80V/550Ah
Drive motor			23kw	23kw	23kw	16kw	16kw
Pump motor			25kw	25kw	25kw	13.5kw	13.5kw
Controller system			American Curtis	American Curtis	American Curtis	American Curtis	American Curtis
Intelligent charging machine			80V/200A	80V/200A	80V/200A	80V/200A	80V/200A

FEATURES

1.High-Capacity Battery Options. Optional Lithium Iron Battery to meet different requirements.
2.Wide Lifting Height Range. Lifting height from 3600mm to 7000mm, suitable for various working conditions.
3.Electric side loaders produce zero emissions, making them environmentally friendly and suitable for indoor use.
4.Electric models generally have lower operating and maintenance costs compared to internal combustion forklifts..
5.Electric Side Loading Forklift Truck operate quietly, reducing noise pollution in the workplace.
6.Strong Mast Reach and Ground Clearance. Mast forward distance: 1200mm, Ground clearance: 160–205mm, ideal for different terrain conditions.
7.Excellent Gradeability. Maximum gradeability of 15% for smooth operation on slopes.

APPLICATION

After-sales Service

24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.

12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.Our dedicated team of sales professionals and technical experts is always ready to guide you in choosing the perfect forklift for your needs.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
