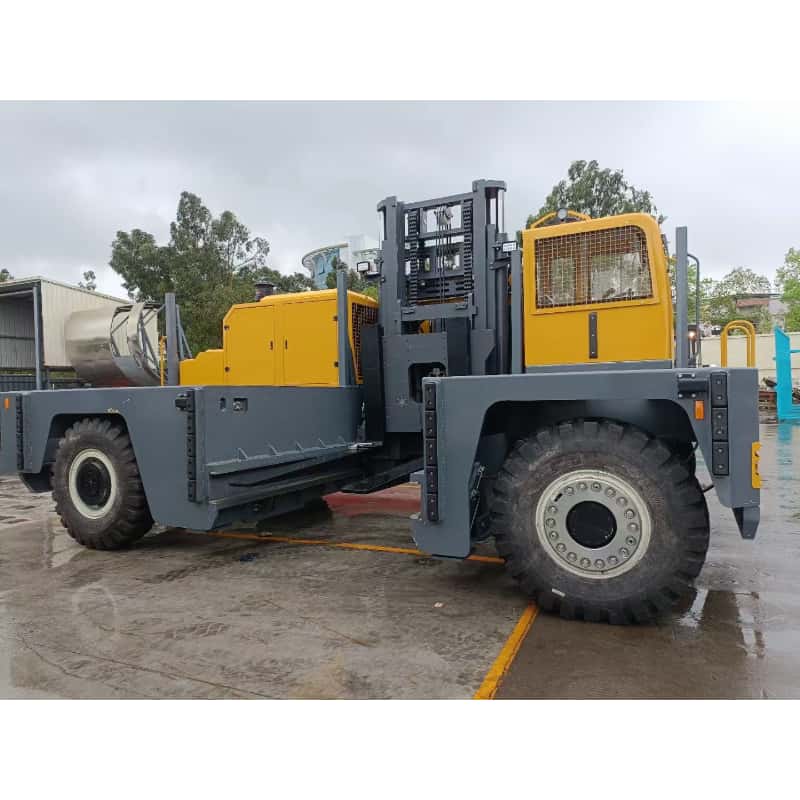

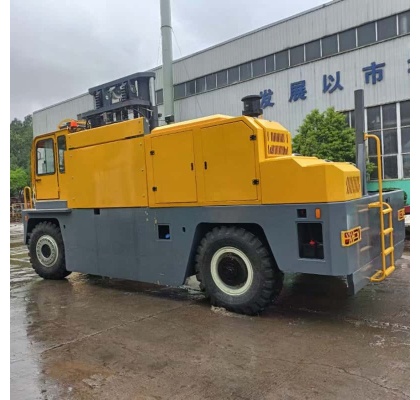

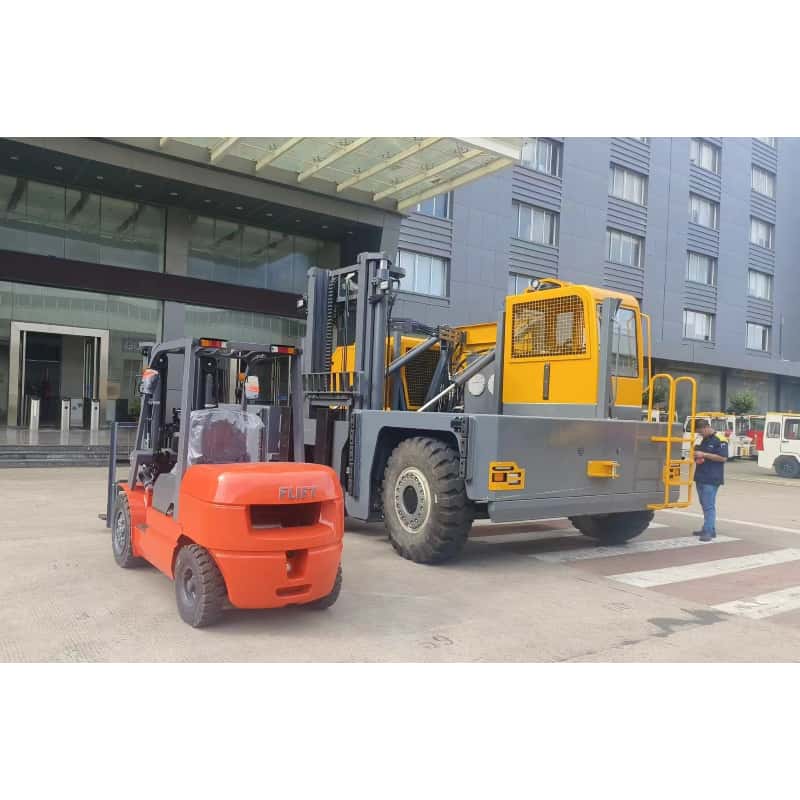

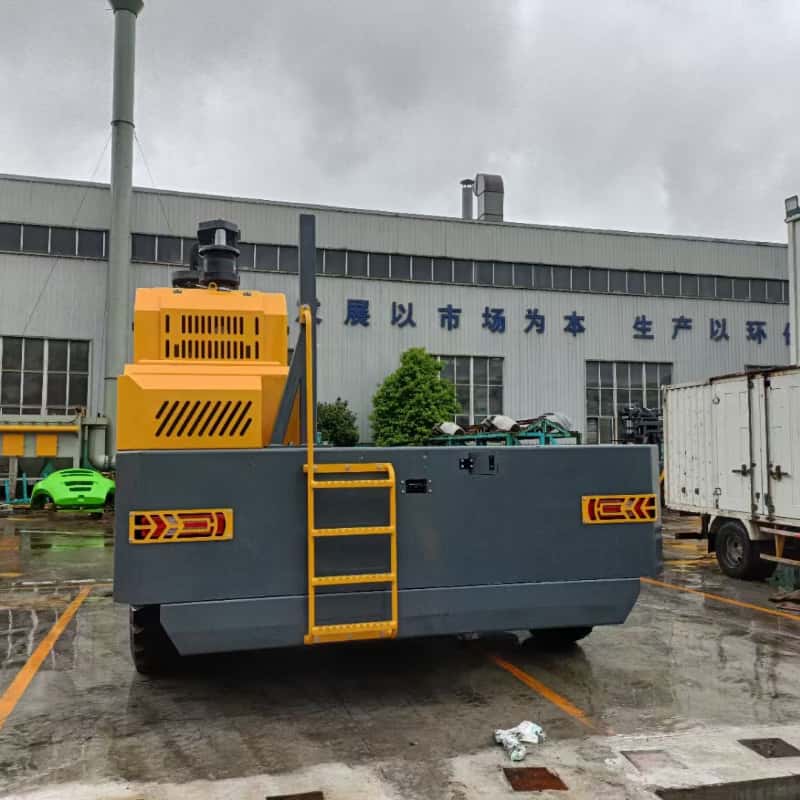

20ton diesel side loader truck
Load Capacity20000kg
Mast Lifting Height 3500-5000mm
Platform Size7800mm*3570mm(LxW）
Service Weight32000kg
Max. Gradeability (Full Load)20%
We're here to help:Easy ways to get the answers you need.
- Heavy duty side loading forklift
- Side loader forklift 20t delivers robust power for heavy duty applications. Explore our diesel side loading forklift for superior efficiency.
Technical Parameters
|
20T DIESEL SIDE LOADER FORKLIFT SPECIFICATION |
||||
|
1 |
Model |
|
|
FDS200 |
|
2 |
Power Type |
|
|
Diesel |
|
3 |
Driving Mode |
|
|
Seated |
|
4 |
Rated Load |
|
kg |
20000 |
|
5 |
Load Centre |
|
mm |
1250 |
|
6 |
Service Weight |
|
kg |
32000 |
|
7 |
Tyre Type(Front/Rear) |
|
|
Pneumatic Tire |
|
8 |
Wheel NumberX=Drive Wheel (Front/Rear) |
|
|
2X/2 |
|
9 |
Tyre Size(Front) |
|
|
14.00-24-32PR |
|
10 |
Tyre Size(Rear) |
|
|
14.00-24-32PR |
|
11 |
Front Tread |
S |
mm |
3215 |
|
12 |
Rear Tread |
P |
mm |
3200 |
|
13 |
Wheelbase |
L5 |
mm |
4850 |
|
14 |
Lift Height |
h3 |
mm |
3500 |
|
15 |
Fork Size (L×W×T) |
|
mm |
2500×250×110 |
|
16 |
Mast Tilt Angle(F/r) |
a/β |
o |
5/8 |
|
17 |
Mast Lowered Height |
h1 |
mm |
3690 |
|
18 |
Mast Extended Height |
h4 |
mm |
5600 |
|
19 |
Fork Spread |
R |
mm |
1050-1690 |
|
20 |
Length To Face Of Fork |
L |
mm |
7800 |
|
21 |
Overall Width |
B |
mm |
3780 |
|
22 |
Platform Width |
B2 |
mm |
3570 |
|
23 |
Overhead Guard Height |
h5 |
mm |
2450 |
|
24 |
Platform Height |
h7 |
mm |
1640 |
|
25 |
Distance From Roof Of Seat |
|
mm |
1030 |
|
26 |
Turning Radius |
Wa |
mm |
7745 |
|
27 |
Turning Radius(Inside) |
Wb |
mm |
/ |
|
28 |
Ground Clearance |
m1 |
mm |
295 |
|
29 |
Front Overhang |
L3 |
mm |
1200 |
|
30 |
Rear Overhang |
L4 |
mm |
1750 |
|
31 |
Max.Travel Speed (Full Load/No Load) |
|
km/h |
25/28 |
|
32 |
Lifting Speed (Full Load/no Load) |
|
mm/s |
300/280 |
|
33 |
Lowering Speed (Full Load/No Load) |
|
mm/s |
340/470 |
|
34 |
Max.Removal Speed(Full Load/No Load) |
|
mm/s |
110/160 |
|
35 |
Gradient (Full Load) |
|
% |
20 |
|
36 |
Battery (Voltage/Capacity) |
|
V/Ah |
2×12/120 |
|
37 |
Model |
|
|
Cummins L9 |
|
38 |
Rated Ourput/r.p.m |
|
kw/rpm |
180/2200 |
|
39 |
Rated Torque/r.p.m |
|
Nm/rpm |
1245/1300 |
|
40 |
No.Of Cylinder |
|
|
6 |
|
41 |
Bore X Stroke |
|
|
114×145 |
|
42 |
Displacement |
|
L |
8.9 |
|
43 |
Emission Standard |
|
|
Chinese IV |
|
44 |
Fuel Tank Capacity |
|
L |
250 |
|
45 |
Type |
|
|
Hydraulic |
|
46 |
Stage Fwd/rvs |
|
|
3/3 |
|
47 |
Transmission |
|
|
3/3Powershift |
|
48 |
Operating Pressure |
|
Mpa |
20 |
FEATURES
1.Multiple High-Performance Engine Options. Optional Japanese Isuzu or Mitsubishi and Cummins engine to meet different power requirements.
2.Wide Lifting Height Range. Lifting height from 3500-5000mm, suitable for various working conditions.
3.Customizable Platform Dimensions. Platform width:3570mm,Platform length:7800mm Full customization service available to meet specific needs.
4.Comfortable and Practical Cabin Design. Standard enclosed cabin for safety and comfort. Optional air conditioner and heater for all-weather operation.
5.Flexible Fork Tilt Angles. Fork tilt options: 5°/8° or 6°/6° (Front/Rear) to improve handling efficiency.
6.Strong Mast Reach and Ground Clearance. Mast forward distance: 1500mm, Ground clearance: 295mm, ideal for different terrain conditions.
7.Excellent Gradeability. Maximum gradeability of 20% for smooth operation on slopes.
APPLICATION
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
