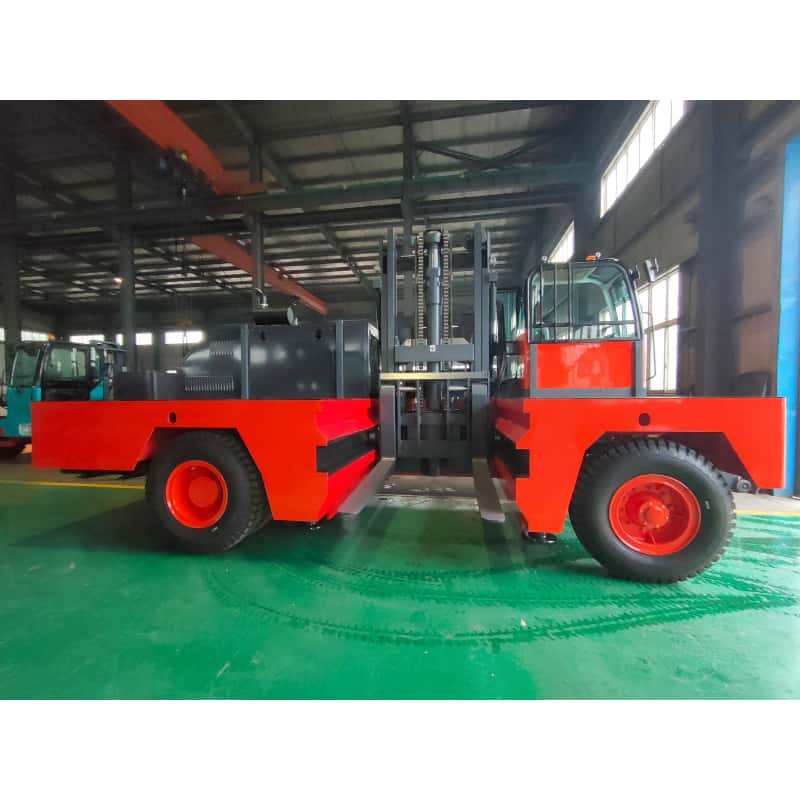

6t Diesel Side Loader Forklift
ModelFDS60
Max.Gradeability20%
Load Capacity6000kg
Load Center600mm
Lift Height3600-7000mm
We're here to help:Easy ways to get the answers you need.
- 6 Ton side loader forklift manufacturers
- Side loader manufacturers: Discover top 6 ton side loading forklift trucks. Compare specs, features, and leading brands for your heavy-duty forklift needs.
Technical Parameters
|
General |
Model |
|
FDS60 |
||
|
Power type |
|
diesel |
|||
|
Rated capacity |
kg |
6000 |
|||
|
Load center |
mm |
600 |
|||
|
Characteristic&dimension |
Lift height |
mm |
3600 |
||
|
Fork size |
L*W*T |
mm |
1220x150x60 |
||
|
Mast tilt angle |
F/R |
deg |
3°/5° |
||
|
Front overhang(wheel center to fork face) |
mm |
700 |
|||
|
Ground clearance(bottom of mast) |
mm |
205 |
|||
|
overall dimension |
L*W*T |
mm |
5180x2100x2950 |
||
|
platform width |
mm |
1300 |
|||
|
platform length |
mm |
5180 |
|||
|
overhead guard height |
mm |
2660 |
|||
|
Turning radius(outside) |
mm |
4250 |
|||
|
Performance |
speed |
Travel(empty load) |
km/h |
18 |
|
|
Lifting(full load) |
mm/s |
230 |
|||
|
Max. gradeability |
% |
20 |
|||
|
Chassis |
Tire |
Front |
|
2X8.25-15-14PR |
|
|
Rear |
|
4X8.25-15-14PR |
|||
|
wheelbase |
mm |
2800 |
|||
|
service weight |
kg |
8700 |
|||
|
Power&transmission |
battery |
voltage/capacity |
v/ah |
(12/ 80)x2 |
|
|
engine |
model |
|
6BG1 |
||
|
manufacture |
|
ISUZU |
|||
|
rated output/r.p.m. |
kw |
82.4/2000 |
|||
|
rated torque/r.p.m. |
n.m |
416/1400-1600 |
|||
|
no. of cylinder |
|
6 |
|||
|
bore x stroke |
mm |
105X125 |
|||
|
displacement |
cc |
6494 |
|||
|
fuel tank capacity |
L |
170 |
|||
|
transmission |
type |
|
hydraulic |
||
|
stage |
FED/RVS |
|
2/2 |
||
|
operating pressure for attachment |
Mpa |
15 |
|||
FEATURES
1.Multiple High-Performance Engine Options. Optional Japanese Isuzu or Mitsubishi and Cummins engine to meet different power requirements.
2.Wide Lifting Height Range. Lifting height from 3600mm to 7000mm, suitable for various working conditions.
3.Customizable Platform Dimensions. Platform width: 1300mm–1800mm,Platform length: 4500mm–6500mm Full customization service available to meet specific needs.

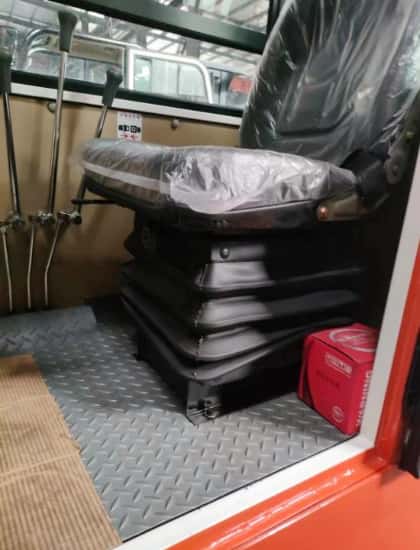

4.Comfortable and Practical Cabin Design. Standard enclosed cabin for safety and comfort. Optional air conditioner and heater for all-weather operation.
5.Flexible Fork Tilt Angles. Fork tilt options: 3°/5° or 6°/6° (Front/Rear) to improve handling efficiency.
6.Strong Mast Reach and Ground Clearance. Mast forward distance: 1200mm, Ground clearance: 160–205mm, ideal for different terrain conditions.
7.Excellent Gradeability. Maximum gradeability of 20% for smooth operation on slopes.
APPLICATION
After-sales Service
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
